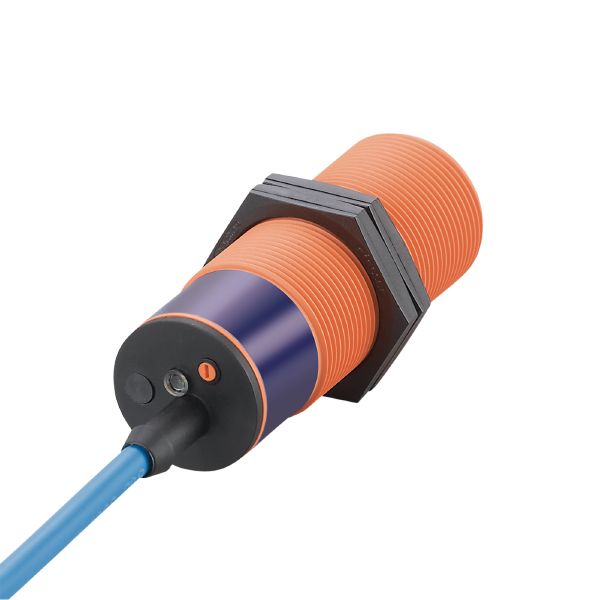

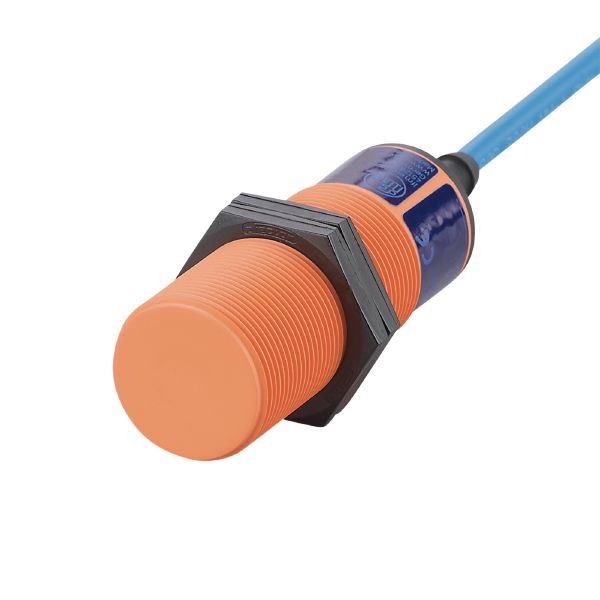

Ifm KI5030 Capacitive Namur Sensor

Ifm KI5030 Capacitive Namur Sensor

SKU IF-KI5030-E
$192.22 USD - $192.22 USD
$192.22 USD
$192.22 USD - $192.22 USD
$192.22 USD
Availability:
0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Product characteristics
Electrical design NAMUR
Output function normally closed
Sensing range [mm] 15
Housing Threaded type
Dimensions [mm] M30 x 1.5 / L = 81
Electrical data
Connection at circuit amplifier yes
Switching amplifiers connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW
Nominal voltage DC [V] 8.2; (1kΩ)
Supply voltage DC [V] 7.5...15
Current consumption [mA] < 1; (disabled; conductive: > 2,2)
Protection class II
Measuring principle capacitive
Outputs
Electrical design NAMUR
Output function normally closed
Switching frequency DC [Hz] 40
Short-circuit proof yes
Monitoring range
Sensing range [mm] 15
Sensing range adjustable yes
Factory setting sensing range [mm] 15
Real sensing range Sr [mm] 15 ± 10 %
Accuracy / deviations
Correction factor glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2
Hysteresis [% of Sr] 1...15
Switch-point drift [% of Sr] -15...15
Operating conditions
Ambient temperature [°C] -20...60
Protection IP 65
Tests / approvals
Approval DMT 01 ATEX E 020; TIIS TC15627; IECEx BVS 06.0003
ATEX marking II 1G Ex ia IIB T6 Ga
II 1D Ex ia IIIC T90°C Da
EMC
IEC 60947-5-2
MTTF [years] 841
Safety classification
Max. internal capacitance [nF] 375
Max. internal inductance [µH] 1
Mechanical data
Weight [g] 212.5
Housing Threaded type
Mounting non-flush mountable
Dimensions [mm] M30 x 1.5 / L = 81
Thread designation M30 x 1.5
Material PBT
Displays / operating elements
Display
Switching status 1 x LED, yellow
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Cable: 2 m, PVC; 2 x 0.5 mm²
