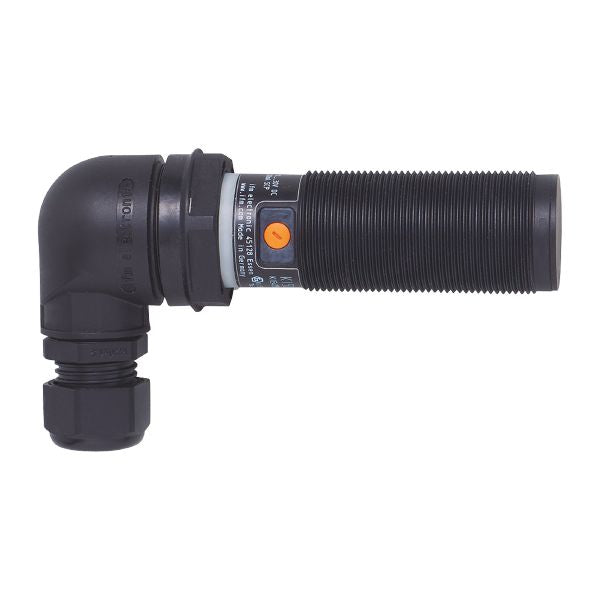

Ifm KI001A Capacitive Sensor

Ifm KI001A Capacitive Sensor

SKU IF-KI001A-E
$330.00 USD - $330.00 USD
$330.00 USD
$330.00 USD - $330.00 USD
$330.00 USD
Availability:
0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Product characteristics
Output function normally open / closed; (selectable)
Sensing range [mm] 15
Housing Threaded type
Dimensions [mm] M30 x 1.5 / L = 125
Electrical data
Operating voltage [V] 30...250 AC / 20...250 DC
Protection class II
Reverse polarity protection yes
Measuring principle capacitive
Outputs
Output function normally open / closed; (selectable)
Max. voltage drop switching output DC [V] 8
Max. voltage drop switching output AC [V] 10
Minimum load current [mA] 5
Max. leakage current [mA] 2.5 (250 V AC) / 1.7 (110 V AC) / 1.5 (24 V DC)
Permanent current rating of switching output AC [mA] 100; (150 (...40 °C))
Permanent current rating of switching output DC [mA] 100; (150 (...40 °C))
Short-time current rating of switching output [mA] 1000; (20ms / 0,5Hz)
Switching frequency AC [Hz] 10
Switching frequency DC [Hz] 10
Notes on switching frequency [Hz]
only for resistive loads; 2 Hz for utilization category AC-140
Short-circuit proof no
Overload protection no
Monitoring range
Sensing range [mm] 15
Sensing range adjustable yes
Factory setting sensing range [mm] 15
Real sensing range Sr [mm] 15 ± 10 %
Accuracy / deviations
Correction factor glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2
Hysteresis [% of Sr] 1...15
Switch-point drift [% of Sr] -20...20
Operating conditions
Ambient temperature [°C] -20...60
Protection IP 65; IP 67
Tests / approvals
ATEX marking II 3D Ex tc IIIC T90°C Dc X
EMC
EN 61000-4-2 ESD kV / 8 kV AD
EN 61000-4-3 HF radiated 3 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-5 Surge 1 kV line to line, Ri: 2 Ohm
EN 61000-4-6 HF conducted 3 V
EN 55011 class B
MTTF [years] 305
Mechanical data
Weight [g] 156.5
Housing Threaded type
Mounting non-flush mountable
Dimensions [mm] M30 x 1.5 / L = 125
Thread designation M30 x 1.5
Material PBT; PA
Displays / operating elements
Display
Switching status 1 x LED, yellow
Electrical connection
Required protection miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting; Place the fuse outside the hazardous area.
Accessories
Items supplied
lock nuts: 2
Remarks
Remarks
Recommendation: check the unit for reliable function after a short circuit.
Pack quantity 1 pcs.
Electrical connection
Connection terminals: 0.34...2.5 mm²; Cable sheath: Ø 5...9 mm; Cable gland: M20 X 1.5
