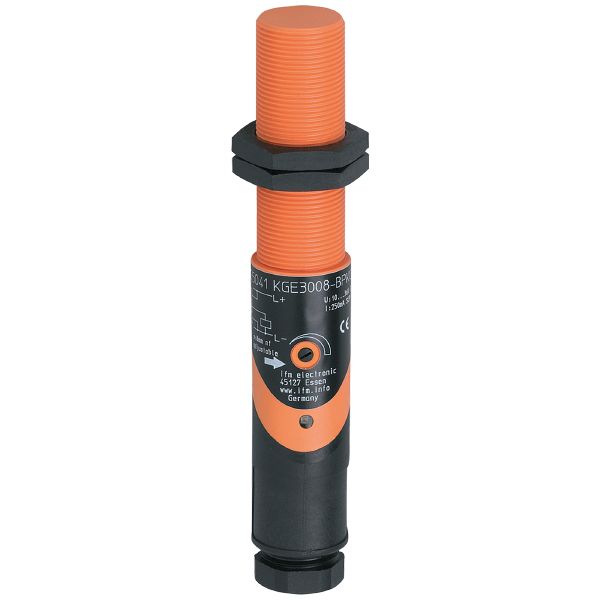

Ifm KG5041 Capacitive Sensor

Ifm KG5041 Capacitive Sensor

SKU IF-KG5041-E
$275.56 USD - $275.56 USD
$275.56 USD
$275.56 USD - $275.56 USD
$275.56 USD
Availability:
0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Product characteristics
Electrical design PNP
Output function normally open
Sensing range [mm] 8
Housing Threaded type
Dimensions [mm] M18 x 1 / L = 110
Electrical data
Operating voltage [V] 10...36 DC
Current consumption [mA] < 10 (24 V) / < 15 (36 V)
Protection class II
Reverse polarity protection yes
Measuring principle capacitive
Outputs
Electrical design PNP
Output function normally open
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 250
Switching frequency DC [Hz] 50
Short-circuit proof yes
Overload protection yes
Monitoring range
Sensing range [mm] 8
Sensing range adjustable yes
Factory setting sensing range [mm] 8
Real sensing range Sr [mm] 8 ± 10 %
Operating distance [mm] 0...6.5
Accuracy / deviations
Correction factor glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2
Hysteresis [% of Sr] 1...15
Switch-point drift [% of Sr] -15...15
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 65
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 637
Mechanical data
Weight [g] 81.5
Housing Threaded type
Mounting non-flush mountable
Dimensions [mm] M18 x 1 / L = 110
Thread designation M18 x 1
Material PBT; PC
Displays / operating elements
Display
Switching status 1 x LED, yellow
Accessories
Items supplied
lock nuts: 2
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection terminals: ...2.5 mm²; Cable sheath: Ø 4.5...10 mm; Cable gland: M16 X 1.5
