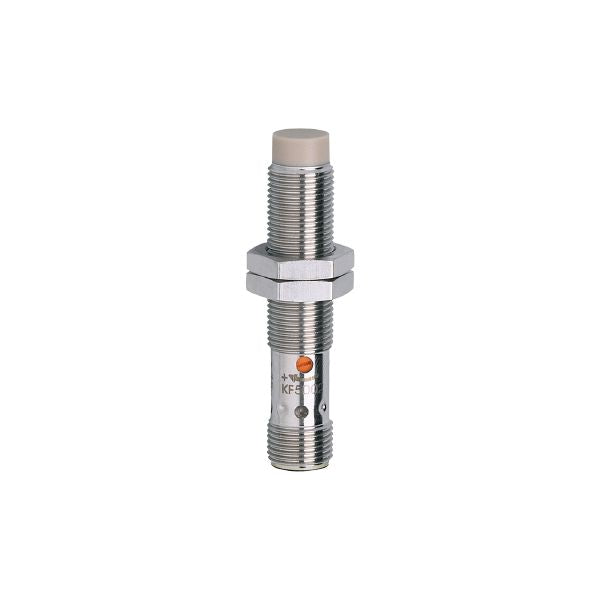

Ifm KF5002 Capacitive Sensor

Name: Ifm KF5002 Capacitive Sensor
Availability: BackOrder

SKU IF-KF5002-E

$185.56 USD - $185.56 USD

$185.56 USD

$185.56 USD - $185.56 USD

$185.56 USD

Availability:

0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

Product characteristics

Electrical design	PNP
Output function	normally open
Sensing range [mm]	3...12
Housing	Threaded type
Dimensions [mm]	M12 x 1 / L = 61

Application

Media	dry bulk material; liquids

Electrical data

Operating voltage [V]	10...36 DC; (cULus - Class 2 source required)
Current consumption [mA]	< 12
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	50
Short-circuit proof	yes
Overload protection	yes

Monitoring range

Sensing range [mm]	3...12
Sensing range adjustable	yes
Factory setting sensing range [mm]	8
Real sensing range Sr [mm]	8 ± 10 %

Accuracy / deviations

Correction factor	glass: 0.6 / water: 1 / ceramics: 0.5 / PVC: 0.4
Hysteresis [% of Sr]	1...15
Switch-point drift [% of Sr]	-20...20

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 65
Increased immunity	yes

Tests / approvals

EMC

EN 60947-5-2

MTTF [years]

634

Mechanical data

Weight [g]	39.2
Housing	Threaded type
Mounting	non-flush mountable
Dimensions [mm]	M12 x 1 / L = 61
Thread designation	M12 x 1
Material	stainless steel (1.4404 / 316L); PEEK

Displays / operating elements

Display

Switching status

1 x LED, yellow

Accessories

Items supplied

lock nuts: 2

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A
