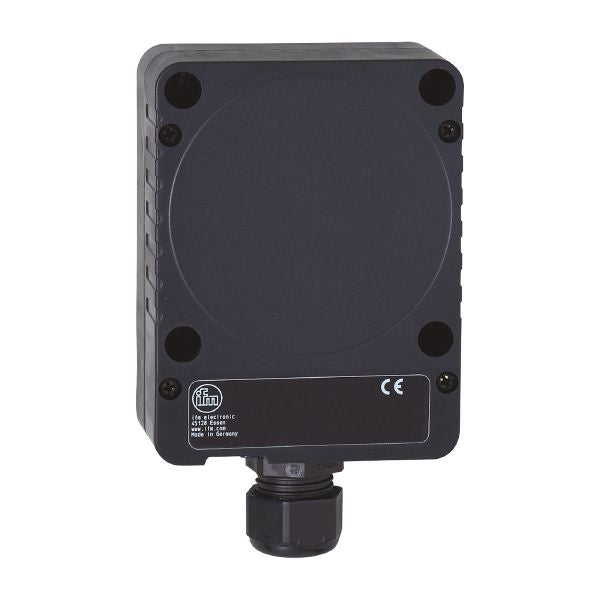

Ifm KD501A Capacitive Sensor

Ifm KD501A Capacitive Sensor

SKU IF-KD501A-E
$460.00 USD - $460.00 USD
$460.00 USD
$460.00 USD - $460.00 USD
$460.00 USD
Availability:
0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Product characteristics
Electrical design PNP
Output function normally open / closed; (selectable)
Sensing range [mm] 60
Housing rectangular
Dimensions [mm] 105 x 80 x 42
Electrical data
Operating voltage [V] 10...36 DC
Current consumption [mA] < 15
Protection class III
Reverse polarity protection yes
Measuring principle capacitive
Outputs
Electrical design PNP
Output function normally open / closed; (selectable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 10
Short-circuit proof yes
Overload protection yes
Monitoring range
Sensing range [mm] 60
Sensing range adjustable yes
Factory setting sensing range [mm] 60
Real sensing range Sr [mm] 60 ± 10 %
Accuracy / deviations
Correction factor glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2
Hysteresis [% of Sr] 1...15
Switch-point drift [% of Sr] -15...15
Operating conditions
Ambient temperature [°C] -20...60
Protection IP 65
Increased immunity yes
Tests / approvals
ATEX marking II 3D Ex tc IIIC T90°C Dc X IP65
EMC
EN 60947-5-2
MTTF [years] 537
Mechanical data
Weight [g] 279.5
Housing rectangular
Mounting non-flush mountable
Dimensions [mm] 105 x 80 x 42
Material PPE modified; PA
Tightening torque [Nm] housing screws: 0,9 Nm; screws: 4 Nm
Displays / operating elements
Display
Switching status 1 x LED, yellow
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection terminals: 0.34...2.5 mm²; Cable sheath: Ø 5...9 mm; Cable gland: M20 X 1.5
