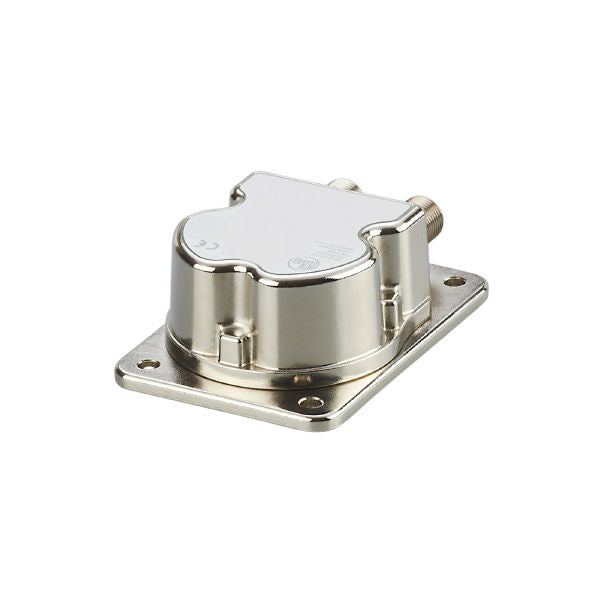

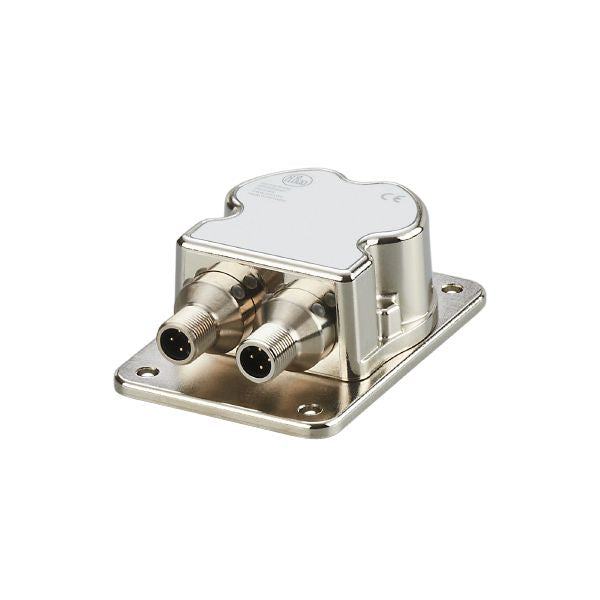

Ifm JN2200 Inclination Sensor

Name: Ifm JN2200 Inclination Sensor
Availability: BackOrder

SKU IF-JN2200-E

$438.89 USD - $438.89 USD

$438.89 USD

$438.89 USD - $438.89 USD

$438.89 USD

Availability:

0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

Product characteristics

Measuring principle	MEMS capacitive
Communication interface	IO-Link

Inclination measurement

Number of measurement axes	2
Angular range [°]	± 180

Application

Function principle	static
Application	High-precision inclination measurement in 2 axes for mobile and industrial applications

Electrical data

Operating voltage [V]	9.2...30 DC; (voltage output: 12...30 DC; IO-Link: 18...30 DC)
Current consumption [mA]	90; (24 V DC, 25 °C)
Max. current consumption [mA]	330; (9,2 V DC; -40 °C)
Protection class	III
Reverse polarity protection	yes
Reverse polarity protection	yes
Power-on delay time [s]	300; (warm-up time; Max. initialization time: 1000 ms)

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2; Number of analog outputs: 2

Outputs

Total number of outputs	4
Output signal	analog signal; switching signal
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / closed; (programmable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	125; (125 mA (85° C); 200 mA (60° C); 250 mA (40° C))
Number of analog outputs	2
Analog current output [mA]	4...20; (in case of a fault: 2 mA)
Max. load [Ω]	220; (220 (9,2…15 V) / 500 (15…30 V))
Analog voltage output [V]	2...10; (in case of a fault: 1 V)
Min. load resistance [Ω]	1000; (10000 (12...13,5 V) / 1000 (13,5...30 V))
Precision analog output [%]	≤ 1
Short-circuit protection	yes
Overload protection	yes

Measuring/setting range

Measuring principle	MEMS capacitive

Inclination measurement

Number of measurement axes	2
Angular range [°]	± 180
Limit frequency [Hz]	0.5...10; (configurable)

Vibration measurement

Measuring range of vibration [g]	16; (± 2; ± 4; ±8 g configurable)
Measuring range of vibration [mm/s]	3200
Frequency range [Hz]	0.1...400
Number of measurement axes	X/Y/Z configurable

Accuracy / deviations

Accuracy [°]	≤ ± 0,5; (absolute)
Hysteresis [°]	≤ ± 0,05
Repeatability [°]	≤ ± 0,1
Resolution [°]	0.05
Temperature coefficient [1/K]	≤ ± 0,02 °

Software / programming

Parameter setting options	angle (X/Y) / vibration (Veff / aPeak); hysteresis / window; Switch points; switching logic; fault indication; self-test; current/voltage output

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9 CDV

Profiles

Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis

SIO mode

yes

Required master port class

Process data analog

Process data binary

Min. process cycle time [ms]

Supported DeviceIDs

Type of operation	DeviceID
default	416

Operating conditions

Ambient temperature [°C]	-40...85
Storage temperature [°C]	-40...85
Protection	IP 65; IP 67; IP 68; IP 69K

Tests / approvals

EMC

DIN EN 61000-4-2 ESD	4 kV CD / 8 kV AD
DIN EN 61000-4-3 HF radiated	10 V/m
DIN EN 61000-4-4 Burst	2 kV
DIN EN 61000-4-6 HF conducted	10 V
DIN EN 55022 class B / CISPR 16-2-3	30 - 1000 MHz
CISPR 25 ECE R 10	30 - 1000 MHz narrowband and broadband
ISO 11452-2 ECE R 10	20 - 2000 MHz / 30 V/m
ISO 7637-2 ECE R 10	pulse 1, 2a, 2b, 3a, 3b, 4, and pulse emission during operation, switching-on, switching-off
ISO 7637-3	- 80 V pulse a / + 80 V pulse b

Shock resistance

DIN EN 60068-2-27	100 g 1 ms / 10000 Impacts per axis (X/Y)
