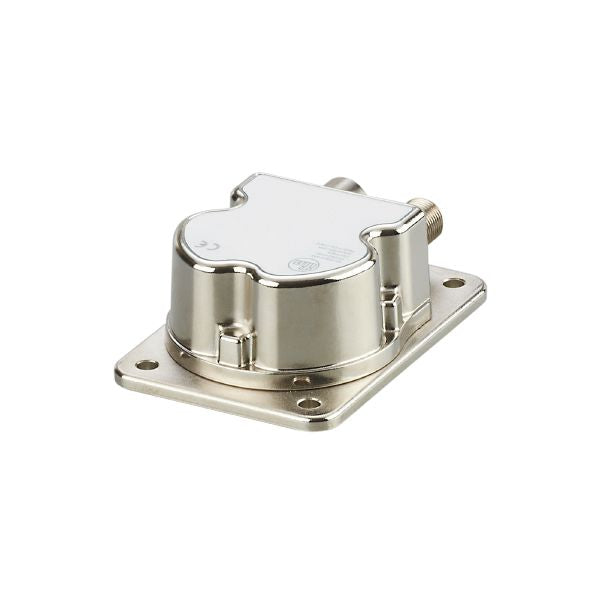

Ifm JN2101 Inclination Sensor

Name: Ifm JN2101 Inclination Sensor
Availability: BackOrder

SKU IF-JN2101-E

$647.78 USD - $647.78 USD

$647.78 USD

$647.78 USD - $647.78 USD

$647.78 USD

Availability:

0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

Product characteristics

Measuring principle	MEMS capacitive
Communication interface	CAN

Inclination measurement

Number of measurement axes	2
Angular range [°]	-45…45

Application

Function principle	static
Application	High-precision inclination measurement in 2 axes for mobile applications

Electrical data

Operating voltage [V]	9.2...30 DC
Current consumption [mA]	70; (24 V DC, 25 °C)
Max. current consumption [mA]	405; (9,2 V DC; -40 °C)
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Reverse polarity protection	yes
Power-on delay time [s]	300; (warm-up time; Max. initialization time: 1000 ms)

Measuring/setting range

Measuring principle	MEMS capacitive

Inclination measurement

Number of measurement axes	2
Angular range [°]	-45…45
Limit frequency [Hz]	0.5...10; (configurable)

Accuracy / deviations

Accuracy [°]	≤ ± 0,01; (absolute)
Hysteresis [°]	≤ ± 0,05
Repeatability [°]	≤ ± 0,01
Resolution [°]	0.01; (configurable)
Temperature coefficient [1/K]	≤ ± 0,0008 °

Interfaces

Communication interface	CAN
Number of CAN interfaces	1
Terminating resistor	yes; (internal ; configurable)

CAN

Protocol

CANopen

Factory settings

Baud rate: 125 kBit/s

node ID: 10

Version

CiA DS301 V4.2.0; DSP-410 V2.0.0; CiA 306 V1.3.0

Operating conditions

Ambient temperature [°C]	-40...85
Storage temperature [°C]	-40...85
Protection	IP 65; IP 67; IP 68; IP 69K

Tests / approvals

EMC

DIN EN 61000-4-2 ESD	4 kV CD / 8 kV AD
DIN EN 61000-4-3 HF radiated	10 V/m
DIN EN 61000-4-4 Burst	2 kV
DIN EN 61000-4-6 HF conducted	10 V
DIN EN 55022 class B / CISPR 16-2-3	30 - 1000 MHz
CISPR 25 ECE R 10	30 - 1000 MHz narrowband and broadband
ISO 11452-2 ECE R 10	20 - 2000 MHz / 30 V/m
ISO 7637-2 ECE R 10	pulse 1, 2a, 2b, 3a, 3b, 4, and pulse emission during operation, switching-on, switching-off
ISO 7637-3	- 80 V pulse a / + 80 V pulse b

Shock resistance

DIN EN 60068-2-27	100 g 1 ms / 10000 Impacts per axis (X/Y)
DIN EN 60068-2-29	30 g 6 ms / 24000 shock (bump)

Vibration resistance

DIN EN 60068-2-64	10...2000 Hz Test VII / random, mounting place car body
DIN EN 60068-2-6	10...500 Hz / 10 g 10 cycles/axis, sine

Salt spray test

DIN EN 60068-2-52

severity level 5 (motor vehicle)

Damp heat

DIN EN 60068-2-30

55 °C cyclic upper temperature / 95 % rh 2 cycles of 24 h

MTTF [years]

372

Standard

Compliant with ECE R 10, rev. 5; ISO 7637-3: 2007-07

Mechanical data

Weight [g]	415.5
Dimensions [mm]	90 x 62 x 33.2
Material	housing: diecast zinc nickel-plated
Mounting orientation	Horizontal

Displays / operating elements

Display

preoperational mode	1 x LED, green
operational mode	1 x LED, green flashing
fault	1 x LED, red

Accessories

Items supplied

Protective cover: 1

Remarks

Pack quantity	1 pcs.

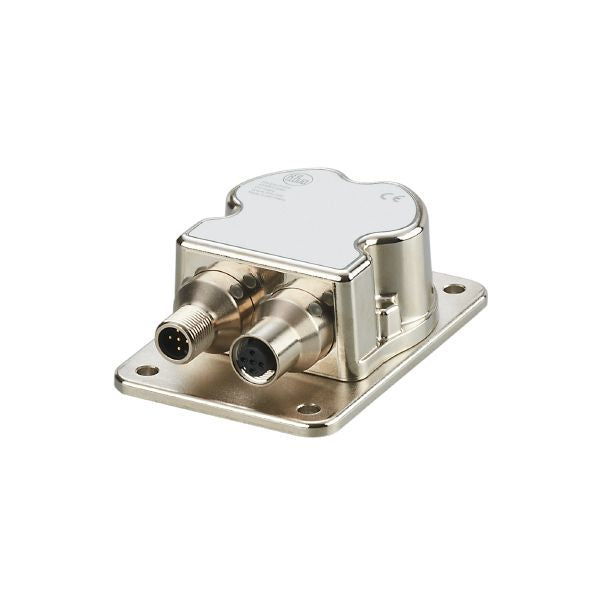

Electrical connection - CAN-In

	Connector: 1 x M12; coding: A

Electrical connection - CAN-Out

	Connector: 1 x M12; coding: A

Diagrams and graphs

measuring and installation direction
