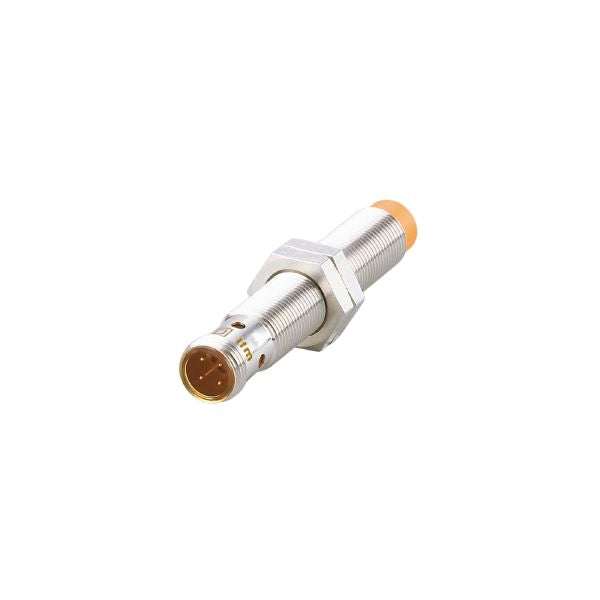

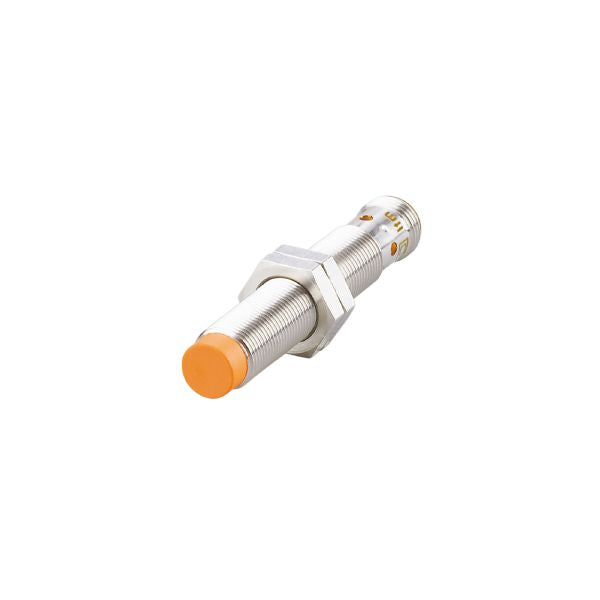

Ifm IF6030 Inductive Analog Sensor With Io-Link

Name: Ifm IF6030 Inductive Analog Sensor With Io-Link
Availability: BackOrder

SKU IF-IF6030-E

$133.89 USD - $133.89 USD

$133.89 USD

$133.89 USD - $133.89 USD

$133.89 USD

Availability:

0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

Product characteristics

Electrical design	PNP/NPN; (configurable)
Output function	normally open / closed; (configurable)
Communication interface	IO-Link
Housing	Threaded type
Dimensions [mm]	M12 x 1 / L = 70

Electrical data

Operating voltage [V]	15...30 DC
Current consumption [mA]	< 30
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN; (configurable)
Output function	normally open / closed; (configurable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	200
Analog current output [mA]	4...20; (linear; gradient: 4,444 mA/mm; for frontal approach and for target made of mild steel: 12 x 12 x 1 mm)
Max. load [Ω]	500; (Ub <=18 V;; Max. load <=400 Ω)
Short-circuit protection	yes
Overload protection	yes

Monitoring range

Measuring range [mm]	0.4...4
Switch point IO-Link [mm]	0.75...3.74

Accuracy / deviations

Correction factor

steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.4 / copper: 0.3

Hysteresis [% of Sr]

3...15

Note on hysteresis

configurable

Linearity error of analog output [%]

± 1; (of the final value of the measuring range)

Repeatability analog output [%]

± 1; (of the final value of the measuring range)

Temperature coefficient [%/K vom MEW]

±0,15

Temperature drift

± 5 %; (of the final value of the measuring range)

Reaction times

Response time [ms]	< 10

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9

Profiles

Smart Sensor: Identification and diagnosis; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Teach Channel

SIO mode

yes

Required master port class

Min. process cycle time [ms]

3.2

IO-Link process data (cyclical)

Function	bit length
process value	16
device status	4
binary switching information	2

IO-Link functions (acyclical)

switching cycles counter; switch-on cycle counter; operating hours counter; internal temperature; application specific tag

Supported DeviceIDs

Type of operation	DeviceID
default	1205

Note

For further information please see the IODD PDF file at "Downloads"

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 65; IP 66; IP 67; IP 68; IP 69K

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
EN 55011	class B

Vibration resistance

EN 60068-2-6 Fc

20 g (10...3000 Hz) / 50 sweep cycles per frequency; 1 octave per minute in 3 axes

Shock resistance

EN 60068-2-27 Ea

100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes

Continuous shock resistance

EN 60068-2-27

40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes

Fast temperature changes

EN 60068-2-14 Na

TA = -25°C; TB = 80°C; t1 = 30 min; t2 = < 10 s 50 cycles

MTTF [years]

216

Embedded software included

yes

UL approval

Ta	-25...60 °C
Enclosure type	Type 1
voltage supply	Limited Voltage/Current
UL approval number	A023
File number UL	E174191

Mechanical data

Thread designation
Weight [g]	34.9
Housing	Threaded type
Mounting	non-flush mountable
Dimensions [mm]	M12 x 1 / L = 70
