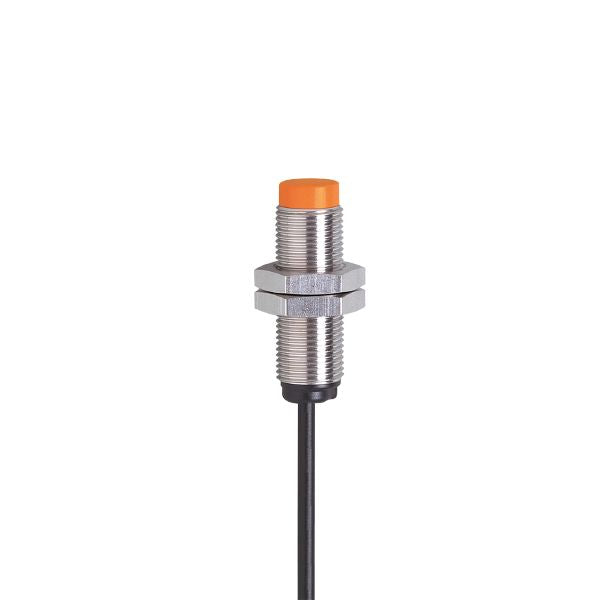

Ifm IF6024 Inductive Sensor

Name: Ifm IF6024 Inductive Sensor
Availability: BackOrder

SKU IF-IF6024-E

$137.22 USD - $137.22 USD

$137.22 USD

$137.22 USD - $137.22 USD

$137.22 USD

Availability:

0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

Product characteristics

Electrical design	PNP
Output function	normally closed
Sensing range [mm]	5.5
Housing	Threaded type
Dimensions [mm]	M12 x 1

Electrical data

Operating voltage [V]	10...36 DC
Current consumption [mA]	< 15
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally closed
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	150
Switching frequency DC [Hz]	800
Short-circuit protection	yes
Type of short-circuit protection	yes (non-latching)
Overload protection	yes

Monitoring range

Sensing range [mm]	5.5
Real sensing range Sr [mm]	5.5 ± 10 %
Operating distance [mm]	0...4.45

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3
Hysteresis [% of Sr]	1...15
Switch-point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	10...50
Protection	IP 67

Tests / approvals

EMC

EN 60947-5-2
EN 55011	class B

MTTF [years]

3069

Mechanical data

Weight [g]	58.2
Housing	Threaded type
Mounting	non-flush mountable
Dimensions [mm]	M12 x 1
Thread designation	M12 x 1
Material	brass white bronze coated; PBT

Accessories

Items supplied

lock nuts: 2

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PVC; 3 x 0.14 mm²
