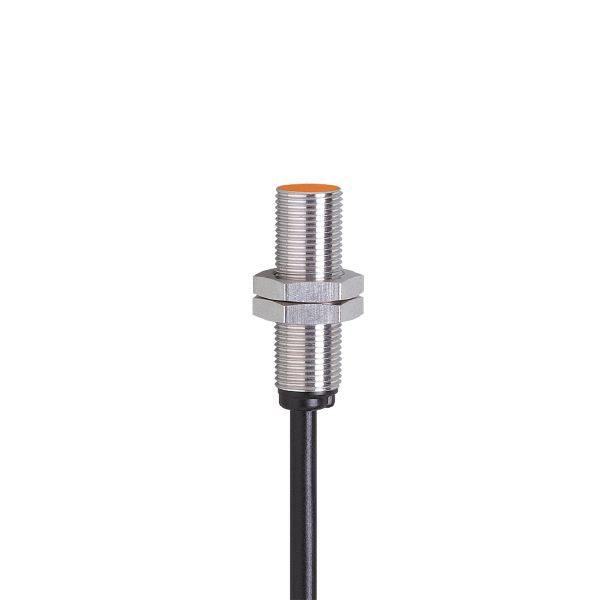

Ifm IF5955 Inductive Sensor

Ifm IF5955 Inductive Sensor

SKU IF-IF5955-E
$195.56 USD - $195.56 USD
$195.56 USD
$195.56 USD - $195.56 USD
$195.56 USD
Availability:
0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Product characteristics
Electrical design PNP
Output function normally open
Sensing range [mm] 2
Housing Threaded type
Dimensions [mm] M12 x 1
Application
System Halogen-free
Electrical data
Operating voltage [V] 10...55 DC
Current consumption [mA] < 15
Protection class II
Reverse polarity protection yes
Outputs
Electrical design PNP
Output function normally open
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 125; (150 (...50 °C))
Short-time current rating of switching output [mA] 150
Switching frequency DC [Hz] 1000
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Monitoring range
Sensing range [mm] 2
Real sensing range Sr [mm] 2 ± 10 %
Operating distance [mm] 0...1.6
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3
Hysteresis [% of Sr] 3...15
Switch-point drift [% of Sr] -10...10
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
EN 55011 class B
MTTF [years] 2418
Mechanical data
Weight [g] 113.8
Housing Threaded type
Mounting flush mountable
Dimensions [mm] M12 x 1
Thread designation M12 x 1
Material housing: stainless steel (1.4305 / 303); sensing face: PBT; end cap: TPE
Displays / operating elements
Display
Switching status 1 x LED, yellow
Accessories
Items supplied
lock nuts: 2
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Cable: 3 m, PUR, Halogen-free; 3 x 0.34 mm²
