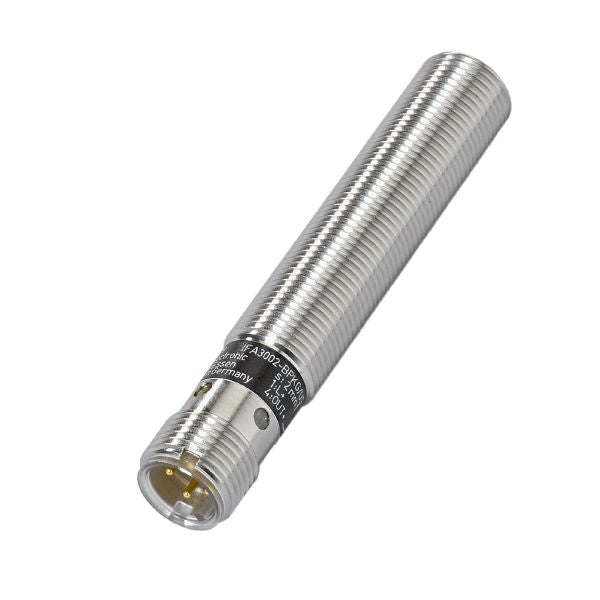

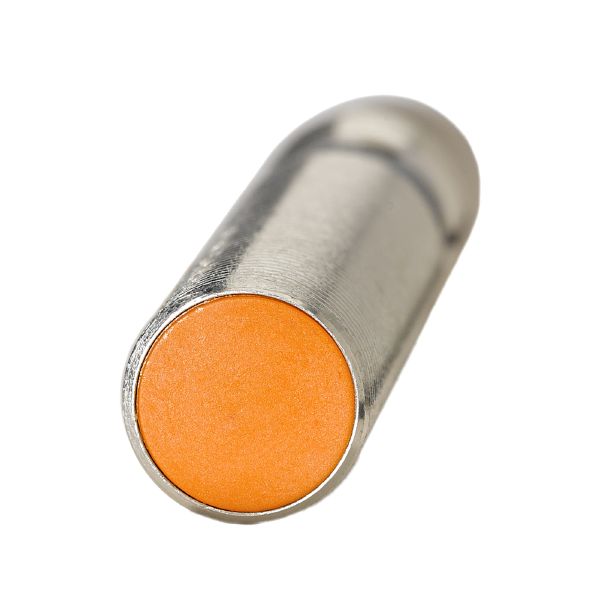

Ifm IF5917 Inductive Sensor

Name: Ifm IF5917 Inductive Sensor
Availability: BackOrder

SKU IF-IF5917-E

$143.89 USD - $143.89 USD

$143.89 USD

$143.89 USD - $143.89 USD

$143.89 USD

Availability:

0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

Product characteristics

Electrical design	PNP
Output function	normally open
Sensing range [mm]	4
Housing	Threaded type
Dimensions [mm]	M12 x 1 / L = 70

Application

System	Increased sensing range

Electrical data

Operating voltage [V]	10...36 DC
Current consumption [mA]	15; (24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	250
Short-circuit protection	yes
Type of short-circuit protection	yes (non-latching)
Overload protection	yes

Monitoring range

Sensing range [mm]	4
Increased sensing range	yes

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3
Hysteresis [% of Sr]	3...20

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

MTTF [years]	1083

Mechanical data

Weight [g]	30
Housing	Threaded type
Mounting	flush mountable
Dimensions [mm]	M12 x 1 / L = 70
Thread designation	M12 x 1
Material	brass nickel-plated; PC

Displays / operating elements

Display

Switching status

1 x LED, yellow

Accessories

Items supplied

lock nuts: 2

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

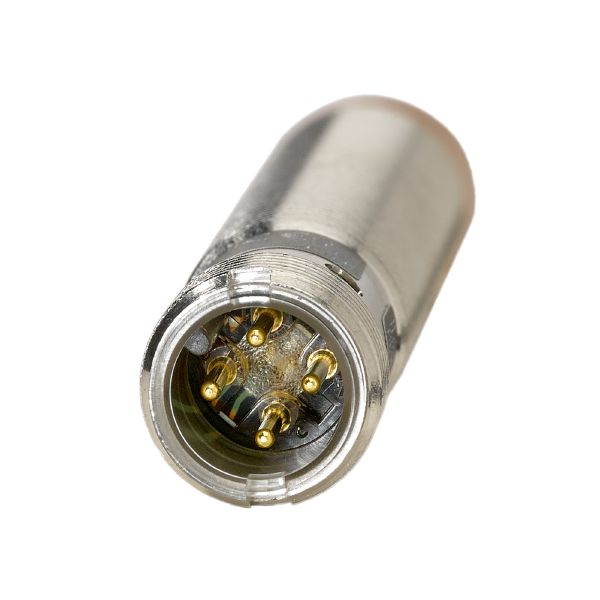

Connection	Connector: 1 x M12; coding: A
