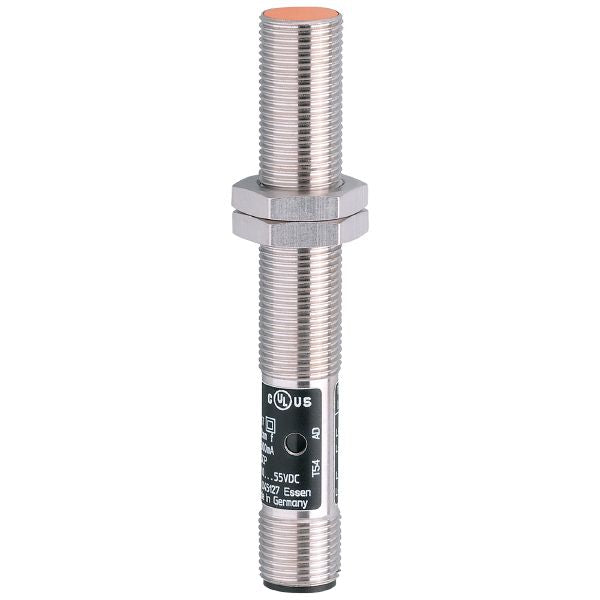

Ifm IF5759 Inductive Sensor

Ifm IF5759 Inductive Sensor

SKU IF-IF5759-E
$148.89 USD - $148.89 USD
$148.89 USD
$148.89 USD - $148.89 USD
$148.89 USD
Availability:
0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Product characteristics
Electrical design PNP/NPN
Output function normally open / closed; (selectable)
Sensing range [mm] 2
Housing Threaded type
Dimensions [mm] M12 x 1 / L = 83
Application
System gold-plated contacts
Application Industrial applications
Electrical data
Operating voltage [V] 10...55 DC
Protection class III
Reverse polarity protection yes
Outputs
Electrical design PNP/NPN
Output function normally open / closed; (selectable)
Max. voltage drop switching output DC [V] 4.6
Minimum load current [mA] 4
Max. leakage current [mA] 0.5
Permanent current rating of switching output DC [mA] 400
Switching frequency DC [Hz] 1100
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Monitoring range
Sensing range [mm] 2
Real sensing range Sr [mm] 2 ± 10 %
Operating distance [mm] 0...1.6
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2
Hysteresis [% of Sr] 1...15
Switch-point drift [% of Sr] -10...10
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
EN 55011 class B
MTTF [years] 1815
Mechanical data
Weight [g] 34.7
Housing Threaded type
Mounting flush mountable
Dimensions [mm] M12 x 1 / L = 83
Thread designation M12 x 1
Material stainless steel (1.4571/316Ti ); sensing face: PBT
Displays / operating elements
Display
Switching status 1 x LED, red
Accessories
Items supplied
lock nuts: 2
Remarks
Pack quantity 1 pcs.
Electrical connection - plug
Connector: 1 x M12; coding: A; Contacts: gold-plated
