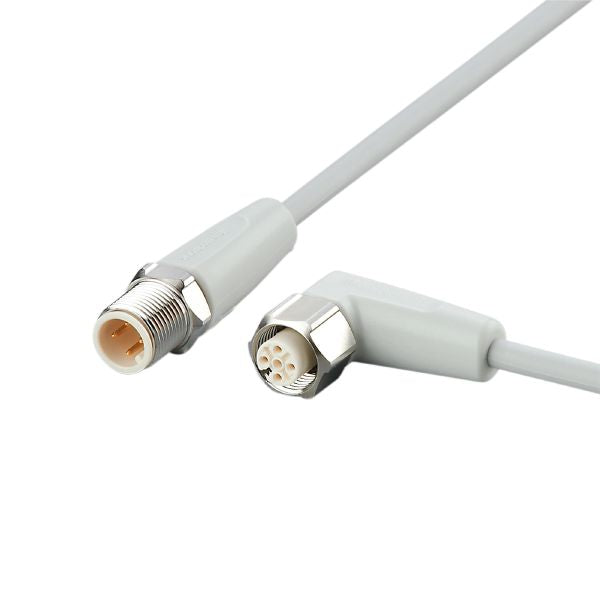

Ifm EVF445 Connection Cable

Name: Ifm EVF445 Connection Cable
Availability: BackOrder

SKU IF-EVF445-E

$54.44 USD - $54.44 USD

$54.44 USD

$54.44 USD - $54.44 USD

$54.44 USD

Availability:

0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

Application

System	Free from silicone; Halogen-free; gold-plated contacts; Drag chain suitability
Application	sanitary and wet areas in the food industry
Free from silicone	yes

Electrical data

Operating voltage [V]	< 250 AC / < 300 DC
Protection class	II
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]

-25...100

Ambient temperature (moving) [°C]

0...100

Storage temperature [°C]

-25...55

Storage humidity [%]

10...100

Other climatic conditions for storage according to stated class

1K22/ DIN 60721-3-1

Protection

IP 65; IP 67; IP 68; IP 69K

Mechanical data

Weight [g]

118.3

Material

PP Halogen-free; sealing: EPDM

Molded-body material

Material nut

stainless steel (1.4404 / 316L)

Drag chain suitability

yes

Drag chain suitability

Bending radius for flexible applications	min. 10 x cable diameter
Travel speed	max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
Bending cycles	> 1 Mio.
Torsional strain	± 180 °/m

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, straight; coding: A; Moulded body: PP; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm

Electrical connection

Connection	Cable: 3 m, MPPE, Halogen-free, grey, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - Socket

	Connector: 1 x M12, angled; coding: A; Moulded body: PP; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
