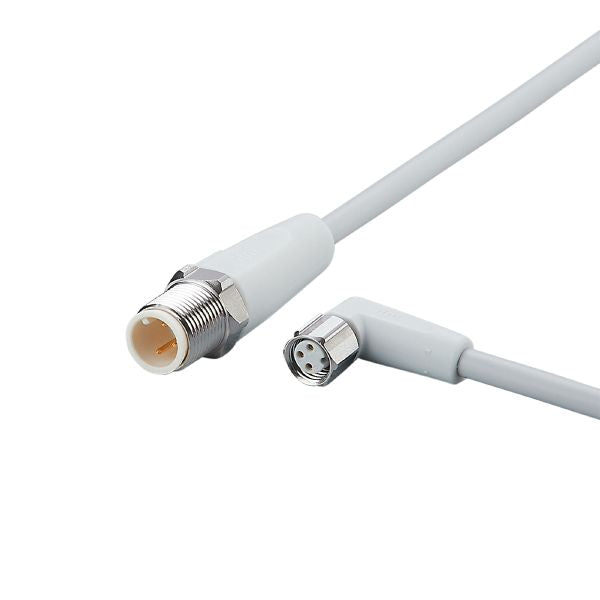

Ifm EVF246 Connection Cable

SKU IF-EVF246-E
Original price $57.78 USD - Original price $57.78 USD
Original price
$57.78 USD
$57.78 USD - $57.78 USD
Current price $57.78 USD
Availability:
0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Application
System Free from silicone; Halogen-free; gold-plated contacts; Drag chain suitability
Application sanitary and wet areas in the food industry
Free from silicone yes
Electrical data
Operating voltage [V] < 50 AC / < 60 DC; (cULus: 30 AC / 30 DC)
Protection class III
Max. current load total [A] 3
Operating conditions
Ambient temperature [°C] -25...80
Ambient temperature (moving) [°C] 5...80
Protection IP 65; IP 67; IP 68; IP 69K
Tests / approvals
UL approval
voltage supply Class 2
Mechanical data
Weight [g] 164.5
Dimensions [mm] 15.5 x 15.5 x 49
Material housing: PP Halogen-free; sealing: EPDM
Material nut stainless steel (1.4404 / 316L)
Drag chain suitability yes
Drag chain suitability
Bending radius for flexible applications min. 10 x cable diameter
Travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
Bending cycles > 1 Mio.
Torsional strain ± 180 °/m
Remarks
Pack quantity 1 pcs.
Electrical connection - plug
Connector: 1 x M12, straight; coding: A; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
Electrical connection
Connection Cable: 5.0 m, MPPE, Halogen-free, grey, Ø 4.9 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm )
Electrical connection - Socket
Connector: 1 x M8, angled; coding: A; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.3...0.5 Nm
