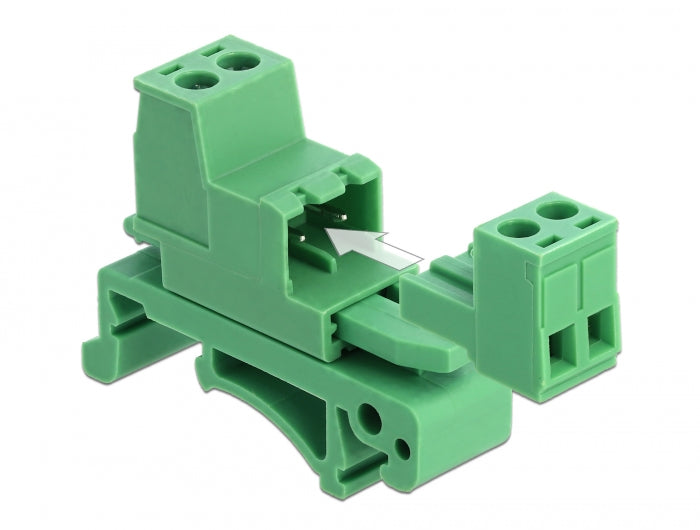

Delock 66078 Terminal Block Set For Din Rail 2 Pin With Pitch 5.08 Mm Angled

• Connectors:
Terminal block:
1 x 2 pin male
1 x 2 pin screw terminal
Connection terminal:
1 x 2 pin female
1 x 2 pin screw terminal
• Pitch: 5.08 mm
• Environmental temperature: -40 °C ~ 105 °C
• Useable for a cable gauge range from 24 to 12 AWG
• Withstanding voltage: AC 2500 V / 1 min
• Rated voltage according to: UL: 300 V, IEC: 320 V
• Rated current according to: UL: 10 A, IEC: 15 A

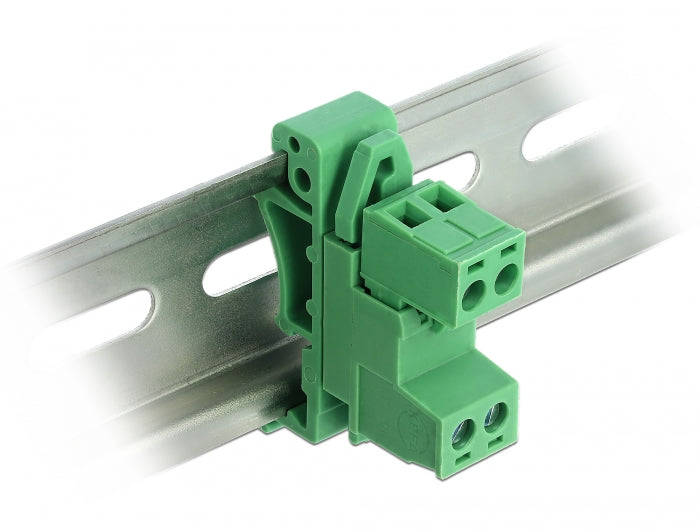

• DIN rail mounting: 35 mm
• Material: plastic
• Colour: green
• Dimensions (LxWxH): ca. 42.50 x 32.45 x 12.00 mm
