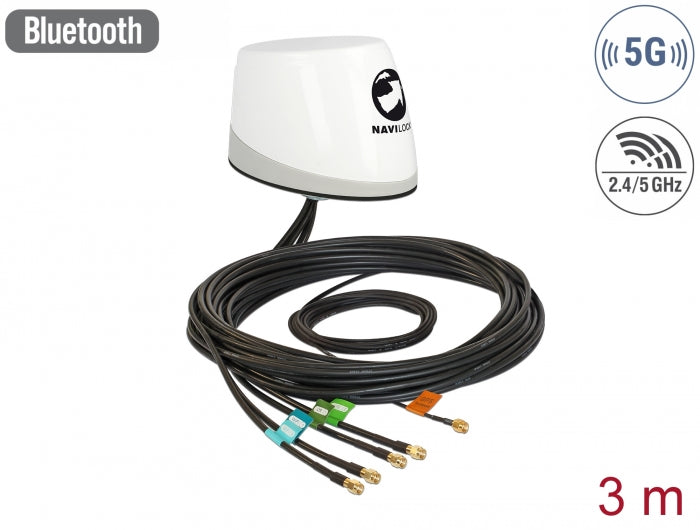

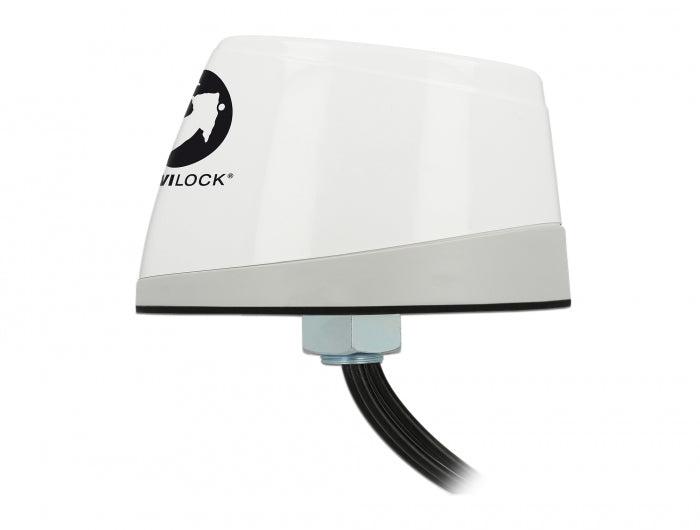

Navilock 88989 Nl-400 Multiband Gnss 5G Lte-Mimo Wlan-Mimo
• GNSS GPS GALILEO GLONASS:
Frequency range:
GPS, GALILEO: L1, 1.5754200 GHz
GLONASS: G1, 1.6025625 - 1.6155000 GHz
Gain: 4 dBi
VSWR: < 2
Impedance: 50 Ohm
Polarisation: RHCP
• LNA GNSS:
Frequency range:
GPS, GALILEO: L1, 1.5754200 GHz
GLONASS: L1, 1.6025625 - 1.6155000 GHz
Gain: 30 dBi
Voltage: 3.3 - 5.0 V
Current: 17 mA
VSWR: < 2
Impedance: 50 Ohm
Polarisation: linear
Cable type: RG-174
Cable attenuation:
2.4 GHz: 2.06 dB per meter
6.0 GHz: 3.45 dB per meter
• LTE MIMO:
Frequency range:
698 - 960 MHz
1.710 - 2.170 GHz
2.500 - 2.600 GHz
3.400 - 3.800 GHz
GSM / UMTS/ ZigBee/ Z-Wave / LoRa
Gain: 3.4 - 4 dBi
Operating power: 5 W
VSWR: < 3
Impedance: 50 Ohm
Polarisation: linear
Cable type: CFD200
Cable attenuation:
2.4 GHz: 0.55 dB per meter
5.7 GHz: 0.86 dB per meter
• WLAN MIMO dualband
Frequency range:
2.400 - 2.483 GHz
5.150 - 5.850 GHz
Bluetooth/ ZigBee
Gain: 4 dBi
Operating power: 1 W
VSWR: < 3
Impedance: 50 Ohm
Polarisation: linear
Cable type: CFD200
Cable attenuation:
2.4 GHz: 0.55 dB per meter
5.7 GHz: 0.86 dB per meter
• Operating temperature: -40°C - 80°C
• Housing: PC-540 PC/ABS Alloy
• Cable length: 3 m
• Cable colour: black
• Protection class: IP67
• Dimensions (LxWxH): ca. 160 x 106 x 102 mm
