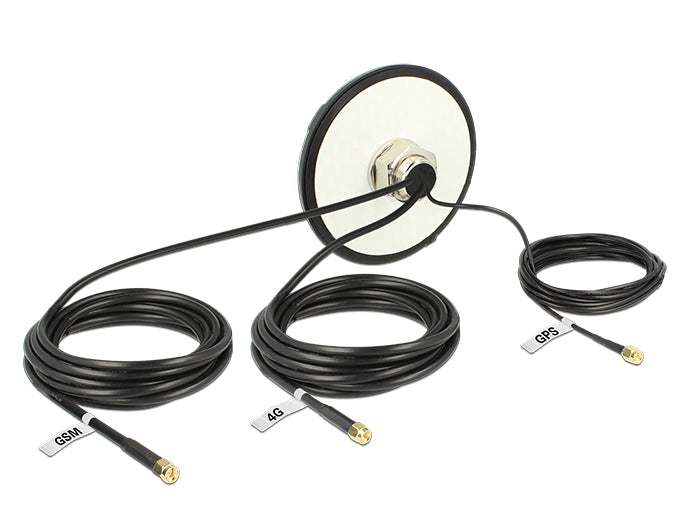

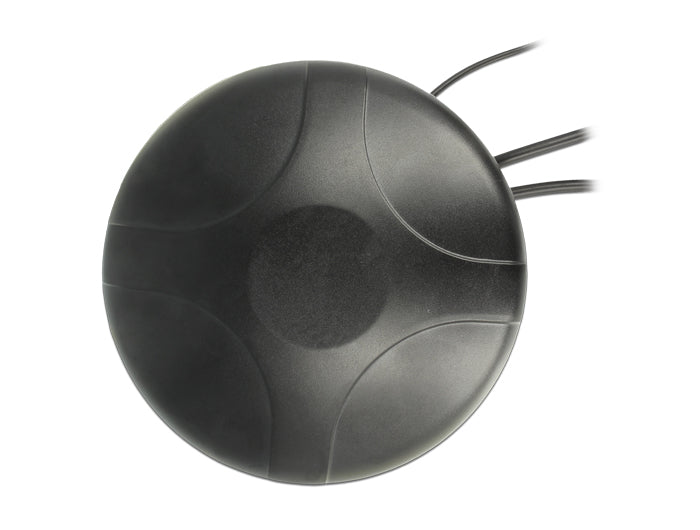

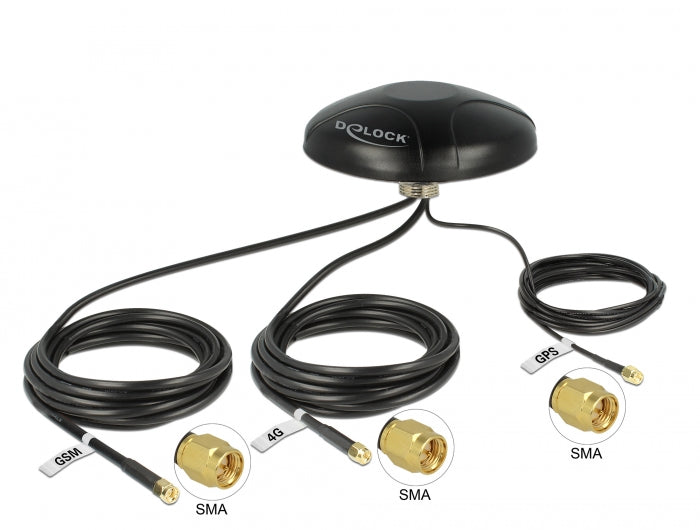

Delock 12455 Multiband Lte Umts Gsm Gps Antenna 3 X Sma Male
• LTE:
Frequency range:
0,698 - 0,960 GHz
1,710 - 2,700 GHz
GSM / UMTS / ZigBee / Z-Wave / WLAN 2,4 GHz / Bluetooth
Antenna gain: 2 dBi
Impedance: 50 Ohm
VSWR: 2,5
Polarisation: linear
Cable: coaxial
Cable type: RG-58/U
Cable diameter: ca. 4,95 mm
Cable attenuation: 0,6 dBi @ 1 GHz per meter
• GSM UMTS:
Frequency range:
0,824 - 0,960 GHz
1,710 - 2,170 GHz
GSM / UMTS / Z-Wave
Antenna gain: 2 dBi
Impedance: 50 Ohm
VSWR: 2,5
Polarisation: linear
Cable: coaxial
Cable type: RG-58/U
Cable diameter: ca. 4,95 mm
Cable attenuation: 0,6 dBi @ 1 GHz per meter
• GPS:
Frequency range:
GPS: L1, 1,57542 GHz
Antenna gain: 28 dBi
Impedance: 50 Ohm
VSWR: 2,5
Polarisation: RHCP
Cable: coaxial
Cable type: RG-174
Cable diameter: ca. 2,7 mm
Cable attenuation: 1,5 dB @ 1,5 GHz per meter
Operating voltage: 2,2 - 5,0 V
Current consumption: 5 - 15 mA
• LNA GPS:
Frequency range:
GPS: L1, 1,57542 GHz
Antenna gain: 28 dBi
VSWR: 2,0
Impedance: 50 Ohm
Cable: coaxial
Cable type: RG-174
Cable diameter: ca. 2,7 mm
Cable attenuation: 1,5 dB @ 1,5 GHz per meter
Operatin voltage: 2,2 - 5,0 V
Current consumption: 5 - 15 mA
• Screw-on mounting
• Operating temperature: -40°C ~ 85°C
• Housing material: ABS
• Colour: black
• Protection class: IP67
• Cable colour: black
• Cable length incl. connectors: ca. 3 m

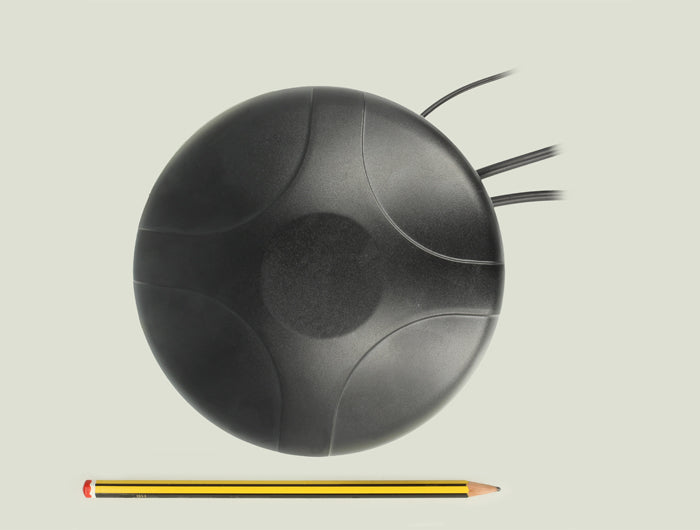

• Dimensions (DxH): ca. 143,6 x 65 mm
• Mounting hole diameter: 30 mm
