Ifm  |  SKU: IF-AC2417-E  |  Barcode: DOES NOT APPLY

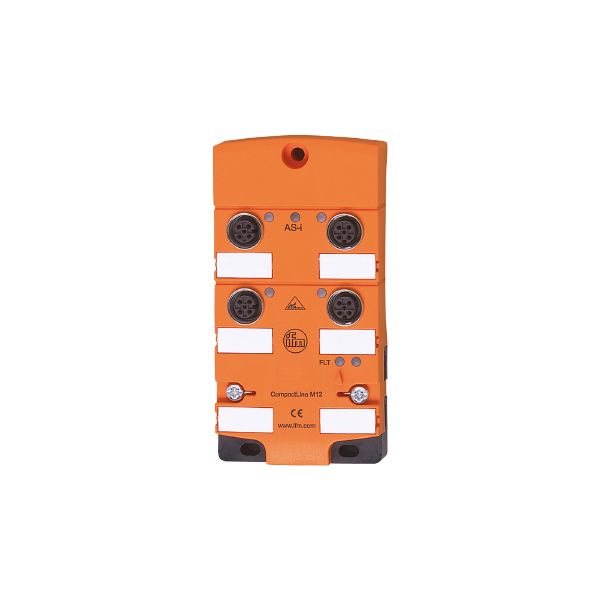

Ifm AC2417 As-Interface Compactline Module

$452.00 CAD
Shipping calculated at checkout.

Ifm AC2417 As-Interface Compactline Module is backordered and will ship as soon as it is back in stock.


🚚 We Ship Worldwide! Get your order delivered anywhere.

🌎 No Borders, Just Shipping! We deliver to your doorstep—anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Sign up for exclusive offers.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Application
Application field installation
Electrical data
Operating voltage [V] 26.5...31.6 DC
Max. current consumption from AS-i [mA] 75
Max. current load total [A] 4
Additional voltage supply [V] 15...30 DC; (AUX)
Max. current consumption from additional supply [mA] 4000; (AUX)
Integrated watchdog yes
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 4
Outputs
Number of digital outputs 4
Circuit PNP
Voltage range DC [V] 15...30; (AUX)
Max. current load per output [mA] 2000; (utilization category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1))
Max. current load outputs total [A] 4
Short-circuit proof yes
Electrically separated yes
Actuator supply outputs AUX
Operating conditions
Ambient temperature [°C] -25...80
Storage temperature [°C] -25...80
Max. relative air humidity [%] 90; (non condensing)
Max. height above sea level [m] 2000
Protection IP 67; (when flat cables are used E7400x / E7401x)
Tests / approvals
EMC
EN 61000-6-2
EN 62026-2
EN 50581
MTTF [years] 300
UL approval
voltage supply Class 2
AS-i classification
AS-i version 2.11; 3.0
AS-i addressing IR addressing possible
Extended addressing mode no
AS-i master profile M2; M3; M4
AS-i profile S-8.0.F
AS-i I/O configuration [hex] 8
AS-i ID code [hex] 0.F
AS-i certificate 92201
Data bits
Data bit D0 D1 D2 D3
Output 1 2 3 4
Socket O-1 O-2 O-3 O-4
Pin 4 4 4 4
Mechanical data
Weight [g] 292.5
Type of mounting AS-i flat cable connection
Material PA; Socket: brass nickel-plated; threaded inserts in the lower part: brass nickel-plated; O-ring: FKM; Piercing contacts: CuSn6 nickel-plated and tin-plated
Displays / operating elements
Display
Switching status LED, yellow O1...O4
Power LED, green AS-i, AUX
errors LED, red
Electrical connection
Module connection Flat cable
Accessories
Accessories (optional)
stainless steel sleeve, for installation in case of high mechanical stress , E70402
Remarks
Pack quantity 1 pcs.
Electrical connection
Connector: M12; coding: A
