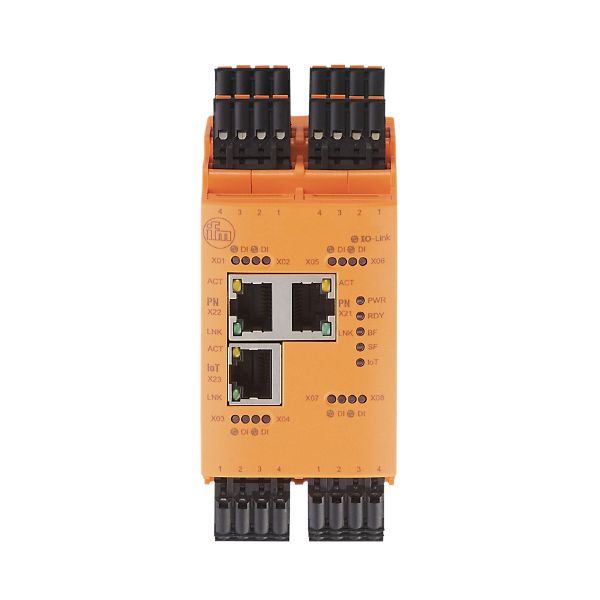

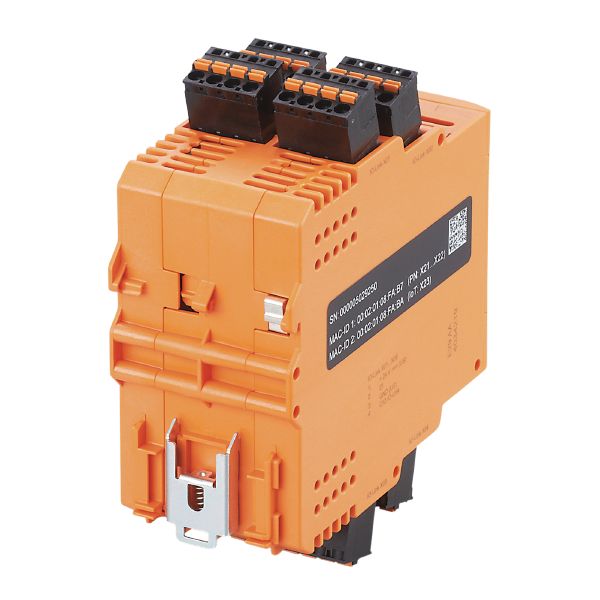

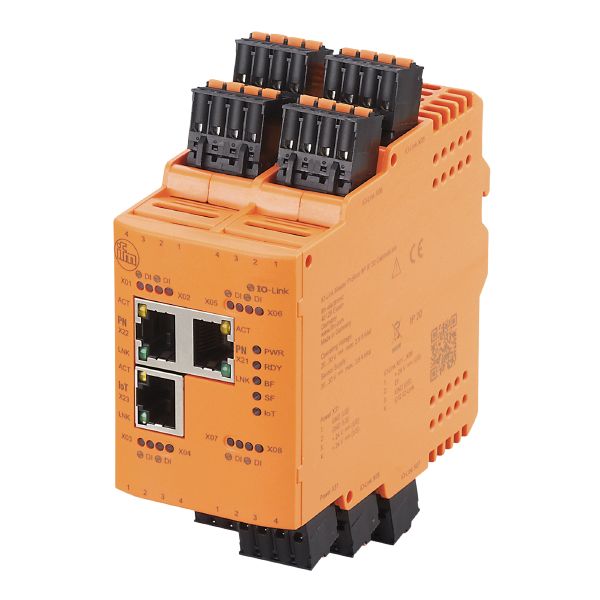

Ifm AL1920 Io-Link Master With Ethernet/Ip Interface
| Application | I/O modules for use in the control cabinet |
|---|
| Operating voltage [V] | 20...30 DC; (US ; to SELV/PELV) |
|---|---|
| Current consumption [mA] | 300...3900; (US) |
| Protection class | III |
| Max. current load total [A] | 3.6 |
|---|
| Total number of inputs and outputs | 16; (configurable) |
|---|---|
| Number of inputs and outputs | Number of digital inputs: 8; Number of digital outputs: 8 |
| Number of digital inputs | 8; (IO-Link Port Class A) |
|---|---|
| Switching level high [V] | 11...30 |
| Switching level low [V] | 0...5 |
| Digital inputs protected against short circuits | yes |
| Number of digital outputs | 8; (IO-Link Port Class A) |
|---|---|
| Max. current load per output [mA] | 300 |
| Short-circuit proof | yes |
| Communication interface | Ethernet; IO-Link |
|---|
| Transmission standard | 10Base-T; 100Base-TX | ||||
|---|---|---|---|---|---|
| Transmission rate | 10 MBit/s; 100 MBit/s | ||||
| Protocol | EtherNet/IP | ||||
| Factory settings |
|
||||
| Note on interfaces |
|
| Transmission standard | 10Base-T; 100Base-TX | ||||
|---|---|---|---|---|---|
| Transmission rate | 10 MBit/s; 100 MBit/s | ||||
| Protocol | MQTT JSON | ||||
| Factory settings |
|
||||
| Note on interfaces |
|
| Transmission type | COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
|---|---|
| IO-Link revision | 1.1 |
| Number of ports class A | 8 |
| Ambient temperature [°C] | -25...65 |
|---|---|
| Storage temperature [°C] | -25...85 |
| Max. relative air humidity [%] | 90 |
| Protection | IP 20 |
| EMC |
|
||||
|---|---|---|---|---|---|
| MTTF [years] | 78 |
| Weight [g] | 319.2 |
|---|---|
| Material | housing: PA orange |
| Items supplied |
|
|---|
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
