Ifm | SKU: IF-O2M210-E | Barcode: DOES NOT APPLY

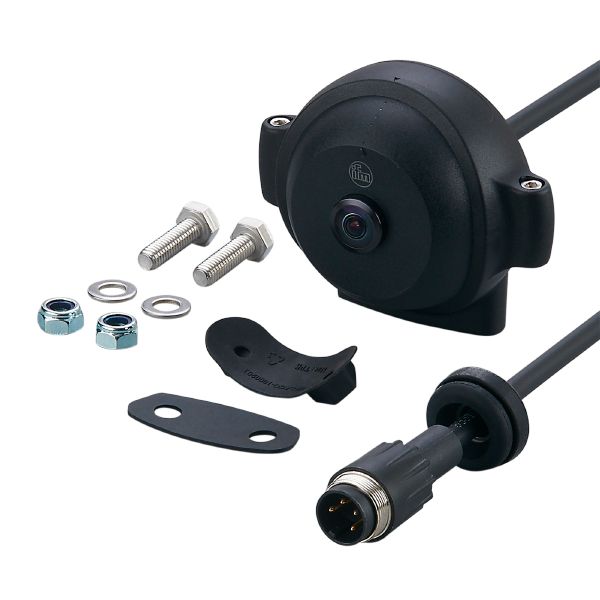

Ifm O2M210 Analog Camera For Mobile Machines

Name: Ifm O2M210 Analog Camera For Mobile Machines
Availability: BackOrder

$858.00 CAD

Shipping calculated at checkout.

Ifm O2M210 Analog Camera For Mobile Machines is backordered and will ship as soon as it is back in stock.

🚚 We Ship Worldwide! Get your order delivered anywhere.

🌎 No Borders, Just Shipping! We deliver to your doorstep—anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Product characteristics

Image resolution [px]	640 x 480
Angle of aperture [°]	170 x 117

Application

System	screened cable

Electrical data

Operating voltage [V]	12...32 DC
Current consumption [mA]	< 280; (with lens heating)
Overvoltage protection	yes
Image sensor	¼'' 4:3 VGA CMOS image sensor color
Switch-on peak current [mA]	1000
Switch-on peak current duration [ms]	2

Outputs

Video output	PAL (25 fps interlace) 720H x 576V (640 x 480), 1 Vtt / 75 Ω

Monitoring range

Field of view size [mm]

Operating distance [m]	Field of view [m]
1	22,86 x 3,26
2	45,72 x 6,53
3	68,58 x 9,79
4	91,44 x 13,05
5	114,30 x 16,32

Image resolution [px]

640 x 480

Angle of aperture [°]

170 x 117

Light sensitivity [LUX]

< 0.05

Dynamic range [dB]

> 80

Operating conditions

Ambient temperature [°C]	-40...85
Storage temperature [°C]	-40...100
Protection	IP 67; IP 69K

Tests / approvals

EMC

DIN EN 61000-6-4	industrial environments
DIN EN 61000-6-2	industrial environments
UN-ECE R10

Shock resistance

50 g

Vibration resistance

Frequency range 24...2000 Hz	(15.3 x 9.81 m/s²)rms
PSD (g²/Hz)	0.04...0.1

Salt spray test

IEC 60068-5-52

Mechanical data

Weight [g]	303
Dimensions [mm]	Ø 55 / L = 52
Material	housing: PC/ABS; front lens: polyamide reinforced glass-fiber

Accessories

Items supplied

Mounting set:, E2M210

screws: 2 x M6 x 20

washers

Nuts: 2 x M6, self-locking

anti-slide pad

Remarks

Pack quantity	1 pcs.

Electrical connection

	Cable: 0.5 m, screened
	Connector: 1 x M16; coding: A; Shielded connection cable: shield connected
