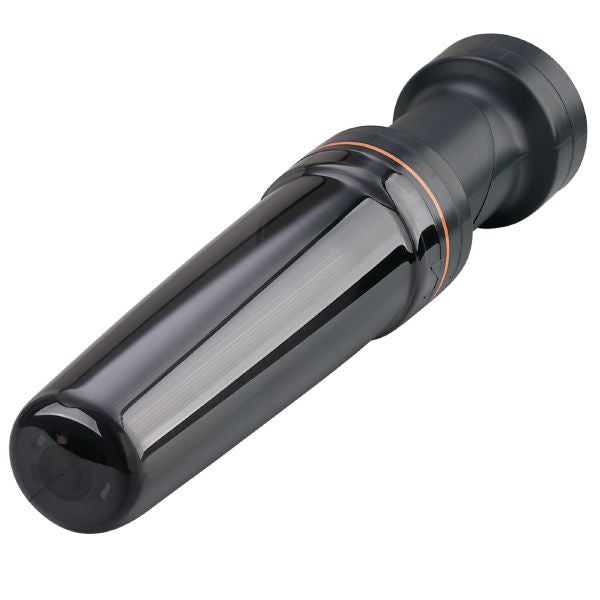

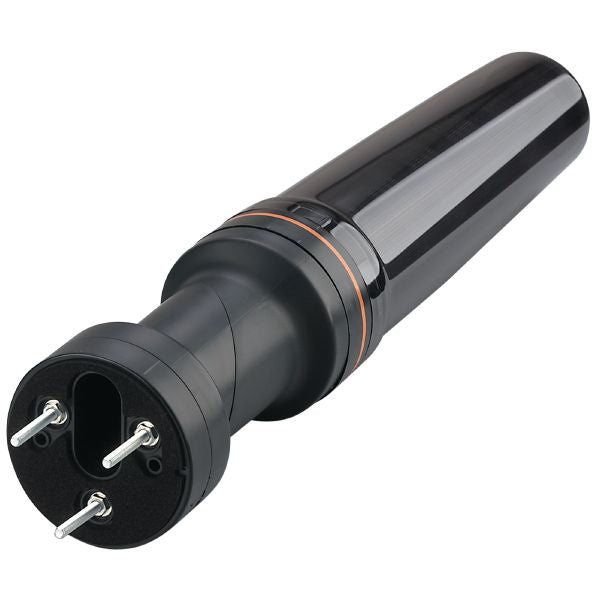

Ifm DV2500 5-Segment Light Tower With Io-Link Control
| Application | signaling machine conditions |
|---|
| Operating voltage [V] | 18...30 DC; (to SELV/PELV) |
|---|---|
| Nominal voltage DC [V] | 24 |
| Current consumption [mA] | < 200 |
| Input current High [mA] | 6 |
|---|
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| SIO mode | yes | ||||
| Required master port class | A | ||||
| Min. process cycle time [ms] | 3.2 | ||||
| Supported DeviceIDs |
|
| Ambient temperature [°C] | -25...50 |
|---|---|
| Storage temperature [°C] | -40...75 |
| Max. relative air humidity [%] | 90 |
| Air pressure [kPa] | < 106 |
| Max. height above sea level [m] | 2000 |
| Protection | IP 65 |
| Weight [g] | 586 |
|---|---|
| Type of mounting | Mounting base |
| Dimensions [mm] | Ø 70 / L = 344 |
| Material | housing: ABS; lens: PC |
| Display |
|
|---|
| Accessories (optional) |
|
|---|
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
| Connector: M12; coding: A |
|
wall mounting
|
|
|---|
|
base mounting
|
|
|---|
|
|
|
|---|
