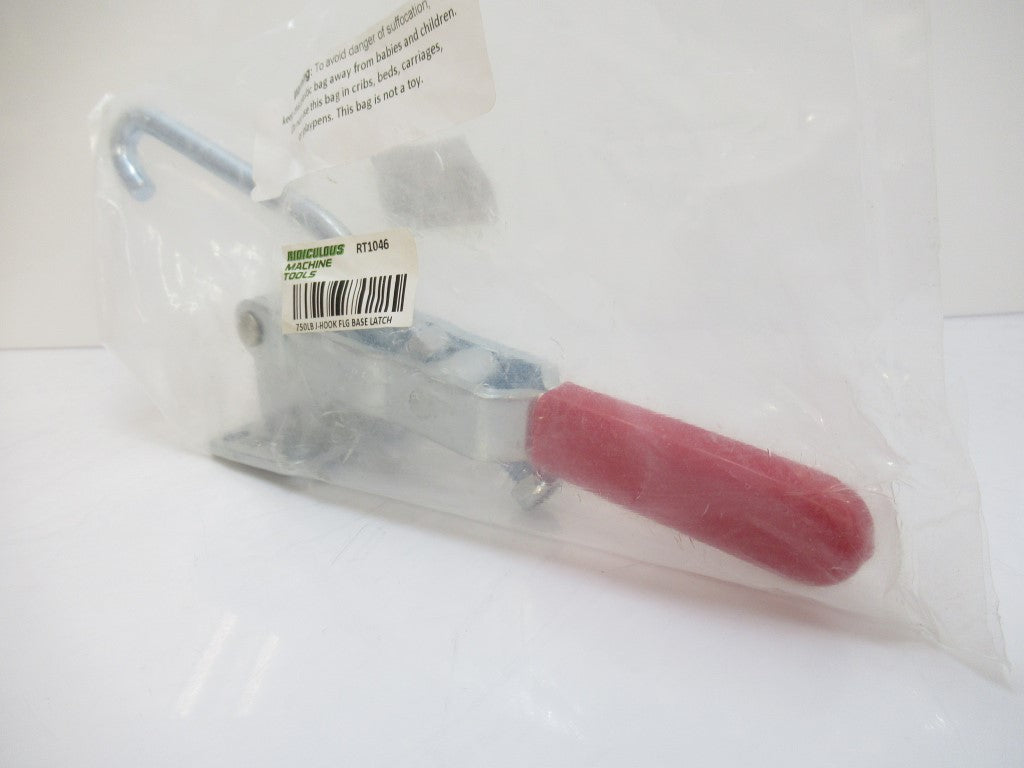

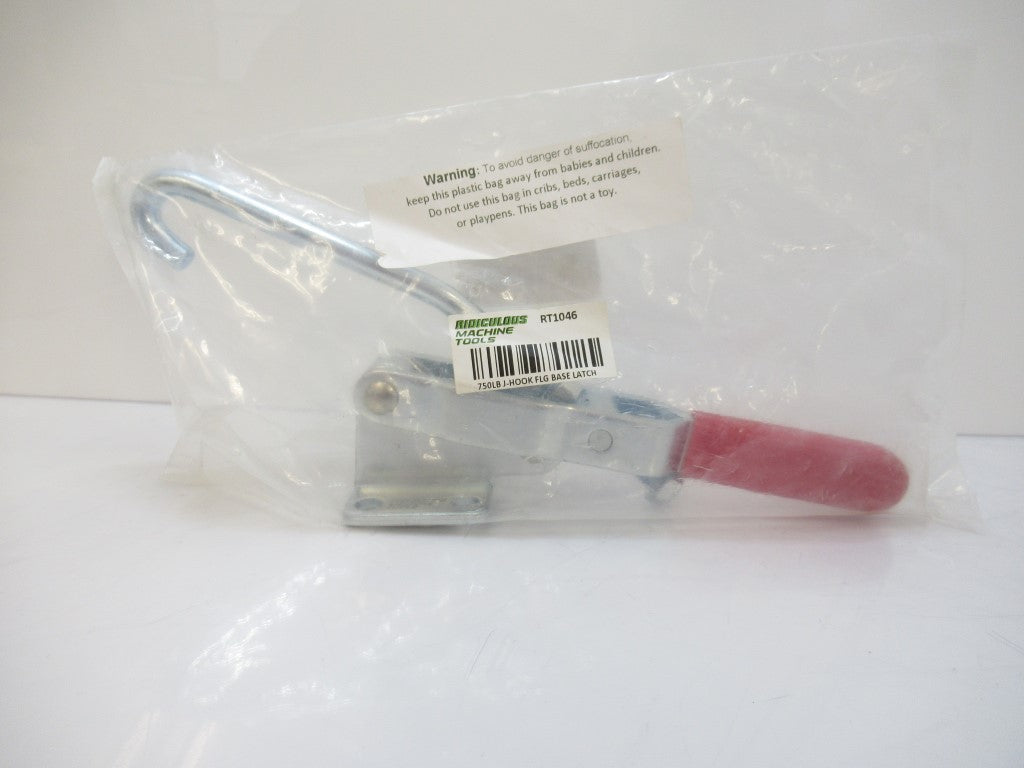

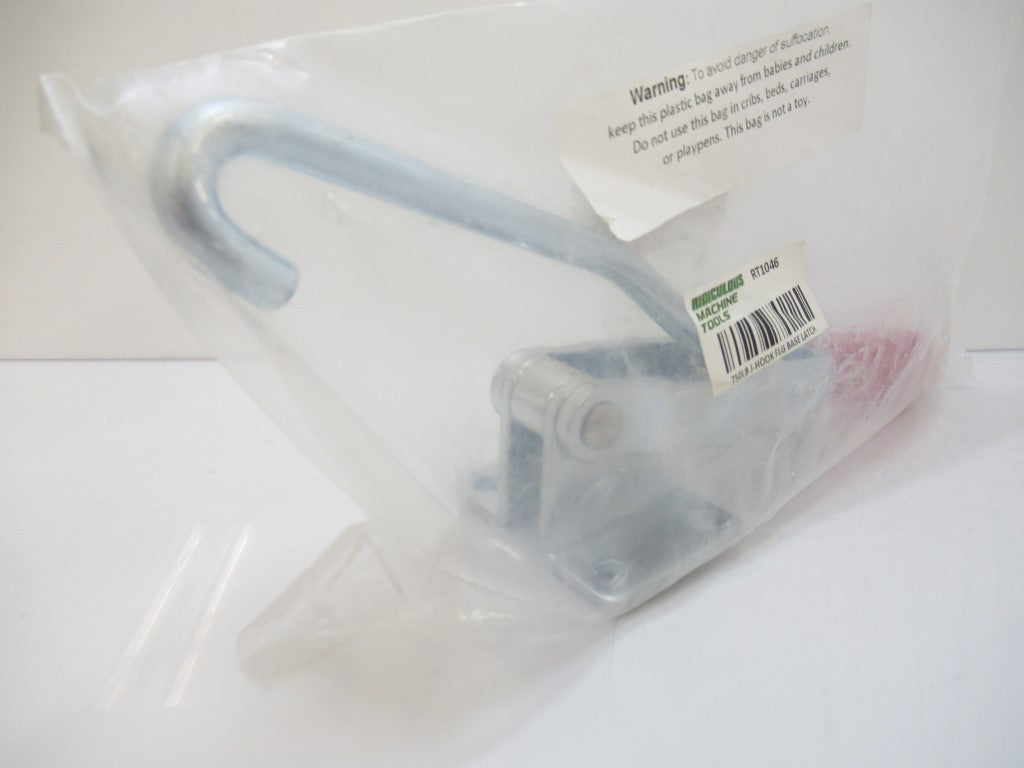

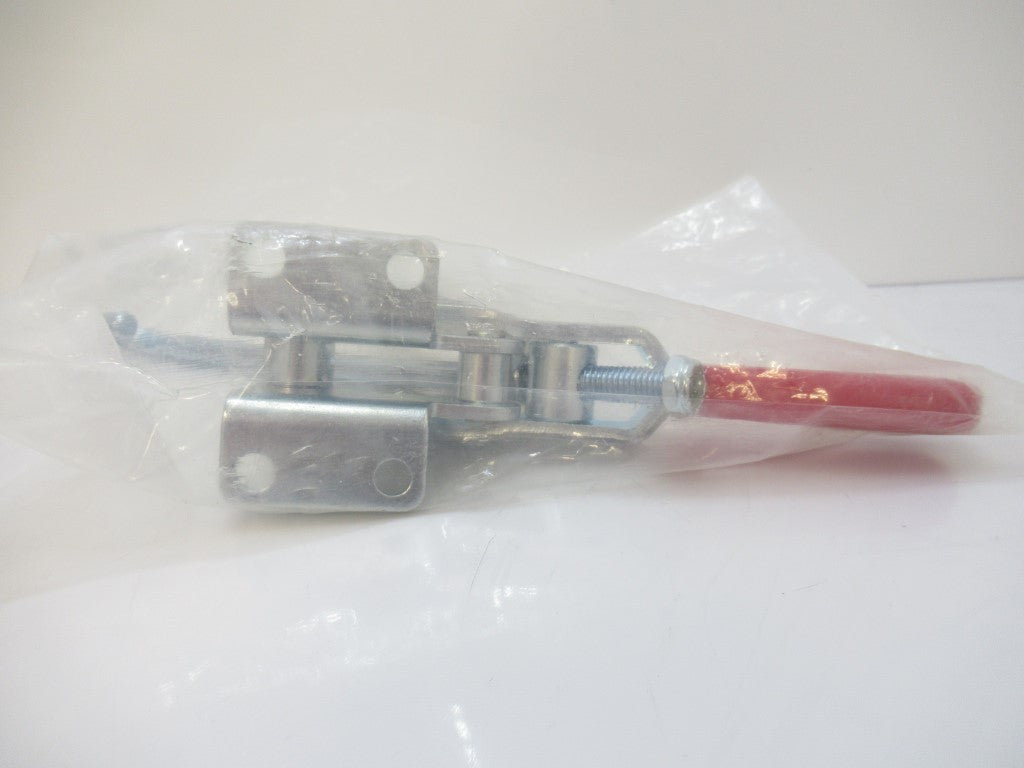

371 RT1046 Pull Action Latch Clamp
Product Information
- Maximum Holding Capacity (N): 3,340
- Maximum Holding Capacity (lbsf): 750
- Drawing Movement (mm): 136.7
- Drawing Movement (in): 5.440
- Hook Adjustable Range (mm): 23.9
- Max Hook Adjustment (in): 0.810
- Ef:Af Exerting Force: Applied Force ((pushing/pulling)): 36:1
- Standard Material: Steel
- Toggle Lock Plus: No
- Base Mounting Style: Flange
- Drawing Movement (mm): 136.7
- Hook Type: J-Hook
- Replacement Hook Assembly: 371215
- Product Type: Standard
- EDP No.: 53710
- Drawing Movement: 5.38INCH
- Thread: M10x1.5
- Overall Hook Length: 7.64INCH
- Weight: 0.69 (kg) 1.52 (lb)
