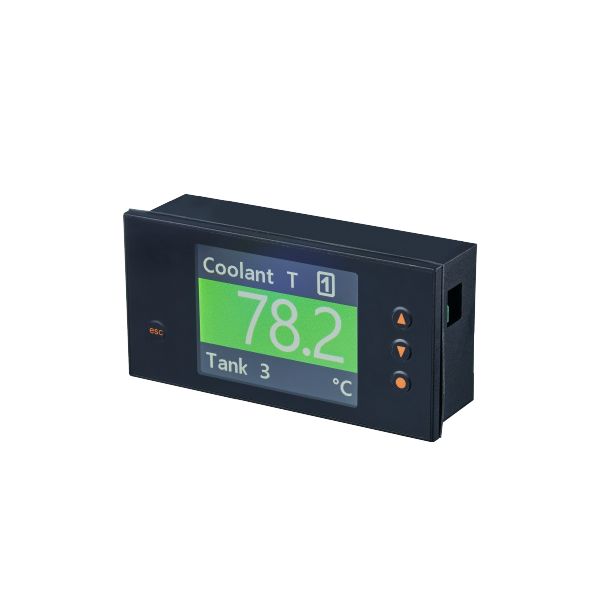

Ifm DX1063 Multifunction Display For Monitoring Analog Standard Signals

Name: Ifm DX1063 Multifunction Display For Monitoring Analog Standard Signals
Availability: BackOrder

$537.00 CAD

Shipping calculated at checkout.

Ifm DX1063 Multifunction Display For Monitoring Analog Standard Signals is backordered and will ship as soon as it is back in stock.

🚚 We Ship Worldwide! Get your order delivered anywhere.

🌎 No Borders, Just Shipping! We deliver to your doorstep—anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Product characteristics

Dimensions [mm]	48 x 109 x 42

Application

Application	displaying and monitoring analog signals

Electrical data

Operating voltage [V]	21.6...26.4 DC
Current consumption [mA]	< 65

Inputs / outputs

Number of inputs and outputs	Number of relay outputs: 2

Inputs

Multifunction inputs

Number

Analog input

function type	Current
input range [mA]	0...22
input resistance [Ω]	125
Resolution	14 Bit
Accuracy	0,2 % ± 1 Digit

Analog input

function type	Voltage
input range [V]	0...12
input resistance [kΩ]	> 100
Resolution	14 Bit
Accuracy	0,2 % ± 1 Digit

Resistor input

function type	PT100 / PT1000
Measuring range [°C]	-200...850
Resolution	≥ 0,1 K
Accuracy	0,5 % ± 1 Digit

Analog input

function type	Thermocouple
Measuring range [°C]	Typ K: -270...1350
Measuring range [°C]	Typ S: -50...1750
Measuring range [°C]	Typ N: -270...1300
Measuring range [°C]	Typ J: -170...950
Measuring range [°C]	Typ T: -270...400
Measuring range [°C]	Typ R: -50...1768
Measuring range [°C]	Typ B: 80...1820
Measuring range [°C]	Typ E: -270...1000
Measuring range [°C]	Typ L: -200...900
Resolution	1 K
Accuracy	0,3 % ± 1 Digit

Frequency input

function type	Frequency
Frequency [Hz]	0...10000

Frequency input

function type	rotational speed
rotational speed [1/min]	0...9999

Frequency input

function type	Counter
Counter	0...9999

Frequency input

Circuit	TTL
Switching level high [V]	> 3
Switching level low [V]	< 2

Frequency input

Circuit	PNP
Switching level high [V]	> 8
Switching level low [V]	< 6
input frequency [Hz]	< 1000

Frequency input

Circuit	NPN
Switching level high [V]	> 0,8
Switching level low [V]	< 0,8
input frequency [Hz]	< 3000

Frequency input

Circuit	NAMUR
Input current High [mA]	> 2,5
Input current low [mA]	< 1,5

Outputs

Number of relay outputs	2; (changeover contact)
Contact rating	2 A (30 V DC)

Measuring/setting range

Sampling rate [Hz]	0...10000; (see operating instructions)

Operating conditions

Ambient temperature [°C]	-20...60
Storage temperature [°C]	-30...70
Max. relative air humidity [%]	85
Max. height above sea level [m]	4000
Protection	IP 65
Protection rating terminals	IP 00

Tests / approvals

EMC

EN 61326
IEC 61131-2 Typ 3

MTTF [years]

176

Mechanical data

Weight [g]	144.8
Type of mounting	panel cutout: 92 x 45 mm
Dimensions [mm]	48 x 109 x 42
Material	housing: polycarbonate; sealing: EPDM

Displays / operating elements

Display

Color display	full graphics TFT display, 2,4" 320 x 240 Pixel
	digit height 15 mm

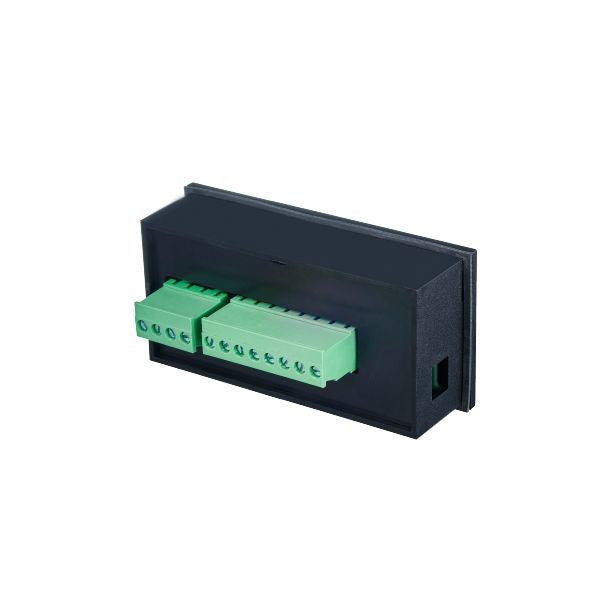

Electrical connection

Connection	pluggable screw terminal: ...2.5 mm²
