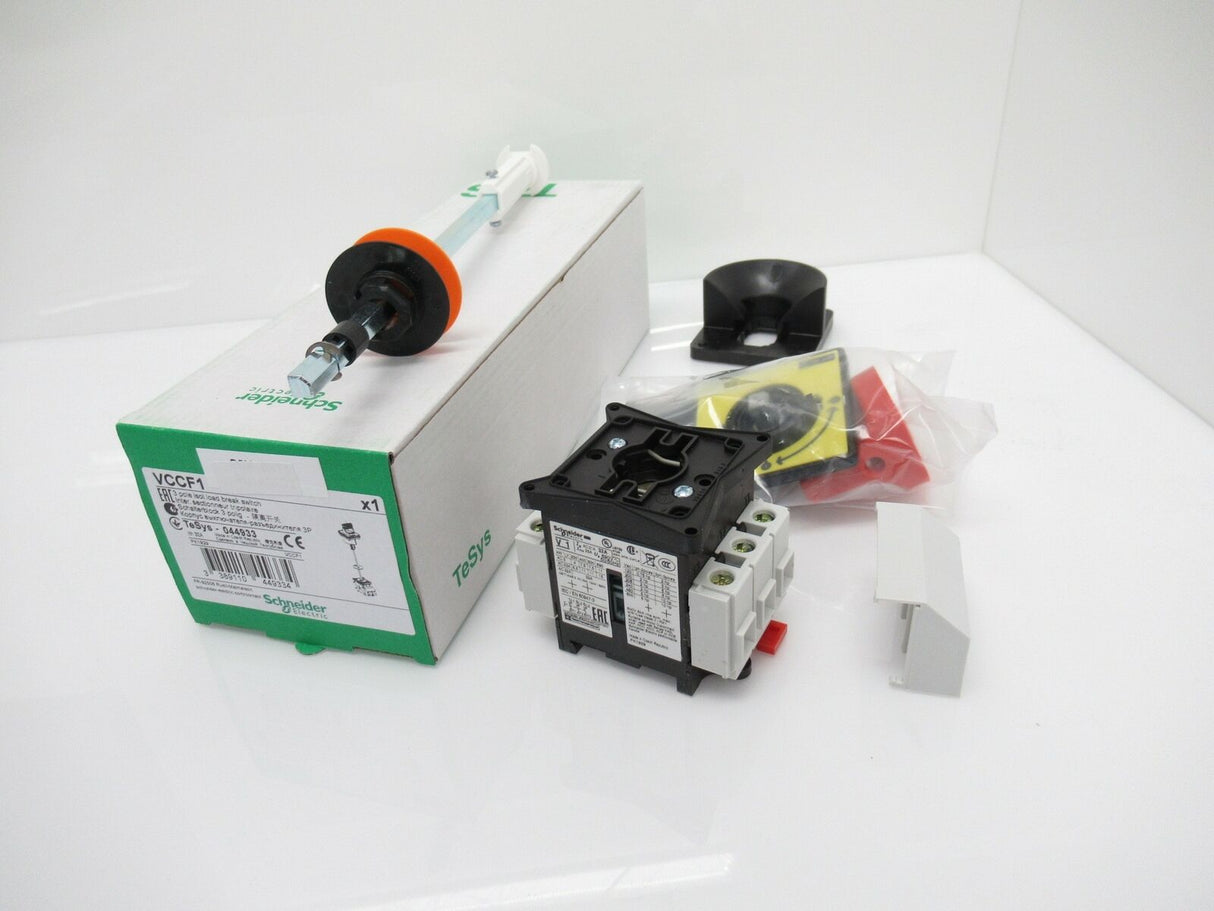

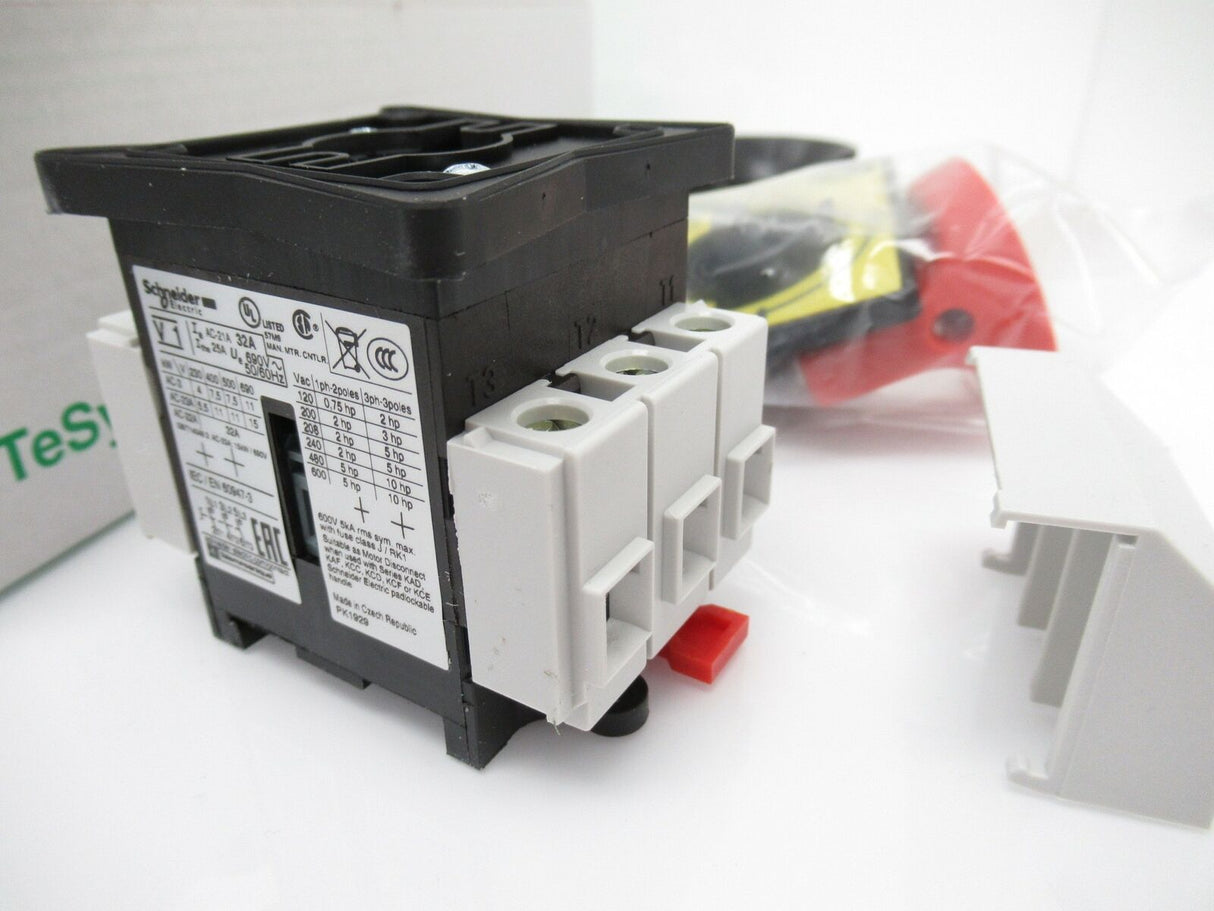

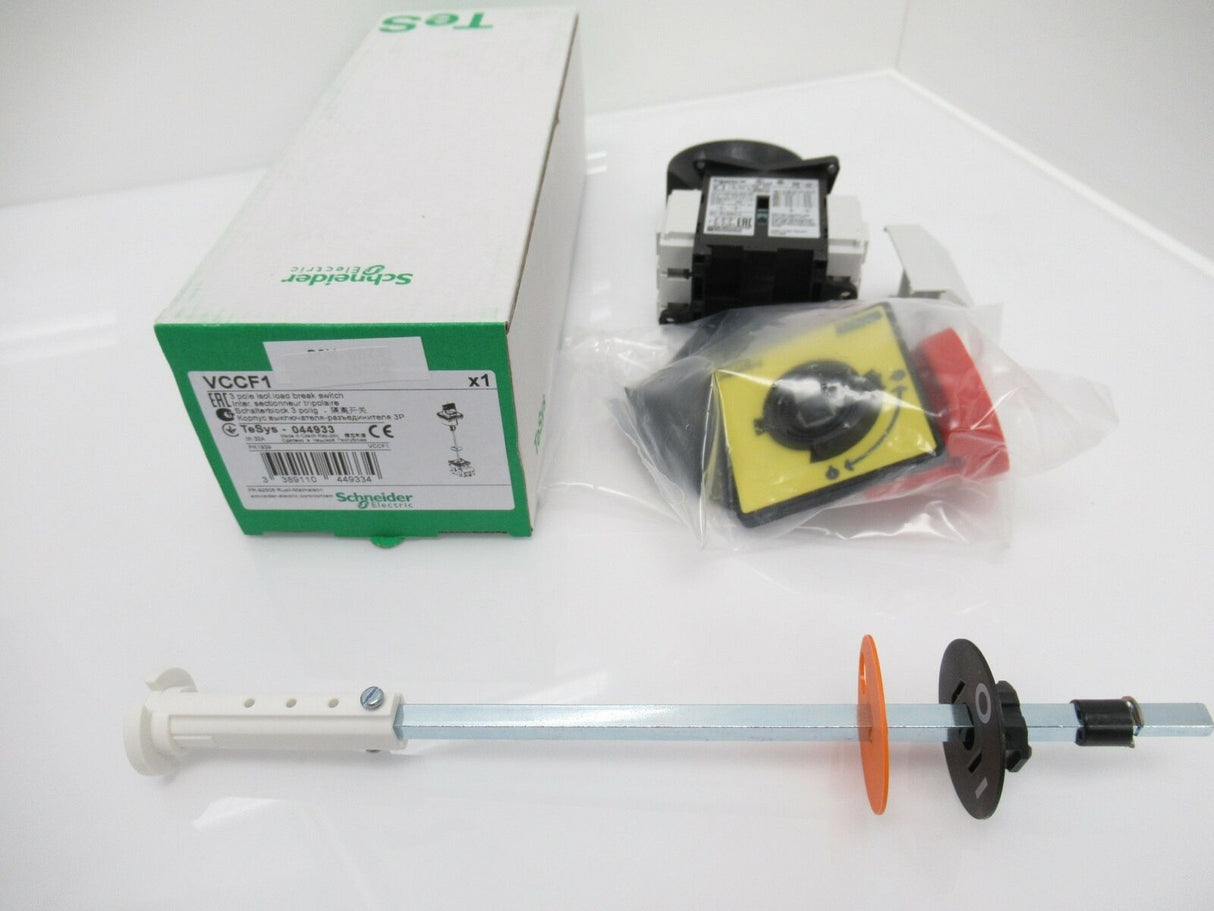

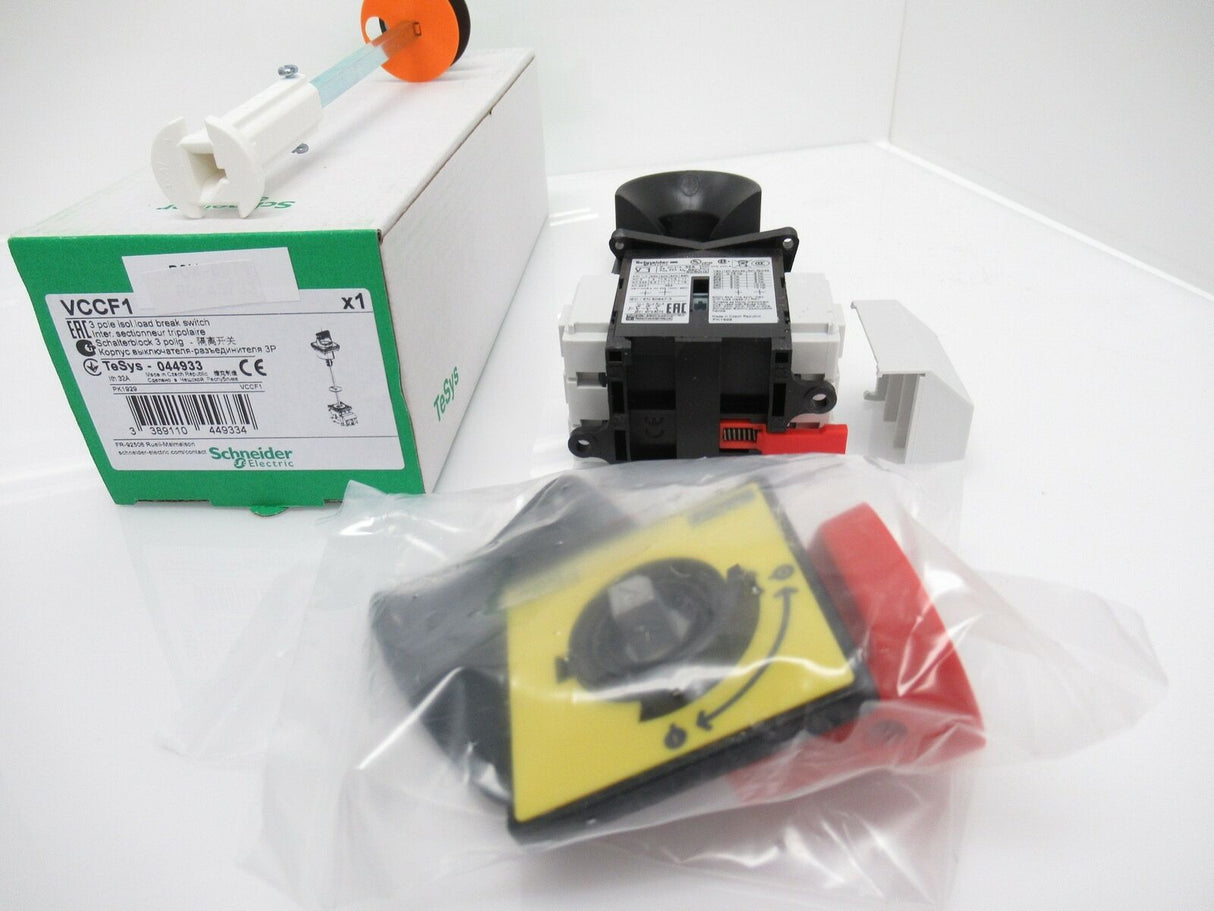

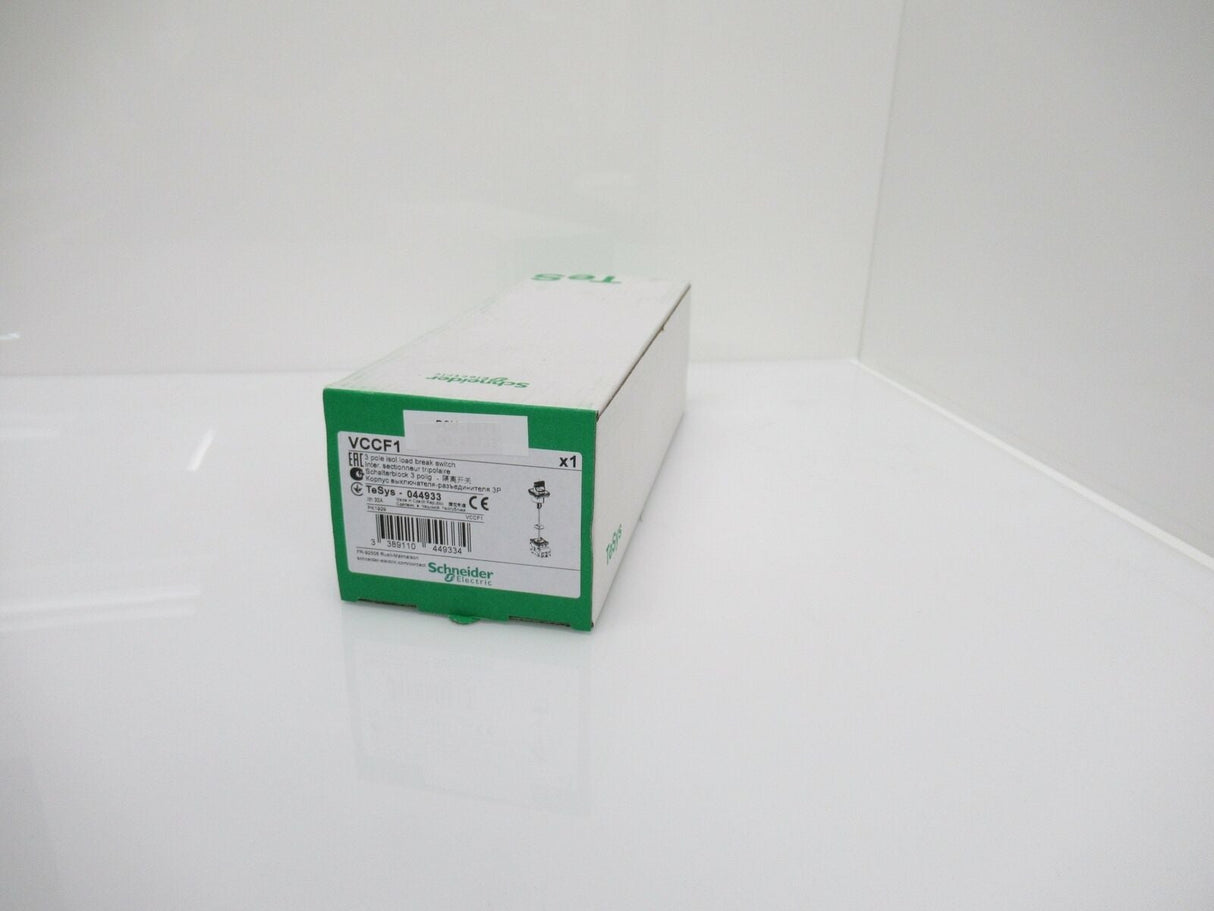

Schneider Electric VCCF1 Main Disconnect Switch, 32A
Schneider Electric VCCF1 Main Disconnect Switch, 32A is backordered and will ship as soon as it is back in stock.
🚚 We Ship Worldwide! Get your order delivered anywhere.
🌎 No Borders, Just Shipping! We deliver to your doorstep—anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
| Range | TeSys |
|---|---|
| Product Name | TeSys VARIO |
| Device Short Name | VCCF |
| Product Type | Emergency stop switch disconnector |
| Device Composition | Shaft extension Switch Handle |
|---|---|
| Mounting Support | Handle door Switch symmetrical rail Switch plate |
| Mounting Method | By 4 screws handle By clips switch By screws switch |
| Performance Level | High performance |
| Number of Poles | 3P |
| Contact Type and Composition | 3 NO |
| [Ue] IEC Rated Operational Voltage | 690 V AC 50/60 Hz |
| IEC Rated Operational Power in W | 11 kW 500 V AC-23A) 15 kW 690 V AC-23A) 7.5 kW 500 V AC-3) 7.5 kW 690 V AC-3) 1.5 kW 230...240 V AC-3) 5.5 kW 230...240 V AC-23A) 11 kW 400...415 V AC-23A) 7.5 kW 400...415 V AC-3) |
| [Ie] Rated Operational Current | 21.8 A AC-23 Ue: 400 V |
| [Ith] Conventional Free Air Thermal Current | 32 A |
| [Ithe] Conventional Enclosed Thermal Current | 25 A |
| Making Capacity ( I Rms) | 320 A 400 V AC-21A 320 A 400 V AC-22A 320 A 400 V AC-23A |
| Breaking Capacity | 250 A 400 V AC-21A) 250 A 400 V AC-22A) 250 A 400 V AC-23A) |
| Rated Conditional Short Circuit Current | 10 kA 400 V 35 A aM 10 kA 400 V 35 A gG |
| [Icm] Rated Short Circuit Making Capacity | 1 kA 400 V at Ipeak |
| [Icw] Rated Short Time Withstand Current | 384 A 400 V 1 s |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Suitability for Isolation | Yes |
| Network Type | DC AC |
| Intermittent Duty Class | 30 |
| Control Type | Rotary handle |
| Rotary Handle Mounting Style | Extended |
| Handle Color | Red |
| Handle Front Plate Color | Yellow |
| Rotary Handle Padlocking | 1 to 3 padlocks 0.16…0.31 in (4…8 mm) |
| Marking | 0 - 1 |
| Mechanical Durability | 100000 cycles |
| Electrical Durability | 100000 cycles AC-21 30000 cycles DC-1...5 |
| IEC Terminal Connection | Power circuit screw clamp terminals 0.02 in² (10 mm²) solid Power circuit screw clamp terminals 0.01 in² (6 mm²) flexible - with cable end |
| Tightening Torque | Power circuit 18.59 lbf.in (2.1 N.m) screw clamp terminals |
