Delock 96382 Usb 2.0 Camera Module 5.04 Megapixel Lens Side Facing 80°
Delock 96382 Usb 2.0 Camera Module 5.04 Megapixel Lens Side Facing 80° is backordered and will ship as soon as it is back in stock.
🚚 We Ship Worldwide! Get your order delivered anywhere.
🌎 No Borders, Just Shipping! We deliver to your doorstep—anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

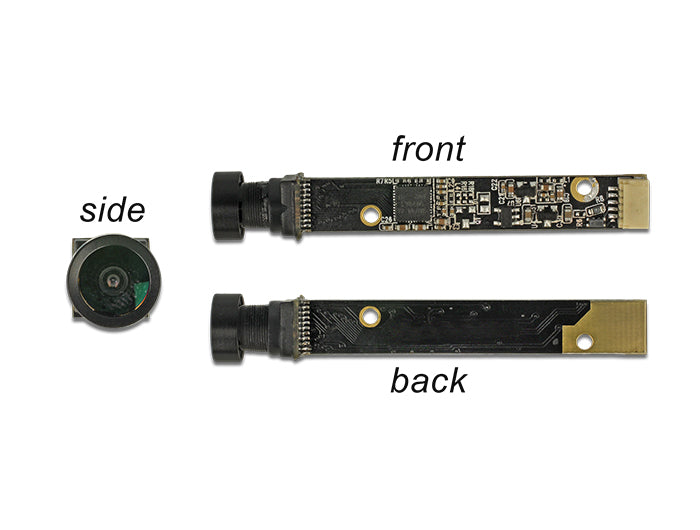

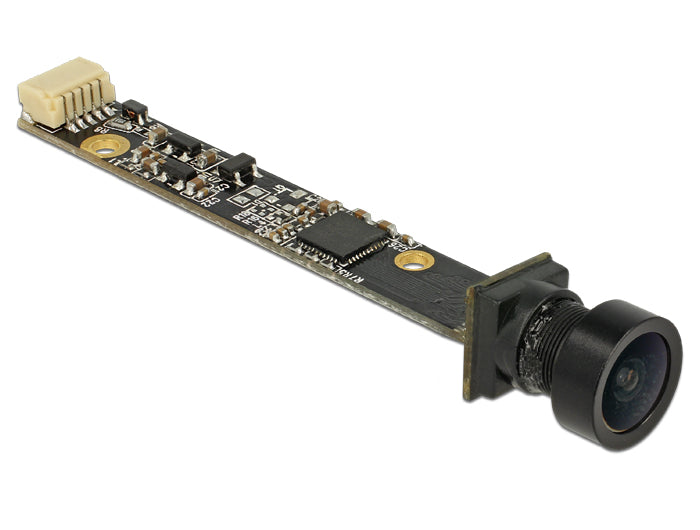

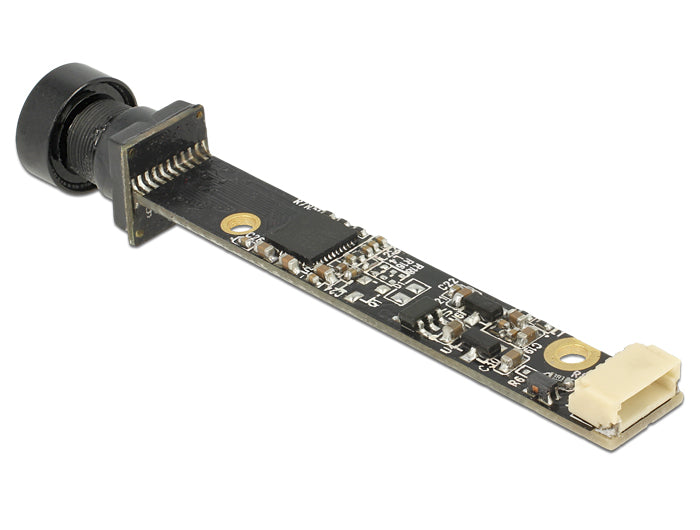

Delock 96382 Usb 2.0 Camera Module 5.04 Megapixel Lens Side Facing 80°
• Resolution: 5.04 megapixel
• With optical IR filter
• Supported formats:
MJPG (compressed)
YUYV: YUV 4:2:2
• Maximum resolution: QSXGA (2592 x 1944)
• Automatic image control functions including
- Automatic exposure control (AEC)
- Automatic white balance (AWB)
- Automatic band filter (ABF)
- Automatic black-level calibration (ABLC)
• Image quality controls including colour saturation, gamma,
sharpness (edge enhancement), lens correction, white pixel canceling,
noise canceling, and automatic 50/60 Hz luminance detection
• Supports scaling
• Power consumption:
Sensor suspend: 90 mA
Sensor active: 140 mA ± 5 mA @ 640 x 480 pixel
• Operating voltage: 5 V DC
• Operating temperature: 5 °C ~ 50 °C
• Relative humidity during operation: max. 80 %
• Sensor size: 1/4 inch
• Sensitivity: 0.6 V (lx s)
• Signal to noise ratio: 36 dB
• Dynamic range: 68 dB
• Fix focus: 0.3 m ~ infinite
• Lens: F/2.9
• Frame rates:
30 fps @ HVGA, VGA, XGA, 720p, QVGA
15 fps @ UXGA, 1080p, QXGA
7 fps @ 2592 x 1944
• Dimension (LxWxH): ca. 61.5 x 8.0 x 12.0 mm
