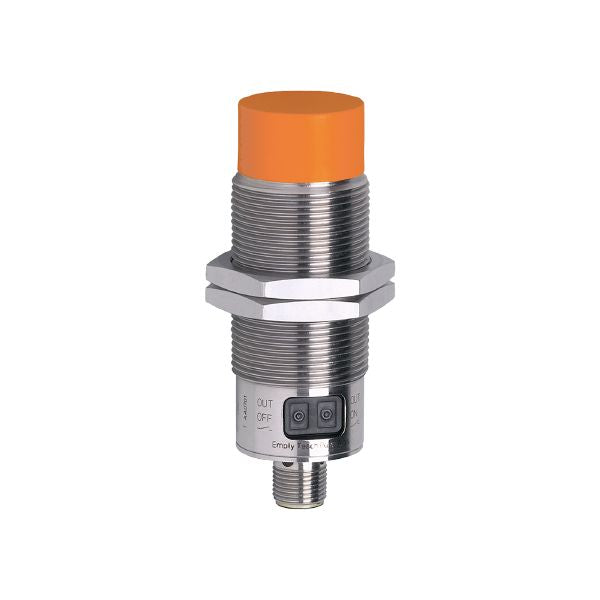

Ifm KI5086 Capacitive Sensor
Ifm KI5086 Capacitive Sensor is backordered and will ship as soon as it is back in stock.
🚚 We Ship Worldwide! Get your order delivered anywhere.
🌎 No Borders, Just Shipping! We deliver to your doorstep—anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Ifm KI5086 Capacitive Sensor
| Electrical design | PNP/NPN; (Automatic load detection PNP/NPN) |
|---|---|
| Output function | normally open / closed; (selectable) |
| Sensing range [mm] | 15 |
| Communication interface | IO-Link |
| Housing | Threaded type |
| Dimensions [mm] | M30 x 1.5 / L = 90 |
| Operating voltage [V] | 10...30 DC; (10...36 DC (60 °C)) |
|---|---|
| Current consumption [mA] | 18 |
| Protection class | III |
| Reverse polarity protection | yes |
| Measuring principle | capacitive |
| Electrical design | PNP/NPN; (Automatic load detection PNP/NPN) |
|---|---|
| Output function | normally open / closed; (selectable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 10 |
| Short-circuit proof | yes |
| Overload protection | yes |
| Sensing range [mm] | 15 |
|---|
| Hysteresis [% of Sr] | 1...15 |
|---|---|
| Switch-point drift [% of Sr] | -20...20 |
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM1 (4,8 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 CDV | ||||
| Profiles | Smart Sensor | ||||
| SIO mode | yes | ||||
| Min. process cycle time [ms] | 101 | ||||
| Supported DeviceIDs |
|
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 65; IP 67 |
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Vibration resistance |
|
||||||||||
| Shock resistance |
|
||||||||||
| MTTF [years] | 622 |
| Weight [g] | 118.8 |
|---|---|
| Housing | Threaded type |
| Mounting | non-flush mountable |
| Dimensions [mm] | M30 x 1.5 / L = 90 |
| Thread designation | M30 x 1.5 |
| Material | housing: stainless steel (1.4404 / 316L); Pushbuttons: TPE-U; cover: PBT; LED window: PEI |
| Display |
|
||
|---|---|---|---|
| Teach function | yes | ||
| Electronic lock | yes |
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connector: 1 x M12; coding: A |
