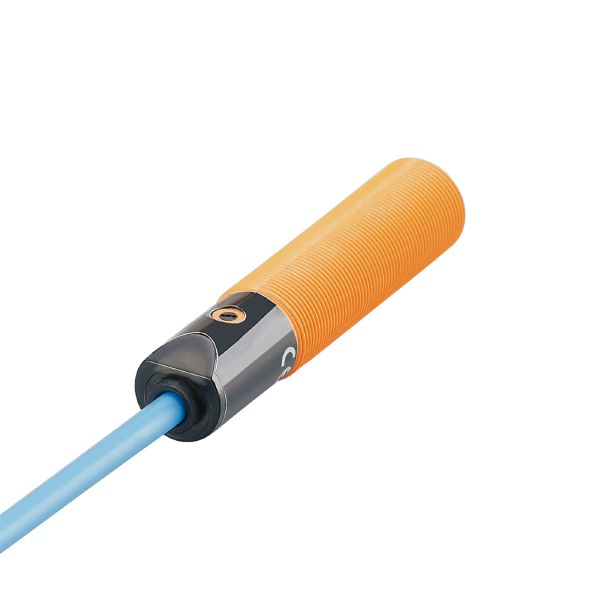

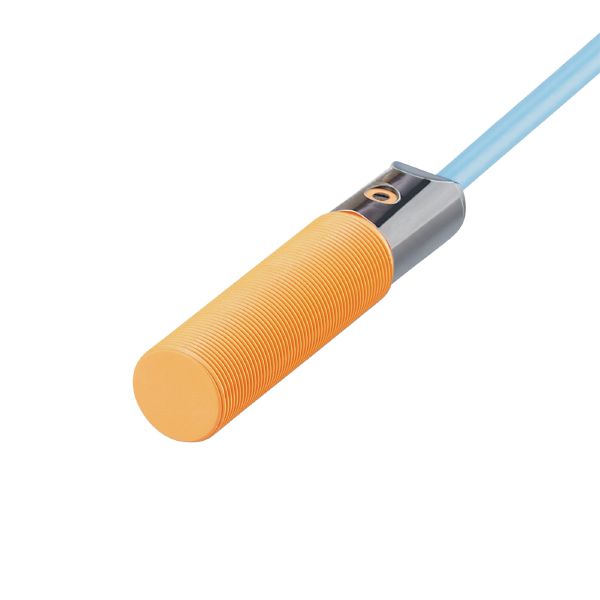

Ifm KG5079 Capacitive Namur Sensor
| Electrical design | NAMUR |
|---|---|
| Output function | normally closed |
| Sensing range [mm] | 8 |
| Housing | Threaded type |
| Dimensions [mm] | M18 x 1 / L = 84 |
| Connection at circuit amplifier | yes |
|---|---|
| Switching amplifiers | connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW |
| Nominal voltage DC [V] | 8.2; (1kΩ) |
| Supply voltage DC [V] | 7.5...15 |
| Current consumption [mA] | < 1; (disabled; conductive: > 2,2) |
| Protection class | II |
| Electrical design | NAMUR |
|---|---|
| Output function | normally closed |
| Switching frequency DC [Hz] | 4 |
| Sensing range [mm] | 8 |
|---|---|
| Sensing range adjustable | yes |
| Factory setting sensing range [mm] | 8 |
| Real sensing range Sr [mm] | 8 ± 10 % |
| Correction factor | glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2 |
|---|---|
| Hysteresis [% of Sr] | 1...15 |
| Switch-point drift [% of Sr] | -15...15 |
| Ambient temperature [°C] | -20...60 |
|---|---|
| Protection | IP 67 |
| Approval | BVS 13 ATEX E009 X; IECEx BVS 13.0015 X | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ATEX marking |
|
||||||||||
|
|
|||||||||||
| EMC |
|
||||||||||
| Shock resistance |
|
||||||||||
| MTTF [years] | 503 |
| Max. internal capacitance [nF] | 11.5 |
|---|---|
| Max. internal inductance [µH] | 3 |
| Weight [g] | 320 |
|---|---|
| Housing | Threaded type |
| Mounting | non-flush mountable |
| Dimensions [mm] | M18 x 1 / L = 84 |
| Thread designation | M18 x 1 |
| Material | PBT |
| Display |
|
|---|
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connection | Cable: 6 m, PVC; 2 x 0.5 mm² |
|---|
