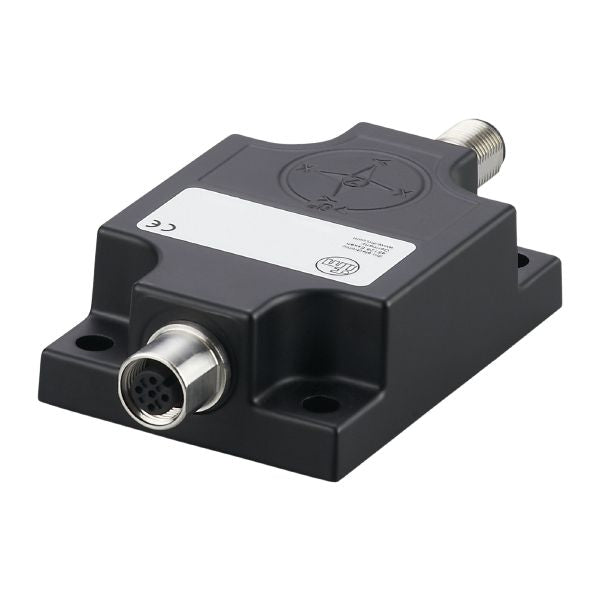

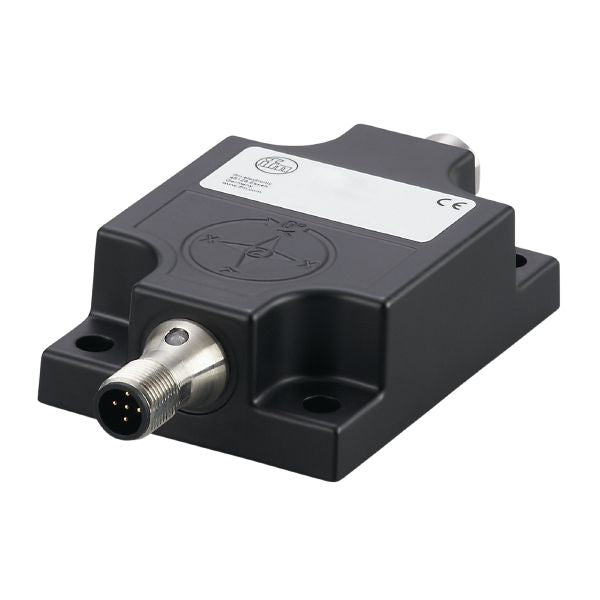

Ifm JD2120 Inclination Sensor

Electrical Data:

• Operating Voltage: 9...30 V DC
• Current Consumption: < 65 mA
• Min. Insulation Resistance: 100 MΩ (500 V DC)
• Protection Class: III
• Reverse Polarity Protection: Yes

Measuring/Setting Range:

• Measuring Range:
  • Acceleration: ±4 g
  • Vehicle Yaw Rate: ±500°/s
• Hysteresis: ≤ ±0.05°
• Repeatability: ±0.05°
• Resolution: 0.01° (configurable)
• Temperature Coefficient: ≤ ±0.008°/K
• Dynamic Accuracy: ±0.5°
• Static Accuracy: ±0.3°

Interfaces:

• Communication: CAN (1 interface)
• Terminating Resistor: Internal, configurable
• Protocol: CANopen
• Factory Settings:
  • Baud Rate: 125 kBit/s
  • Node ID: 10
  • Version: CiA DS301 V4.2.0, DSP-410 V2.0.0, CiA 306 V1.3.0

Operating Conditions:

• Ambient Temp: -40...85°C
• Storage Temp: -40...85°C
• Protection: IP 67, IP 68, IP 69K

Tests / Approvals:

• EMC: DIN EN 61000-6-2, 61000-6-4
• Shock Resistance: DIN EN 60068-2-27
• Vibration Resistance: DIN EN 60068-2-6
• MTTF: 260 years

Mechanical Data:

• Weight: 210 g
• Dimensions: 27 x 59 x 118.5 mm
• Material: Housing: Diecast aluminum, Potting: Polyurethane resin
• Mounting Orientation: Horizontal

Displays / Operating Elements:

• Display:
  • Preoperational: 1 x Green LED
  • Operational: 1 x Green Flashing LED
  • Fault: 1 x Red LED

Accessories:

• Items Supplied: 2 x Protective cover

Remarks:

• Pack Quantity: 1 pcs

Electrical Connection - CAN-In / Out:

• Connector: 1 x M12, A coding
