25B-D4P0N104 Allen Bradley PowerFlex 525 AC Drive 2HP 3PH 480V Ser. A

25B-D4P0N104 25BD4P0N104

Allen Bradley

PowerFlex 525 AC Drive, With Embedded EtherNet/IP And Safety, 480V AC, 3 Phase, 2HP (1.5kW) Normal & Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter, Series A

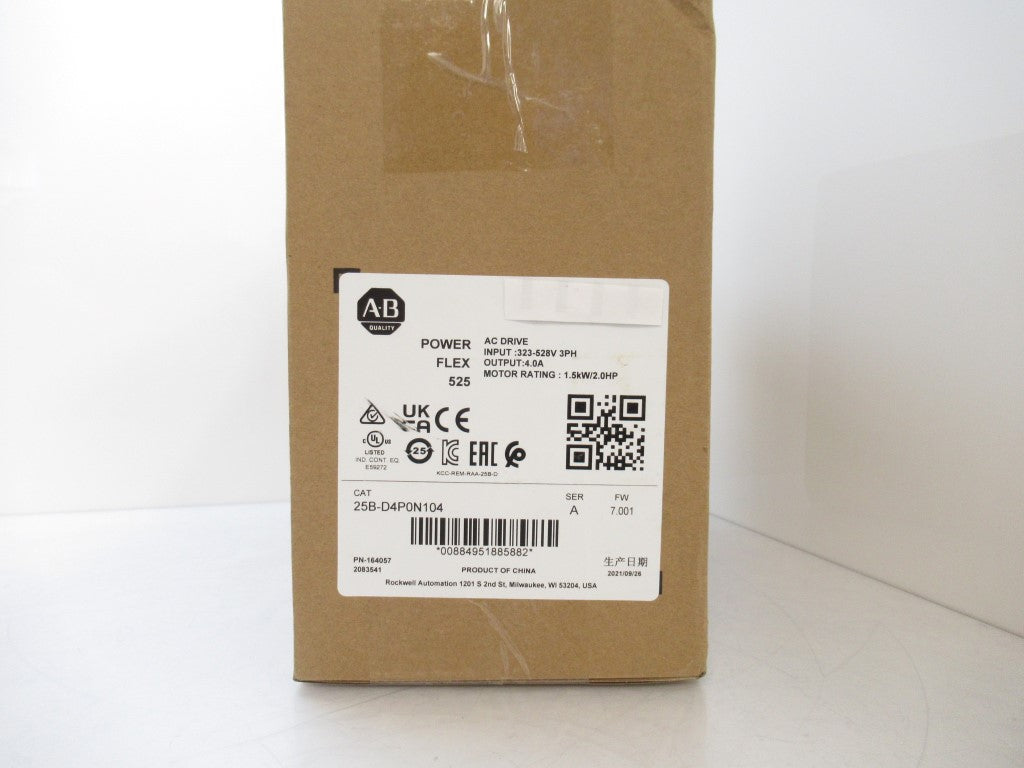

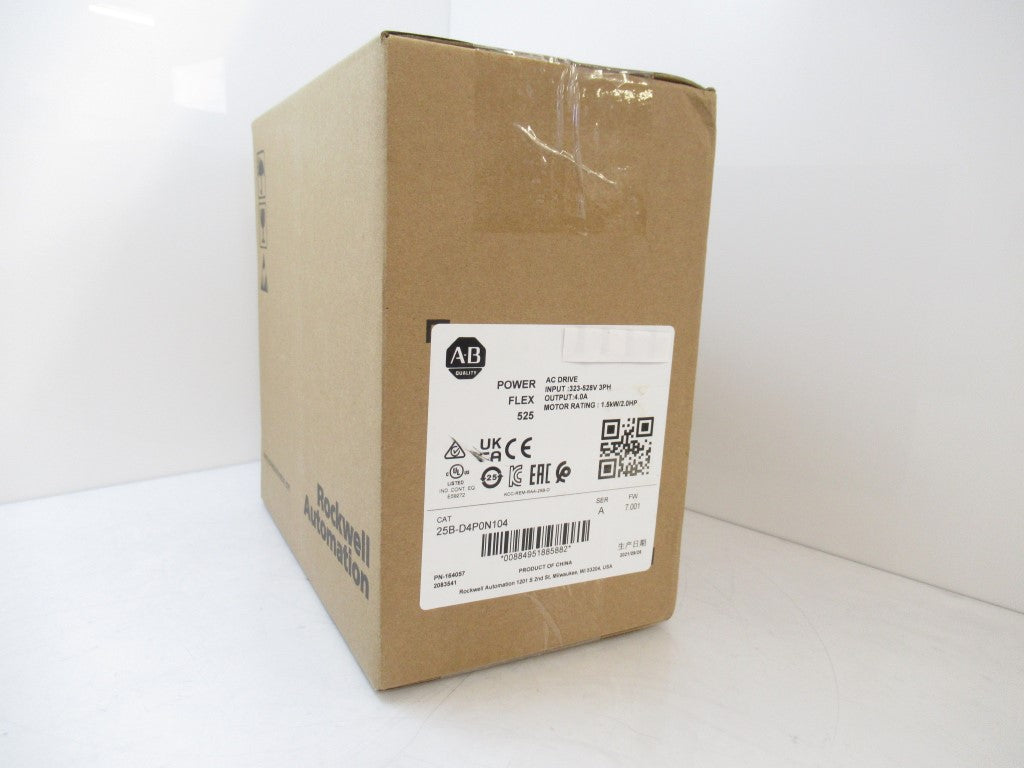

(Surplus In Box 2021)

• Powerflex 525 AC Drive, Three-Phase, Open Type Enclosure, No Filter, It Features An Innovative, Modular Design Offering Fast And Easy Installation And Configuration, These Cost-Effective Compact Drives Come With Embedded Ethernet/IP Communications, Safety, USB Configuration, And A High Ambient Operating Temperature, It Also Provides A Variety Of Motor Control Including Volts Per Hertz, Sensorless Vector Control And Closed-Loop Velocity Vector Control, Making These Drives Ideal For A Vast Array Of Applications.

Description

• Sub Brand: PowerFlex 525
• Item Name: AC Drive with Control Unit And PC Connection
• Type: AC Drive
• Series: A
• Voltage Rating: 380 - 480 V, 480 V
• Amperage Rating: 4 A
• Power Rating: 1.5 kW
• HP Rating: 2 HP
• Phase: 3
• Output Frequency Range: 500 Hz
• Dimensions: 72 mm W x 172 mm D x 152 mm H
• Frequency Rating: 50/60 Hz
• Inputs: 2 Analog, 7 Digital
• Output: 1 Analog, 2 Digital
• Power Factor: 0.98
• Connection: Fixed Terminal Block
• Mounting: Panel Mount
• Enclosure Type: NEMA 1, IP20
• Standards: C-TICK, CE, CUL, GOST, KC, MARINE, UL
• Application: Supporting Protocol For DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIBUS
• UPC: 00884951885882
