Ifm | SKU:
IF-EVCA43-E

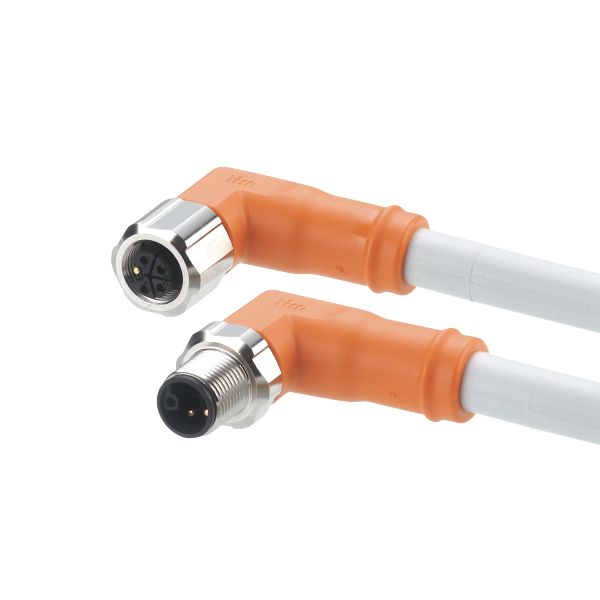

Ifm EVCA43 Connection Cable
$110.00 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm EVCA43 Connection Cable is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm EVCA43 Connection Cable
$110.00 USD
Unit price
/
Unavailable
Application
| System | Free from silicone; Halogen-free; gold-plated contacts; Drag chain suitability |
|---|---|
| Design | Power cable, L-coded |
| Application | Industrial applications |
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | 63 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 16 |
Operating conditions
| Ambient temperature [°C] | -25...90 | |
|---|---|---|
| Note on ambient temperature |
|
|
| Storage temperature [°C] | -25...55 | |
| Storage humidity [%] | 10...100 | |
| Other climatic conditions for storage according to stated class |
|
|
| Protection | IP 65; IP 67; IP 69K |
Mechanical data
| Weight [g] | 1050.2 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Molded-body material | TPU (urethane) | ||||||||
| Material nut | brass, nickel-plated | ||||||||
| Sealing material | FKM | ||||||||
| Drag chain suitability | yes | ||||||||
| Drag chain suitability |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector: 1 x M12, angled; coding: L; Moulded body: TPU (urethane), orange; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm |
Electrical connection - Connection
| Connection | Cable: 5 m, PUR, Halogen-free, grey, Ø 10.1 mm; 5 x 2.5 mm² (141 x Ø 0.15 mm ) |
|---|
Electrical connection - Socket
| Connector: 1 x M12, angled; coding: L; Moulded body: TPU (urethane), orange; Locking: brass, nickel-plated; sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm |
