Ifm | SKU: IF-EVCA08-E | Barcode: DOES NOT APPLY

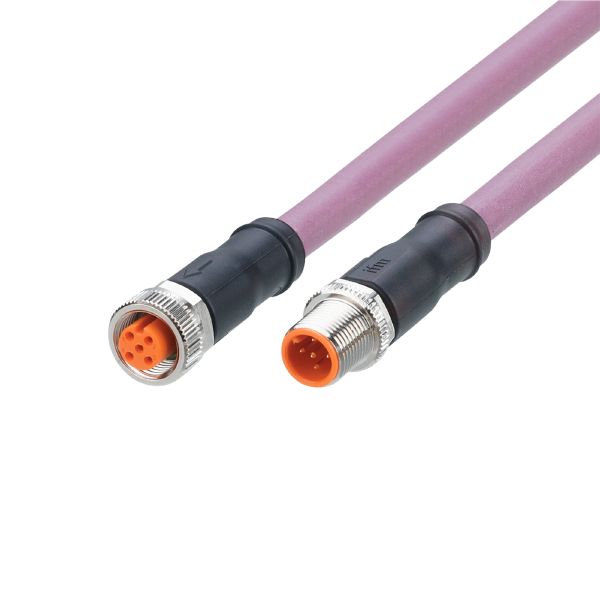

Ifm EVCA08 Connection Cable

Name: Ifm EVCA08 Connection Cable
Availability: BackOrder

$45.56 USD

Shipping calculated at checkout.

Ifm EVCA08 Connection Cable is backordered and will ship as soon as it is back in stock.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Application

System	Halogen-free; gold-plated contacts; screened cable; Drag chain suitability
Application	CAN bus

Electrical data

Operating voltage [V]	32 DC; (wires 4+5: 5 V)
Max. current load total [A]	4; (wires 4+5: 0,05 A)

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67; IP 68; IP 69K

Mechanical data

Weight [g]

59.7

Molded-body material

TPU (urethane)

Material nut

brass, nickel-plated

Sealing material

FKM

Drag chain suitability

yes

Drag chain suitability

Bending radius for flexible applications	min. 10 x cable diameter
Travel speed	max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
Bending cycles	> 5 Mio.
Torsional strain	± 180 °/m

Remarks

The CAN bus terminating resistor (120 Ω) is integrated in the M12 connector.

Pack quantity

1 pcs.

Electrical connection - plug

	Connector: 1 x M12, straight; coding: A; Moulded body: TPU (urethane), black; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

Electrical connection

Connection	Cable: 0.2 m, PUR, Halogen-free, lilac, Ø 8.4 mm, screened; RD / BK: 2 x 0.75 mm² (42 x Ø 0.15 mm ) + WH / BU: 2 x 0.5 mm² (19 x Ø 0.19 mm ) + screen: 1 x 0.75 mm² (42 x Ø 0.15 mm )

Electrical connection - Socket

	Connector: 1 x M12, straight; coding: A; Moulded body: TPU (urethane), black; Locking: brass, nickel-plated; sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
