Ifm | SKU:
IF-EVC854-E

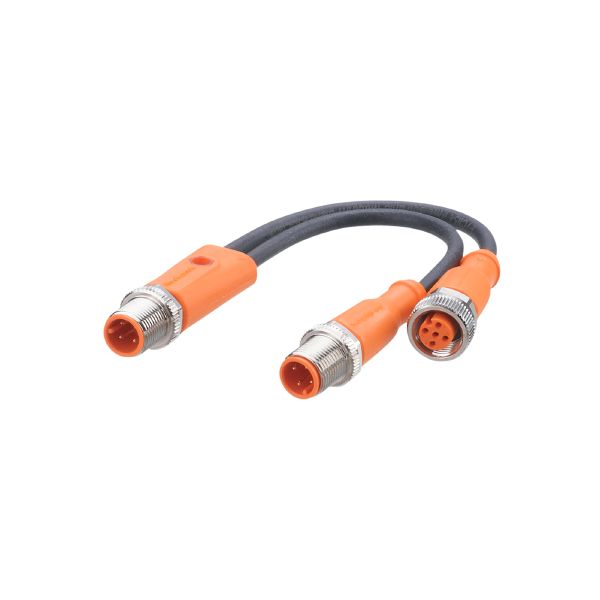

Ifm EVC854 Y Connection Cable
$45.56 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm EVC854 Y Connection Cable is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm EVC854 Y Connection Cable
$45.56 USD
Unit price
/
Unavailable
Application
| System | Free from silicone; Halogen-free; gold-plated contacts; Drag chain suitability |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | 24 DC |
|---|---|
| Protection class | II |
| Max. current load total [A] | 3 |
Operating conditions
| Ambient temperature [°C] | -25...90 |
|---|---|
| Protection | IP 65; IP 67; IP 68; IP 69K |
Mechanical data
| Weight [g] | 53 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Molded-body material | TPU (urethane) / TPU (urethane) | ||||||||||
| Material nut | brass, nickel-plated | ||||||||||
| Sealing material | Viton | ||||||||||
| Connector type | M12 | ||||||||||
| Drag chain suitability | yes | ||||||||||
| Drag chain suitability |
|
Remarks
| Notes | Please see the technical note under "Downloads" |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug C
| Connector: M12, straight; coding: A; Moulded body: TPU (urethane), orange; Locking: knurled nut, brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Take into account the maximum value of the counterpart! |
Electrical connection
| Connection | Cable: 0.1 m, PUR, Halogen-free, black, Ø 4.9 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm ) + 5 x 0.34 mm² (42 x Ø 0.1 mm ) |
|---|
Electrical connection - plug A
| Connector: M12, straight; coding: A; Moulded body: TPU (urethane), orange; Locking: knurled nut, brass, nickel-plated; sealing: Viton; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Take into account the maximum value of the counterpart! |
Electrical connection - Socket B
| Connector: M12, straight; coding: A; Moulded body: TPU (urethane), orange; Locking: knurled nut, brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Take into account the maximum value of the counterpart! |
