Ifm | SKU:
IF-EVC814-E

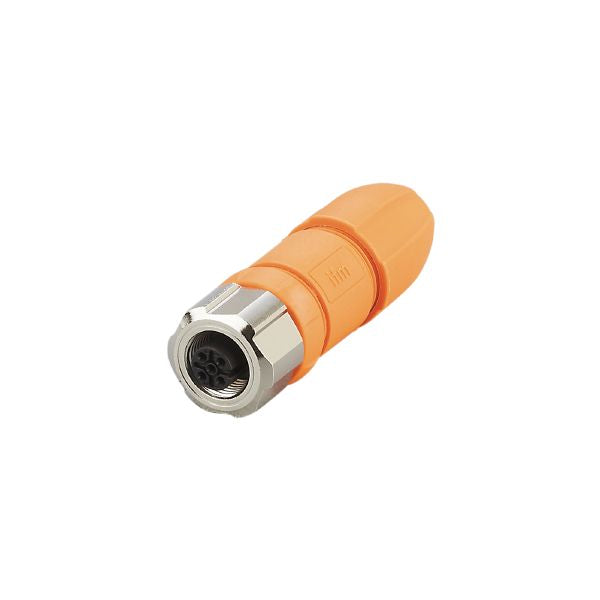

Ifm EVC814 Female Wirable Connectors
$23.33 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm EVC814 Female Wirable Connectors is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm EVC814 Female Wirable Connectors
$23.33 USD
Unit price
/
Unavailable
Application
| System | Free from silicone; gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 60 AC/DC |
|---|---|
| Protection class | II |
| Max. current load total [A] | 4; (...40 °C) |
Operating conditions
| Ambient temperature [°C] | -25...90 | |
|---|---|---|
| Storage temperature [°C] | -25...55 | |
| Storage humidity [%] | 10...100 | |
| Other climatic conditions for storage according to stated class |
|
|
| Protection | IP 65; IP 67; IP 68; IP 69K |
Mechanical data
| Weight [g] | 42.6 |
|---|---|
| Molded-body material | PA 6.6 |
| Material nut | brass, nickel-plated |
| Sealing material | FKM |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| screw terminals: 0.25...1 mm²; Cable sheath: Ø 3.5...6 mm; AWG 23...17 |
Electrical connection - Socket
| Connection | Connector: 1 x M12, straight; coding: A; Moulded body: PA 6.6, orange; Locking: brass, nickel-plated; sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm; Take into account the maximum value of the counterpart! |
|---|
