Ifm | SKU: IF-ENC10A-E | Barcode: DOES NOT APPLY

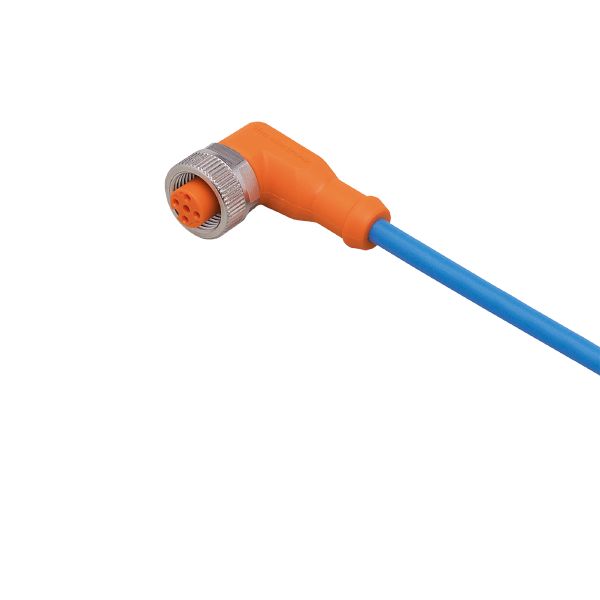

Ifm ENC10A Female Cordset

Name: Ifm ENC10A Female Cordset
Availability: BackOrder

$26.67 USD

Shipping calculated at checkout.

Ifm ENC10A Female Cordset is backordered and will ship as soon as it is back in stock.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Application

System	Free from silicone; Halogen-free; gold-plated contacts
Free from silicone	yes
Compatible with paint	yes

Electrical data

Operating voltage [V]	< 30 DC
Protection class	II
Max. input power [mW]	group II: 1000; group III: 1000
Max. current load total [A]	1

Operating conditions

Ambient temperature [°C]

-25...85

Note on ambient temperature

for use in hazardous areas: ambient temperature according to unit marking

Protection

IP 67; (when used outside the hazardous area: IP 68 / IP 69K)

Tests / approvals

Approval	BVS 11 ATEX E 009 X; IECEx BVS 11.0002 X
ATEX marking	II 1G Ex ia IIB T6 Ga Ta: -25...75°C
	II 2G Ex ia IIC T6 Gb Ta: -25...75°C
	II 1G Ex ia IIB T5 Ga Ta: -25...85°C
	II 2G Ex ia IIC T5 Gb Ta: -25...85°C
	II 1D Ex ia IIIB T200 85°C Da Ta: -25...75°C
	II 1D Ex ia IIIB T200 95°C Da Ta: -25...85°C
	II 1D Ex ia IIIC T200 70°C Da Ta: -20...60°C

Safety classification

Max. internal capacitance [nF]	0.2
Max. internal inductance [µH]	4

Mechanical data

Weight [g]	108.8
Dimensions [mm]	26.5 x 15.5 x 36.5
Material	housing: TPU (urethane) orange; sealing: FKM
Material nut	brass, nickel-plated

Remarks

Special conditions for safe operation apply for use in hazardous areas.

Observe the corresponding notes in the operating instructions (Ex protection related part).

Pack quantity

1 pcs.

Electrical connection

	Cable: 2 m, PUR, Halogen-free, blue, Ø 4.9 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - Socket

Connection	Connector: 1 x M12, angled; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
