Ifm | SKU:
IF-EBC067-E

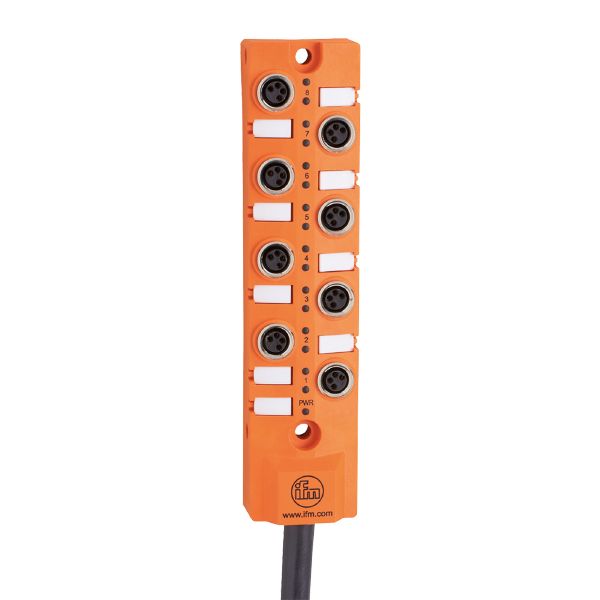

Ifm EBC067 Wiring Block
$262.22 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm EBC067 Wiring Block is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm EBC067 Wiring Block
$262.22 USD
Unit price
/
Unavailable
Application
| System | gold-plated contacts; Drag chain suitability |
|---|
Electrical data
| Operating voltage [V] | 10...30 DC; (cULus - Class 2 source required) |
|---|---|
| Protection class | III |
| Max. current load per module/slot [A] | 2 |
| Max. current load total [A] | 6 |
Outputs
| Electrical design | NPN |
|---|
Operating conditions
| Ambient temperature [°C] | -20...80 |
|---|---|
| Ambient temperature (moving) [°C] | -5...60 |
| Protection | IP 65; IP 67; IP 68 |
Mechanical data
| Weight [g] | 1248.5 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Dimensions [mm] | 20 x 30 x 129.5 | ||||||||
| Material | PBT-GF20; brass nickel-plated | ||||||||
| Molded-body material | PBT-GF 20 / brass, nickel-plated | ||||||||
| Number of ports splitter box | 8 | ||||||||
| Connector type | M8 | ||||||||
| Drag chain suitability | yes | ||||||||
| Drag chain suitability |
|
Displays / operating elements
| Display |
|
|---|
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 10 m, PUR, black, Ø 8.5 mm; 16 x 0.34 mm² (43 x Ø 0.1 mm ) + 2 x 0.75 mm² (21 x Ø 0.2 mm ) |
Electrical connection - slot
| Connection | Connector: 8 x M8; coding: A; Moulded body: PBT-GF 20 / brass, nickel-plated; Contacts: gold-plated |
|---|
