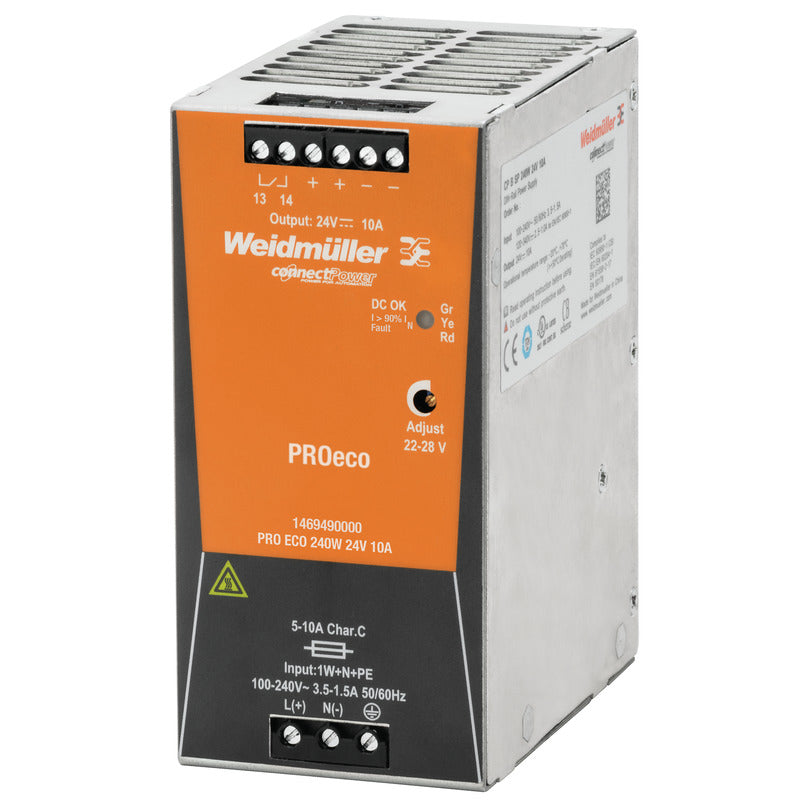

1469490000 Weidmuller Pro Eco Power Supply, Switch-Mode Power Supply

SKU TRA-2053-E
Original price $0 USD
Original price $168.75 USD - Original price $168.75 USD
Original price
Current price $168.75 USD
$168.75 USD - $168.75 USD
Current price $168.75 USD
Availability:
Only 2 left!
 More payment options

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Product Information

Input

AC current consumption 1,23 A - 230 V AC / 2,47 A - 110 V AC
AC input voltage range 85...264 V AC (derating at 100 V AC)
Connection system Screw connection
DC current consumption 1,18 A - 370 V DC / 2,4 A - 120 V DC
DC input voltage range 80...370 V DC (Derating - 120 V DC)
Frequency range AC 47...63 Hz
Input frequency 47...63 Hz
Input fuse (internal) Yes
Inrush current max. 15 A
Rated input voltage 100...240 V AC (wide-range input)
Recommended back-up fuse 4 A / DI, safety fuse
10 A, Char. B, circuit breaker
3...4 A, Char. C, circuit breaker

Surge protection

Varistor

Output

Capacitive load unrestricted
Connection system Screw connection
Nominal output current for Unom 10 A - 55 °C
Output power 240 W
Output voltage 24 V
Output voltage 22...28 V (adjustable via potentiometer)
Output voltage, max. 28 V
Output voltage, min. 22 V
Output voltage, note (adjustable via potentiometer)
Overload protection Yes
Parallel connection option yes, max. 5
Protection against inverse voltage Yes
Ramp-up time ≤ 100 ms
Rated output voltage 24 V DC ± 1 %
Residual ripple, breaking spikes < 50 mVPP - 24 V DC, IN

Dimensions And Weights

Depth 100 mm
Depth (inches) 3.937 inch
Height 125 mm
Height (inches) 4.921 inch
Net weight 1,016 g
Width 60 mm
Width (inches) 2.362 inch
