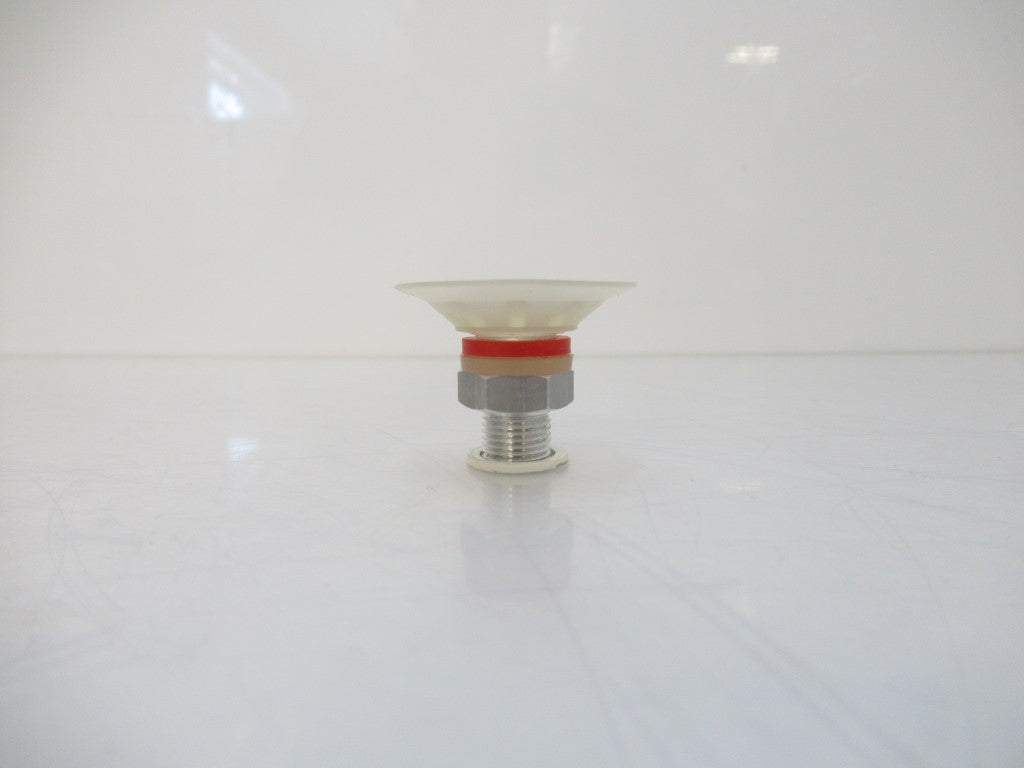

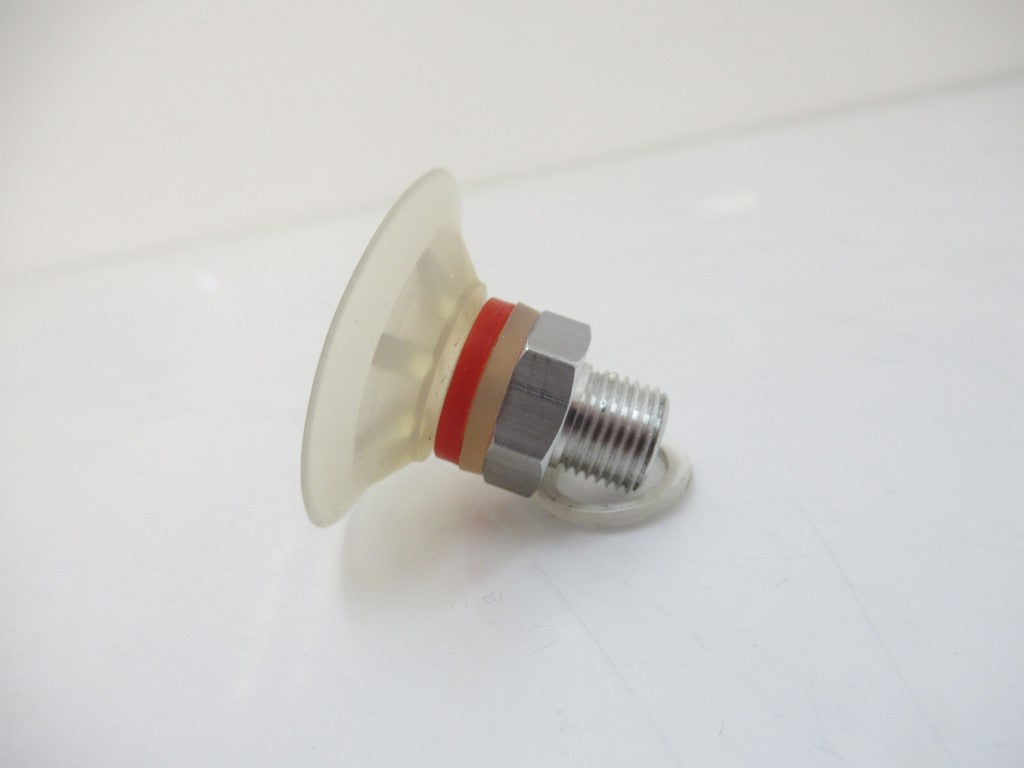

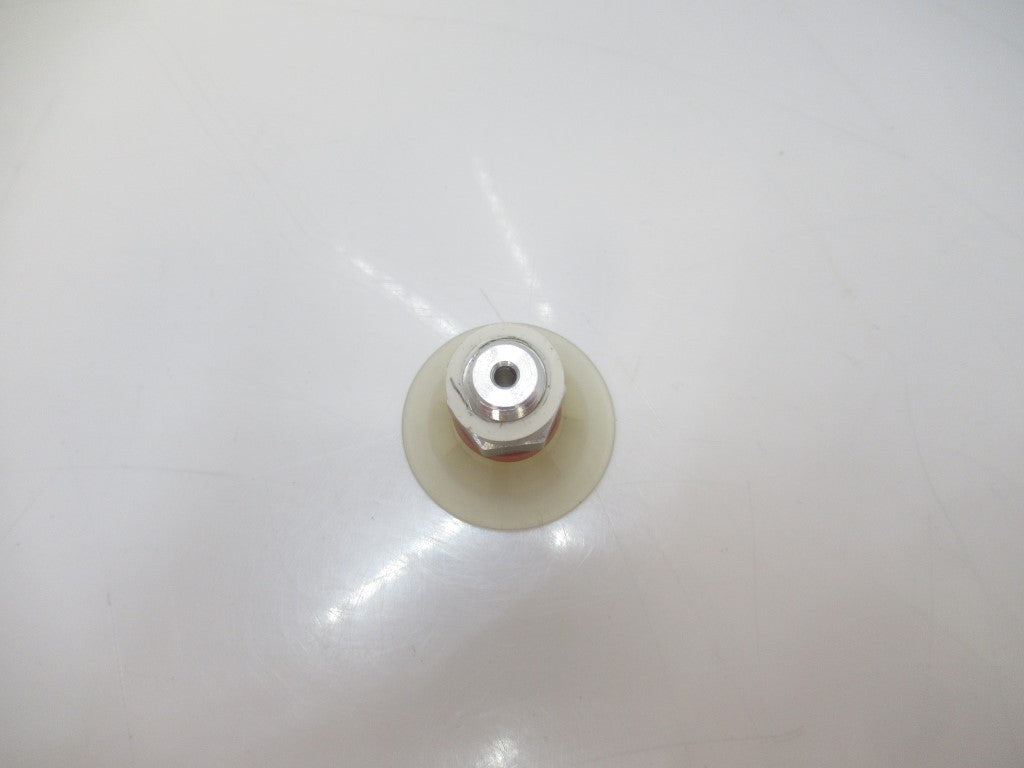

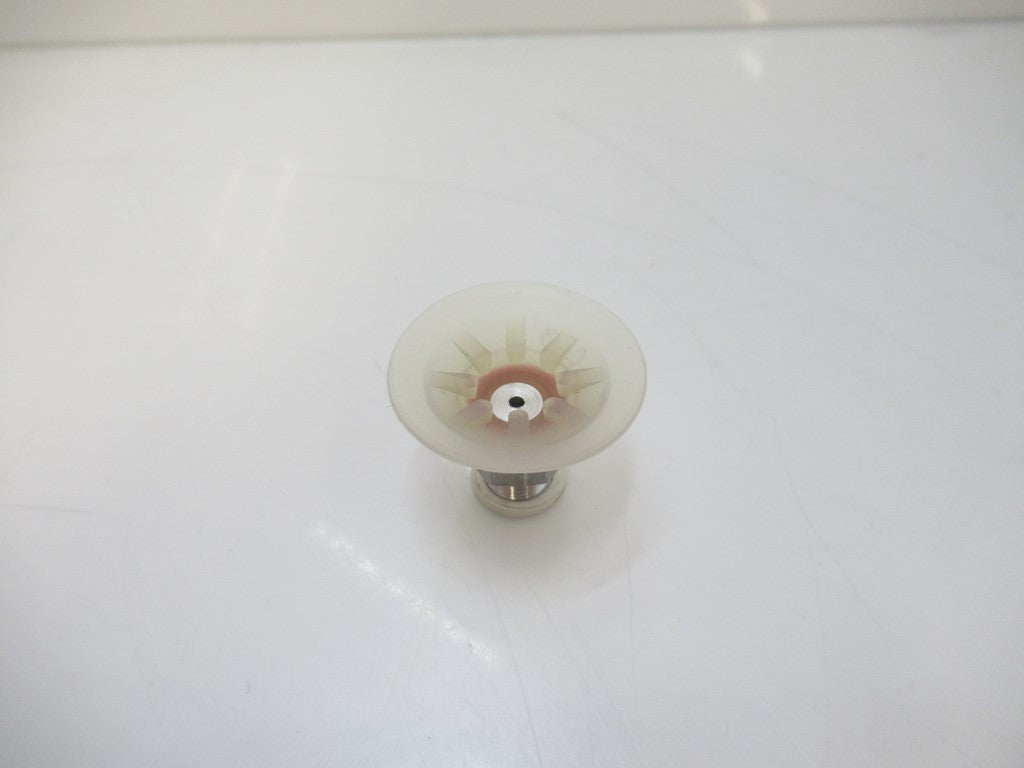

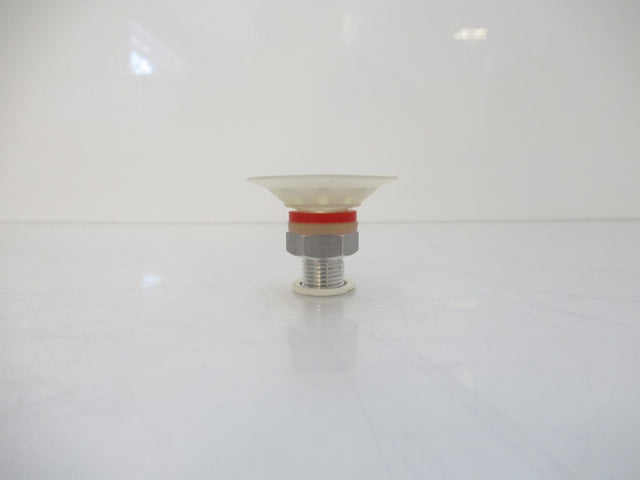

VSAG30NBR Coval Suction Cups with 1.5 Bellows Ø 10 To 150 mm
VSAG30NBR
Coval
Series VSGA, Suction Cups with 1.5 Bellows Ø 10 To 150 mm
(Sold By Unit New)
The VSAG series 1.5 bellows suction cups are recommended for gripping
concave of convex products as well as sensitive products due to the
cushioning effect of the bellows. The bellows also compensate for height
variations in product gripping.
Description
- Form : 1.5 Bellows
- Type Of Product (TYPP): Suction Cup
- Suction Cup Type (TVE): Round
- Diameter (ØA): 30mm
- Suction Cup Stroke (F): 17mm
- Tensile Force (FT): 3.42LBF
- Slipping Force (FG): 1.71LBF
- Material (MAT): Nitrile
- Height (H): 30.5mm
- Diameter (Ø D): 20mm
- Internal Neck Diameter (ØD): 6mm
- Depth Of Housing Fitting (B): 7mm
- Bellow Diameter (ØA): 36mm
- Weight (): 9.1g
- Internal Volume (VI): 4cm3
