Ifm | SKU:
IF-TW2000-E

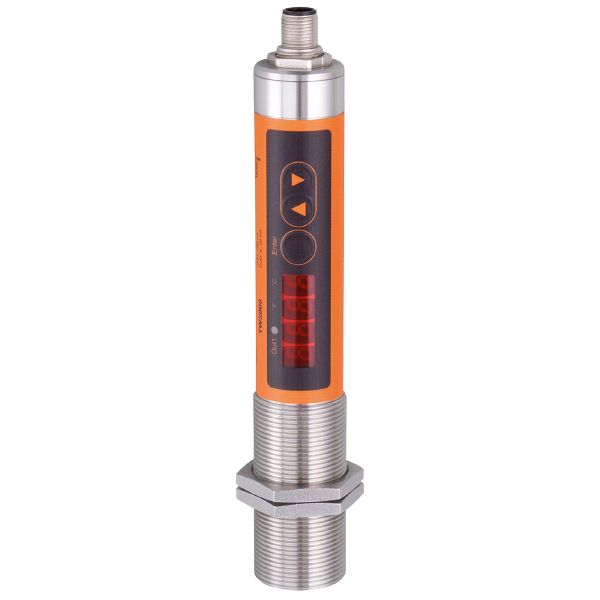

Ifm TW2000 Infrared Temperature Sensor
$1,517.78 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm TW2000 Infrared Temperature Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm TW2000 Infrared Temperature Sensor
$1,517.78 USD
Unit price
/
Unavailable
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 1; Number of analog outputs: 1 | ||
|---|---|---|---|
| Measuring range |
|
||
| Communication interface | IO-Link |
Application
| Application | asphalt; coated metal; liquids; glass; rubber; wood; ceramics; plastics; lacquers; food products; paper; fabric |
|---|
Electrical data
| Operating voltage [V] | 18...32 DC; (to SELV/PELV) |
|---|---|
| Current consumption [mA] | < 50 |
| Min. insulation resistance [MΩ] | 100; (50 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | < 1 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1; Number of analog outputs: 1 |
|---|
Inputs
| Test input | type 3 (IEC 61131-2) |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analog signal; IO-Link; (configurable) |
| Electrical design | PNP |
| Number of digital outputs | 1 |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 150 |
| Number of analog outputs | 1 |
| Analog current output [mA] | 4...20 |
| Max. load [Ω] | 500 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Short-circuit proof | yes |
| Overload protection | yes |
Monitoring range
| Wave length range [µm] | 8...14 |
|---|
Measuring/setting range
| Measuring range |
|
||
|---|---|---|---|
| Set point SP |
|
||
| Reset point rP |
|
||
| Analog start point |
|
||
| Analog end point |
|
||
| In steps of |
|
Resolution
| Resolution of switching output [K] | 0.5 |
|---|---|
| Resolution of analog output [K] | 0.2; (+ 0.03 % of the set measuring span) |
| Resolution of display [K] | 0.5 |
Accuracy / deviations
| Accuracy [K] | < ± 1 %; (of measured value, min. 2 K (degree of emission = 1, T = 23 °C)) |
|---|---|
| Repeatability [K] | 1 |
Reaction times
| Response time [ms] | 100 |
|---|
Software / programming
| Adjustment of the switch point | Programming buttons |
|---|---|
| Parameter setting options | Analog range; normally open / closed; switch-on/switch-off delay; Damping; Peakhold; emissivity; simulation function |
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| SIO mode | yes | ||||
| Required master port class | A | ||||
| Process data analog | 16 | ||||
| Process data binary | 1 | ||||
| Min. process cycle time [ms] | 3.6 | ||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | 0...65 |
|---|---|
| Storage temperature [°C] | -20...80 |
| Max. relative air humidity [%] | 95; (non condensing) |
| Protection | IP 65 |
Tests / approvals
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
