Ifm | SKU:
IF-OJ5114-E

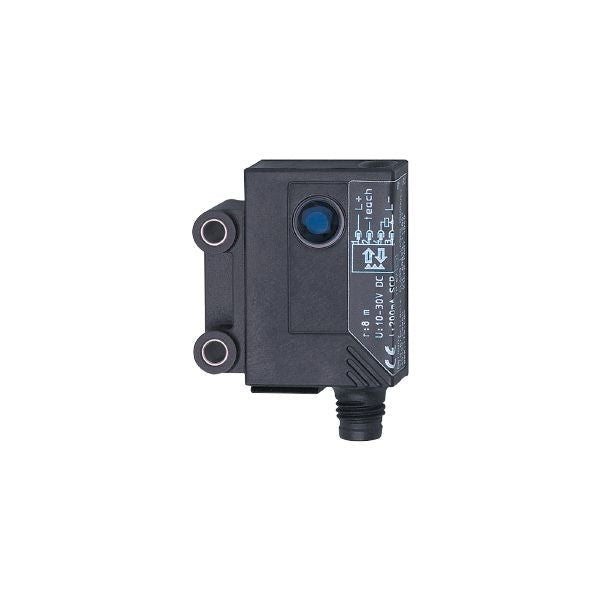

Ifm OJ5114 Retro-Reflective Laser Sensor
$294.44 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm OJ5114 Retro-Reflective Laser Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm OJ5114 Retro-Reflective Laser Sensor
$294.44 USD
Unit price
/
Unavailable
Product characteristics
| Type of light | red light |
|---|---|
| Laser protection class | 1 |
| Housing | rectangular |
Application
| System | polarization filter |
|---|---|
| Function principle | Retro-reflective sensor |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 15 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 650 |
| Typ. lifetime [h] | 50000 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 2000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Range referred to prismatic reflector [m] | 8; (Prismatic reflector 50 x 50 mm E20722) |
|---|---|
| Range adjustable | yes |
| Diameter of the smallest detectable object [mm] | 2.5; (0,1 m; 2,5 m: 4; 5 m: 8) |
| Max. light spot diameter [mm] | 12 |
| Light spot dimensions refer to | at maximum range |
| Polarization filter available | yes |
Operating conditions
| Ambient temperature [°C] | -10...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Laser protection class | 1 | ||||||||||
| Notes on laser protection |
|
||||||||||
| MTTF [years] | 706 |
Mechanical data
| Weight [g] | 27.9 | |
|---|---|---|
| Housing | rectangular | |
| Dimensions [mm] | 35 x 24 x 11 | |
| Material | housing: ABS; LED window: SEPS; pushbutton: SEPS | |
| Lens material |
|
|
| Lens alignment | Front sensing |
Displays / operating elements
| Display |
|
||||||
|---|---|---|---|---|---|---|---|
| Electronic lock | yes |
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M8; coding: A |
|---|
Diagrams and graphs
|
excess gain graph
|
|
|---|
