Ifm | SKU:
IF-OJ5041-E

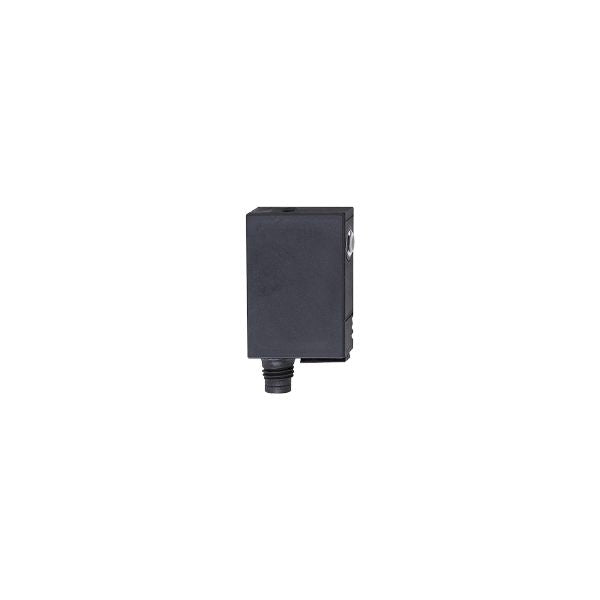

Ifm OJ5041 Through-Beam Laser Sensor Transmitter
$222.22 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm OJ5041 Through-Beam Laser Sensor Transmitter is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm OJ5041 Through-Beam Laser Sensor Transmitter
$222.22 USD
Unit price
/
Unavailable
Product characteristics
| Type of light | red light |
|---|---|
| Laser protection class | 1 |
| Housing | rectangular |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 12 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 650 |
| Typ. lifetime [h] | 50000 |
Outputs
| Overload protection | yes |
|---|
Monitoring range
| Transmitter / receiver | transmitter |
|---|---|
| Range [m] | < 1 |
| Range adjustable | no |
| Max. light spot diameter [mm] | 4 |
| Light spot dimensions refer to | at maximum range |
Operating conditions
| Ambient temperature [°C] | -10...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Laser protection class | 1 | ||||||||||
| Notes on laser protection |
|
||||||||||
| MTTF [years] | 918 |
Mechanical data
| Weight [g] | 27.55 | |
|---|---|---|
| Housing | rectangular | |
| Dimensions [mm] | 35 x 11 x 24 | |
| Material | housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS | |
| Lens material |
|
|
| Lens alignment | Side sensing |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M8; coding: A |
|---|
