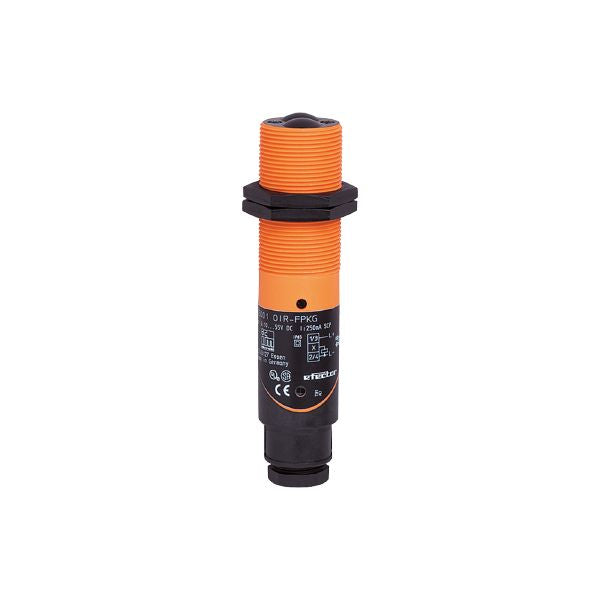

Ifm OI5007 Retro-Reflective Sensor
Ifm OI5007 Retro-Reflective Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Type of light | red light |
---|---|
Housing | Threaded type |
System | polarization filter |
---|---|
Function principle | Retro-reflective sensor |
Operating voltage [V] | 10...55 DC |
---|---|
Current consumption [mA] | 25; ((24 V)) |
Protection class | II |
Reverse polarity protection | yes |
Type of light | red light |
Wave length [nm] | 660 |
Electrical design | PNP |
---|---|
Output function | light-on/dark-on mode; (programmable) |
Max. voltage drop switching output DC [V] | 2.5 |
Permanent current rating of switching output DC [mA] | 250 |
Switching frequency DC [Hz] | 65 |
Short-circuit protection | yes |
Type of short-circuit protection | yes (non-latching) |
Overload protection | yes |
Range referred to prismatic reflector [m] | 0.15...2; (Prismatic reflector Ø 80 E20005) |
---|---|
Range adjustable | yes |
Max. light spot diameter [mm] | 200 |
Light spot dimensions refer to | at maximum range |
Polarization filter available | yes |
Ambient temperature [°C] | -25...60 |
---|---|
Protection | IP 65 |
EMC |
|
||
---|---|---|---|
MTTF [years] | 661 |
Weight [g] | 127 | |
---|---|---|
Housing | Threaded type | |
Dimensions [mm] | M30 x 1.5 / L = 125 | |
Thread designation | M30 x 1.5 | |
Material | PBT; PPO modified | |
Lens material |
|
Display |
|
---|
Items supplied |
|
---|
Pack quantity | 1 pcs. |
---|
Connection | terminals: ...1.5 mm²; Cable sheath: Ø 7...13 mm; Cable gland: M20 X 1.5 |
---|
excess gain graph
|
|
---|
