Ifm | SKU:
IF-OI5003-E

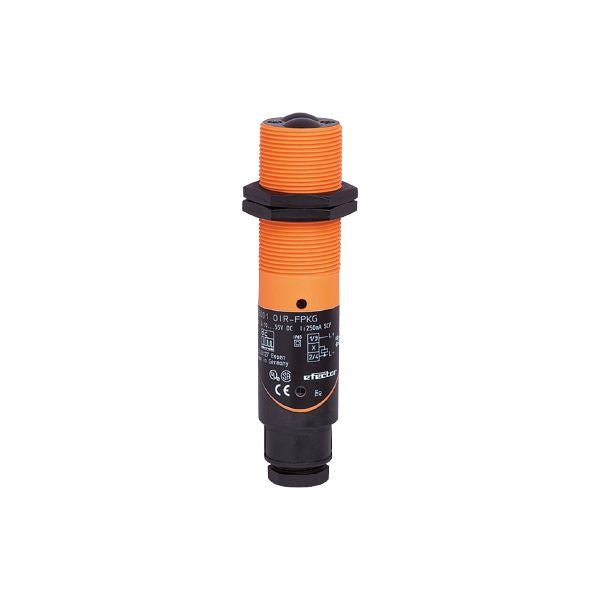

Ifm OI5003 Diffuse Reflection Sensor
$261.11 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm OI5003 Diffuse Reflection Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm OI5003 Diffuse Reflection Sensor
$261.11 USD
Unit price
/
Unavailable
Product characteristics
| Type of light | Infrared light |
|---|---|
| Housing | Threaded type |
Application
| Function principle | Diffuse reflection sensor |
|---|
Electrical data
| Operating voltage [V] | 10...55 DC |
|---|---|
| Current consumption [mA] | 30; ((24 V)) |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | Infrared light |
| Wave length [nm] | 880 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 250 |
| Switching frequency DC [Hz] | 100 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Range [mm] | 3...700; (white paper 200 x 200 mm) |
|---|---|
| Range adjustable | yes |
| Max. light spot diameter [mm] | 122 |
| Light spot dimensions refer to | at maximum range |
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC |
|
||||
|---|---|---|---|---|---|
| MTTF [years] | 659 |
Mechanical data
| Weight [g] | 125.5 | |
|---|---|---|
| Housing | Threaded type | |
| Dimensions [mm] | M30 x 1.5 / L = 125 | |
| Thread designation | M30 x 1.5 | |
| Material | PBT; PPO modified | |
| Lens material |
|
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | terminals: ...1.5 mm²; Cable sheath: Ø 7...13 mm; Cable gland: M20 X 1.5 |
|---|
Diagrams and graphs
|
excess gain graph
|
|
|---|
