Ifm | SKU:
IF-OI0003-E

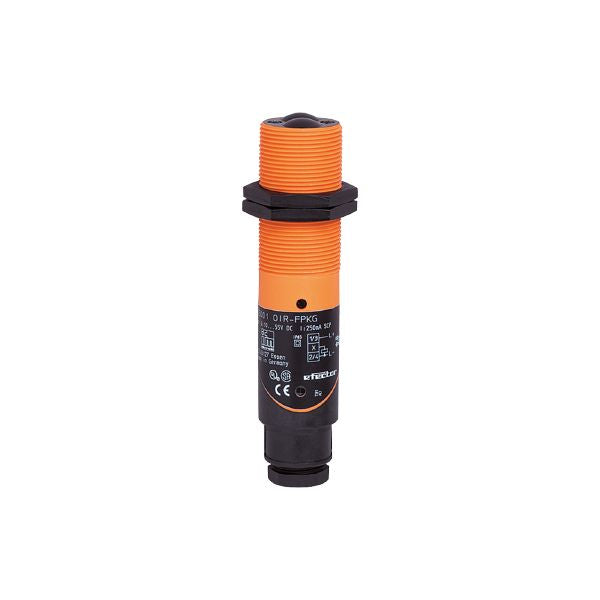

Ifm OI0003 Retro-Reflective Sensor
$302.22 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm OI0003 Retro-Reflective Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm OI0003 Retro-Reflective Sensor
$302.22 USD
Unit price
/
Unavailable
Product characteristics
| Type of light | red light |
|---|---|
| Housing | Threaded type |
Application
| System | polarization filter |
|---|---|
| Function principle | Retro-reflective sensor |
Electrical data
| Operating voltage [V] | 20...250 AC/DC |
|---|---|
| Protection class | II |
| Reverse polarity protection | no |
| Type of light | red light |
| Wave length [nm] | 660 |
Outputs
| Output function | light-on/dark-on mode; (programmable) |
|---|---|
| Max. voltage drop switching output DC [V] | 10.5 |
| Max. voltage drop switching output AC [V] | 10.5 |
| Minimum load current [mA] | 15 |
| Max. leakage current [mA] | 6 |
| Permanent current rating of switching output AC [mA] | 250; (350 (...50 °C)) |
| Permanent current rating of switching output DC [mA] | 250; (350 (...50 °C)) |
| Short-time current rating of switching output [mA] | 2200; (10 ms / 0,5 Hz) |
| Switching frequency AC [Hz] | 25 |
| Switching frequency DC [Hz] | 35 |
| Short-circuit proof | no |
| Overload protection | no |
Monitoring range
| Range referred to prismatic reflector [m] | 0.15...2; (Prismatic reflector Ø 80 E20005) |
|---|---|
| Range adjustable | yes |
| Max. light spot diameter [mm] | 200 |
| Light spot dimensions refer to | at maximum range |
| Polarization filter available | yes |
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC |
|
||
|---|---|---|---|
| MTTF [years] | 310 |
Mechanical data
| Weight [g] | 121 | |
|---|---|---|
| Housing | Threaded type | |
| Dimensions [mm] | M30 x 1.5 / L = 125 | |
| Thread designation | M30 x 1.5 | |
| Material | PBT; PPO modified | |
| Lens material |
|
Displays / operating elements
| Display |
|
|---|
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting |
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | terminals: ...1.5 mm²; Cable sheath: Ø 7...13 mm; Cable gland: M20 X 1.5 |
|---|
Diagrams and graphs
|
excess gain graph
|
|
|---|
