Ifm | SKU:
IF-IX5030-E

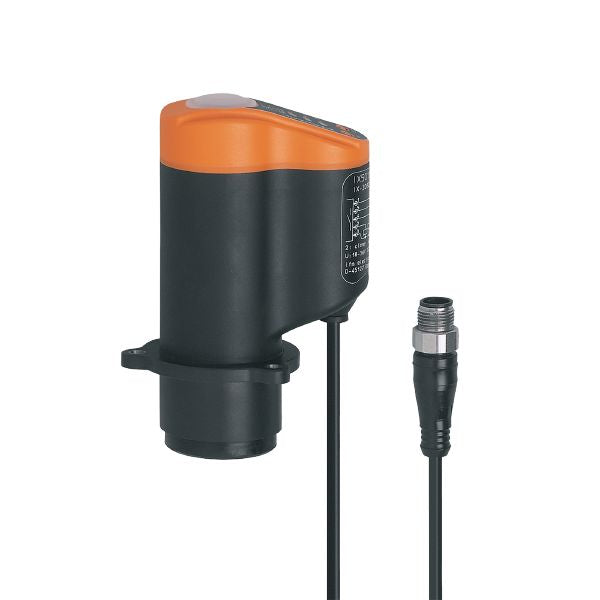

Ifm IX5030 Position Sensor For Rising Stem Valves
$370.56 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm IX5030 Position Sensor For Rising Stem Valves is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm IX5030 Position Sensor For Rising Stem Valves
$370.56 USD
Unit price
/
Unavailable
Product characteristics
| Electrical design | AS-i |
|---|---|
| Dimensions [mm] | 65 x 52 x 110 |
Application
| Application | Position feedback for linear single and double seat valves; Absolute distance measurement; Monitoring of the valve seal |
|---|
Electrical data
| Operating voltage [V] | 26.5...31.6 DC |
|---|---|
| Current consumption [mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time [ms] | 2000 |
Outputs
| Electrical design | AS-i |
|---|
Monitoring range
| Measuring range [mm] | 0...80 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. target speed [m/s] | 1 | ||||||||||
| Resolution of valve stroke [mm] | 0.2 | ||||||||||
| Target |
|
Software / programming
| Parameter setting options | 3 switchpoints to be freely defined within the measuring range |
|---|
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Protection | IP 65; IP 67; (only in conjunction with an installation in the valve head that provides sufficient protection against mechanical damage of the sensor) |
Tests / approvals
| Vibration resistance |
|
||
|---|---|---|---|
| Shock resistance |
|
||
| MTTF [years] | 281 |
AS-i classification
| AS-i version | 3.0 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Extended addressing mode | yes | |||||||||||||||
| AS-i I/O configuration [hex] | 0 | |||||||||||||||
| AS-i ID code [hex] | A.F | |||||||||||||||
| Data bits |
|
Mechanical data
| Weight [g] | 219.5 |
|---|---|
| Type of mounting | 3-hole flange |
| Dimensions [mm] | 65 x 52 x 110 |
| Material | PA; TPE; PP; LCP |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connection | Cable: 0.15 m, PVC; 2 x 0.14 mm² |
|---|---|
| Connection | Connector: 1 x M12; coding: A |
