Ifm | SKU: IF-IV5060-E | Barcode: DOES NOT APPLY

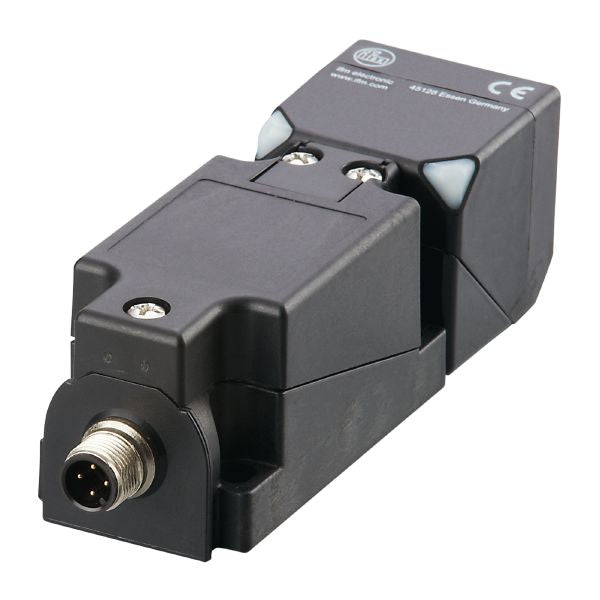

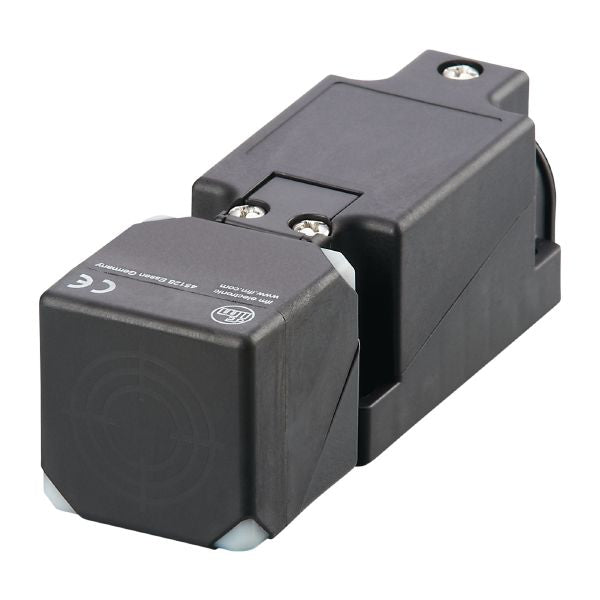

Ifm IV5060 Inductive Sensor

Name: Ifm IV5060 Inductive Sensor
Availability: BackOrder

$206.67 USD

Shipping calculated at checkout.

Ifm IV5060 Inductive Sensor is backordered and will ship as soon as it is back in stock.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Product characteristics

Electrical design	PNP
Output function	normally open
Sensing range [mm]	20
Housing	rectangular
Dimensions [mm]	40 x 40 x 118

Application

System	Magnetic-field immune
Magnetic-field immune	yes

Electrical data

Operating voltage [V]	10...30 DC; (UL - Class 2 source required ; "supply limited voltage / current" acc. to UL)
Current consumption [mA]	20; (24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	3
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	5
Short-circuit protection	yes
Type of short-circuit protection	yes (non-latching)
Overload protection	yes

Monitoring range

Sensing range [mm]	20
Real sensing range Sr [mm]	20 ± 10 %
Operating distance [mm]	0...16.2

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.3
Hysteresis [% of Sr]	1...10
Switch-point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]

-25...85

Note on ambient temperature

for UL application: ...70 °C

Max. height above sea level [m]

2000

Protection

IP 68; IP 69K

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
EN 55011	class B

Vibration resistance

EN 60682-2-6 Fc

20 g (10...3000 Hz) / 50 sweep cycles per frequency; 1 octave per minute in 3 axes

Shock resistance

EN 60068-2-27 Ea

100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes

Continuous shock resistance

EN 60068-2-29 Eb

40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes

Fast temperature changes

EN 60068-2-14 Na

TA = -40 °C; TB = 85 °C; t1 = 30 min; t2 = < 10 s; 50 cycles

MTTF [years]

582.6

UL approval

Ta	0...70 °C
Enclosure type	Type 1
voltage supply	Class 2
File number UL	E174191

Mechanical data

Weight [g]	253
Housing	rectangular
Mounting	flush mountable
Dimensions [mm]	40 x 40 x 118
Material	PA 6.6; diecast zinc epoxy coated; sensing face: PA 6.6; LED window: PA; lower part: PA 6.6; screws: stainless steel

Displays / operating elements

Display

Switching status	1 x LED, yellow
Power	1 x LED, green

Remarks

5 positions of the active zone possible

For use in NFPA 79 Applications only

Pack quantity

1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A
