Ifm | SKU: IF-IV0009-E | Barcode: DOES NOT APPLY

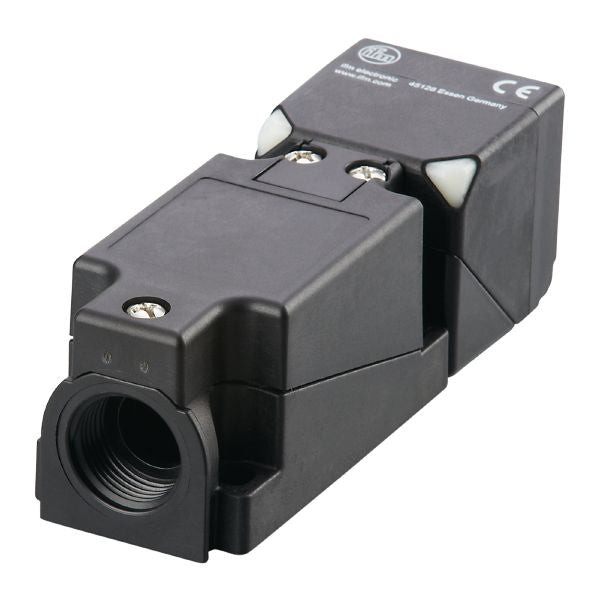

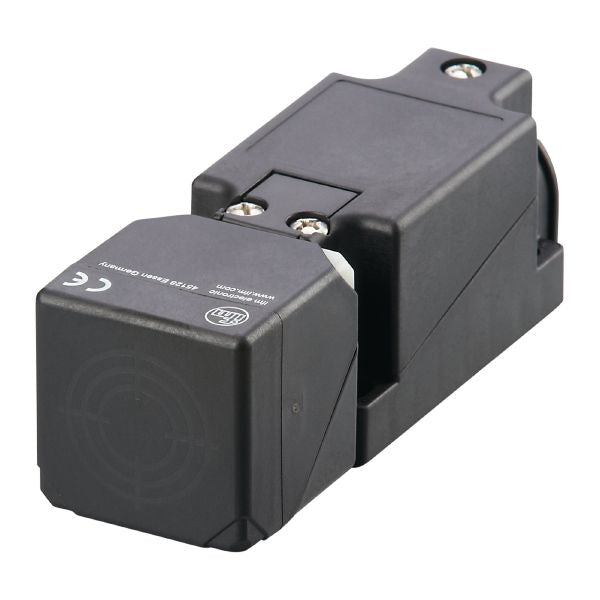

Ifm IV0009 Inductive Sensor

Name: Ifm IV0009 Inductive Sensor
Availability: BackOrder

$307.22 USD

Shipping calculated at checkout.

Ifm IV0009 Inductive Sensor is backordered and will ship as soon as it is back in stock.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Product characteristics

Output function	normally open / closed; (selectable)
Sensing range [mm]	20
Housing	rectangular
Dimensions [mm]	40 x 40 x 118

Electrical data

Operating voltage [V]	24...250 AC / 24...230 DC
Protection class	II
Reverse polarity protection	yes

Outputs

Output function	normally open / closed; (selectable)
Max. voltage drop switching output DC [V]	5
Max. voltage drop switching output AC [V]	8
Minimum load current [mA]	5
Max. leakage current [mA]	1.5
Permanent current rating of switching output AC [mA]	500
Permanent current rating of switching output DC [mA]	500
Switching frequency AC [Hz]	30
Switching frequency DC [Hz]	100
Short-circuit protection	yes
Type of short-circuit protection	yes (non-latching)
Overload protection	yes

Monitoring range

Sensing range [mm]	20
Real sensing range Sr [mm]	20 ± 10 %
Operating distance [mm]	0...16.2

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.4 / copper: 0.3
Hysteresis [% of Sr]	1...10
Switch-point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]

-25...85

Note on ambient temperature

for UL application: ...70 °C

Max. height above sea level [m]

2000

Protection

IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	8 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	15 V
EN 55011	class A

Vibration resistance

EN 60068-2-6 Fc

10 g (10...2000 Hz) / 50 sweep cycles per frequency; 1 octave per minute in 3 axes

Shock resistance

EN 60068-2-27 Ea

30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes

Continuous shock resistance

EN 60068-2-27

40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes

Fast temperature changes

EN 60068-2-14 Na

TA = -40 °C; TB = 85 °C; t1 = 30 min; t2 = < 10 s; 50 cycles

MTTF [years]

272.6

UL approval

Ta	0...70 °C
Enclosure type	Type 1
File number UL	E174191

Notes

For use in NFPA 79 Applications only

Mechanical data

Weight [g]	268
Housing	rectangular
Mounting	flush mountable
Dimensions [mm]	40 x 40 x 118
Material	PA 6.6; diecast zinc epoxy coated; sensing face: PA 6.6; LED window: PA; screws: stainless steel stainless steel (1.4305 / 303)

Displays / operating elements

Display

Switching status	1 x LED, yellow
Power	1 x LED, green

Electrical connection

Required protection	≤ 3 A und ≥ 300 V AC/DC

Remarks

5 positions of the active zone possible

cable gland (E11270) to be ordered separately

Pack quantity

1 pcs.

Electrical connection

Connection	terminals: ...2.5 mm²; Cable gland: M20 X 1.5
