Ifm | SKU:
IF-IT5039-E

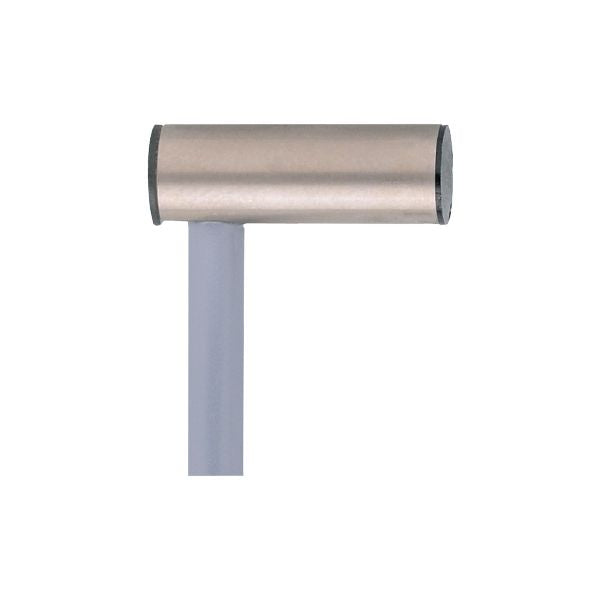

Ifm IT5039 Inductive Sensor
$137.78 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm IT5039 Inductive Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm IT5039 Inductive Sensor
$137.78 USD
Unit price
/
Unavailable
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Sensing range [mm] | 2 |
| Housing | tubular |
| Dimensions [mm] | Ø 6.5 / L = 19 |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | 20; (24 V) |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | no |
Monitoring range
| Sensing range [mm] | 2 |
|---|---|
| Real sensing range Sr [mm] | 2 ± 10 % |
| Operating distance [mm] | 0...1.6 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis [% of Sr] | < 15 |
| Switch-point drift [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||||||
|---|---|---|---|---|---|---|---|
| MTTF [years] | 1045 | ||||||
| UL approval |
|
Mechanical data
| Weight [g] | 57 |
|---|---|
| Housing | tubular |
| Mounting | flush mountable |
| Dimensions [mm] | Ø 6.5 / L = 19 |
| Material | housing: stainless steel; sensing face: PBT |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 2 m, PVC; 3 x 0.14 mm² |
|---|
