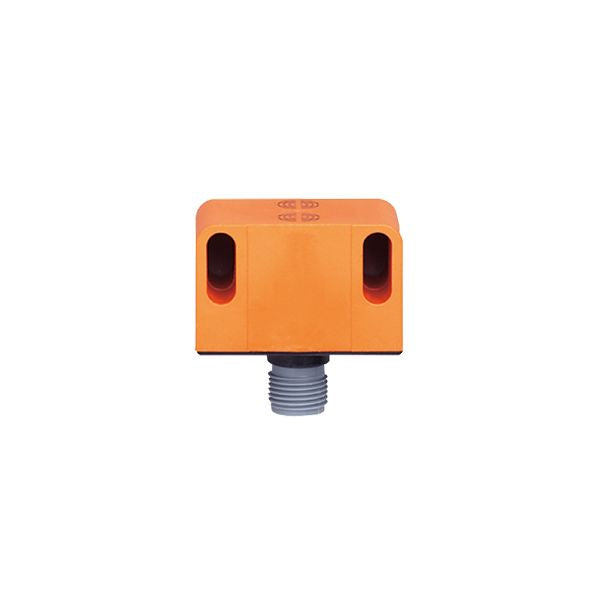

Ifm IN5224 Dual Inductive Sensor For Valve Actuators
| Electrical design | PNP/NPN |
|---|---|
| Output function | 2 x normally open |
| Sensing range [mm] | 4 |
| Housing | rectangular |
| Dimensions [mm] | 40 x 26 x 26 |
| System | gold-plated contacts |
|---|
| Operating voltage [V] | 10...36 DC |
|---|---|
| Protection class | II |
| Reverse polarity protection | yes |
| Electrical design | PNP/NPN |
|---|---|
| Output function | 2 x normally open |
| Max. voltage drop switching output DC [V] | 4 |
| Minimum load current [mA] | 4 |
| Max. leakage current [mA] | 2 x 0.7 |
| Permanent current rating of switching output DC [mA] | 250 |
| Switching frequency DC [Hz] | 1300 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Sensing range [mm] | 4 |
|---|---|
| Real sensing range Sr [mm] | 4 ± 10 % |
| Operating distance [mm] | 0...3.25 |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis [% of Sr] | 1...15 |
| Switch-point drift [% of Sr] | -10...10 |
| Ambient temperature [°C] | -20...80 |
|---|---|
| Protection | IP 67 |
| EMC |
|
||||
|---|---|---|---|---|---|
| MTTF [years] | 1229 |
| Weight [g] | 40.5 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions [mm] | 40 x 26 x 26 |
| Material | PBT; PC |
| Tightening torque [Nm] | 0.6...1.5; (knurled nut) |
| Display |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connector: 1 x M12; coding: A; Contacts: gold-plated |
