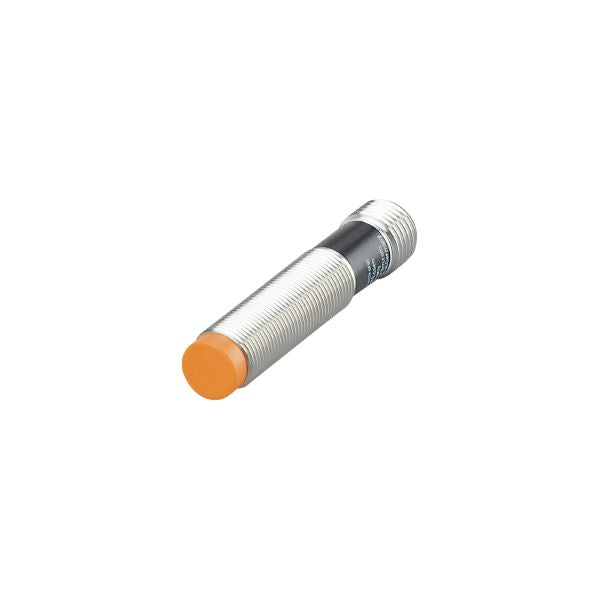

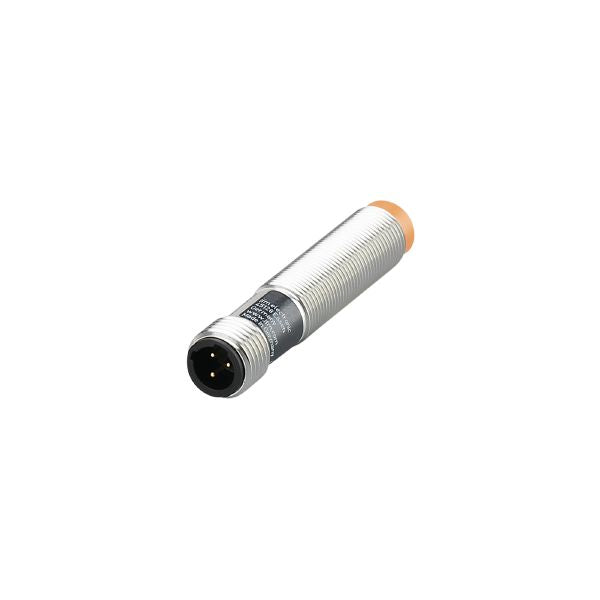

Ifm IF0312 Inductive Sensor

Electrical Data:

• Frequency AC: 47...63 Hz
• Operating Voltage: 20...140 V AC / 10...140 V DC
• Protection Class: I
• Reverse Polarity Protection: No

Outputs:

• Max. Voltage Drop (DC / AC): 5 V
• Min. Load Current: 5 mA
• Max. Leakage Current: 0.8 mA
• Permanent Current Rating (AC / DC): 200 mA
• Short-Time Current Rating: 900 mA (20 ms / 0.5 Hz)
• Switching Frequency AC: 25 Hz
• Switching Frequency DC: 90 Hz
• Short-Circuit Proof: No
• Overload Protection: No

Monitoring Range:

• Operating Distance: 0...5.7 mm
• Increased Sensing Range: Yes

Accuracy / Deviations:

• Correction Factor: Steel: 1, Stainless Steel: 0.7, Brass: 0.4, Aluminum: 0.3, Copper: 0.2
• Hysteresis: 3...15%

Operating Conditions:

• Ambient Temp: -25...70°C
• Protection: IP 67

Tests / Approvals:

• EMC: EN 60947-5-2, EN 55011 Class B
• MTTF: 1684 years
• UL Approval: Ta 0...40°C, Type 1 Enclosure, Hazardous Voltage, UL File E174191

Mechanical Data:

• Weight: 30.1 g
• Housing: Threaded type (M12 x 1)
• Material: Brass white bronze coated, PBT

Displays / Operating Elements:

• Switching Status: 1 x Red LED

Electrical Connection:

• Required Protection: Miniature fuse (IEC60127-2, ≤ 2 A, fast acting)

Accessories:

• Items Supplied: 2 x Lock nuts

Remarks:

• Check unit for reliable function after short circuit
• Pack Quantity: 1 pcs

Electrical Connection - Plug:

• Connector: 1 x 1/2", C coding
