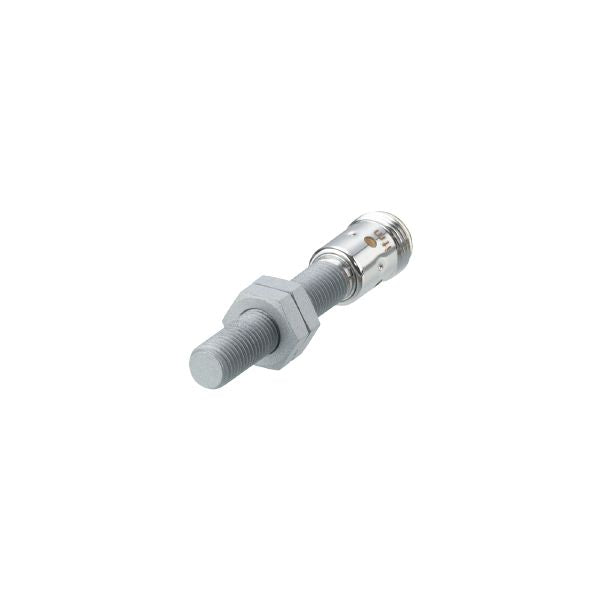

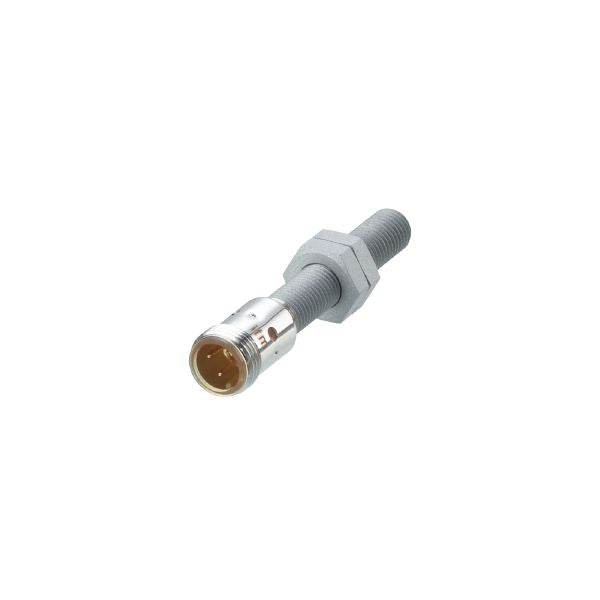

Ifm IER201 Inductive Full-Metal Sensor
| Electrical design | NPN |
|---|---|
| Output function | normally open |
| Sensing range [mm] | 2 |
| Housing | Threaded type |
| Dimensions [mm] | M8 x 1 / L = 60 |
| System | gold-plated contacts; Increased sensing range; Full-metal housing | |
|---|---|---|
| Application | Inductive sensors for welding applications | |
| Pressure rating [bar] | 50 | |
| Note on pressure rating |
|
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 10 |
| Protection class | III |
| Reverse polarity protection | yes |
| Electrical design | NPN |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 100 |
| Short-circuit protection | yes |
| Overload protection | yes |
| Sensing range [mm] | 2 |
|---|---|
| Real sensing range Sr [mm] | 2 ± 10 % |
| Operating distance [mm] | 0...1.62 |
| Increased sensing range | yes |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.7 / aluminum: 0.6 / copper: 0.5 |
|---|---|
| Hysteresis [% of Sr] | 1...20 |
| Switch-point drift [% of Sr] | -10...10 |
| Ambient temperature [°C] | 0...85 |
|---|---|
| Protection | IP 67; IP 68 |
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Impact resistance |
|
||||||||||
| MTTF [years] | 1389 | ||||||||||
| UL approval |
|
| Weight [g] | 21.1 |
|---|---|
| Housing | Threaded type |
| Mounting | flush mountable |
| Dimensions [mm] | M8 x 1 / L = 60 |
| Thread designation | M8 x 1 |
| Material | housing: stainless steel (1.4404 / 316L) weld coated; sensing face: stainless steel (1.4404 / 316L) weld coated; LED window: PEI; lock nuts: stainless steel (1.4404 / 316L) weld coated |
| Tightening torque [Nm] | < 5 |
| Full-metal housing | yes |
| Display |
|
|---|
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
|
